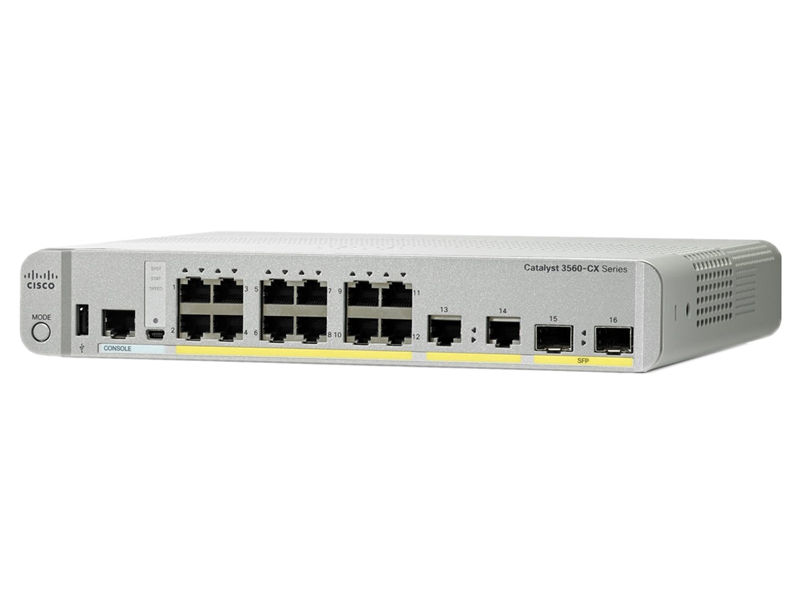

WS-C3560CX-12TC-S, Cisco Catalyst 3560-CX Switch, 12xGE/4xUplink/Data IP Base

Brand: Cisco · SKU: WS-C3560CX-12TC-S · MPN: WS-C3560CX-12TC-S · Category: Networking

WS-C3560CX-12TC-S, Cisco Catalyst 3560-CX Switch, 12xGE/4xUplink/Data IP Base
$1,023.04
In Stock • 10 units

3560-CX Switch 12 GE, uplinks: 2 x 1G SFP and 2 x 1G copper, IP Base

View Switches Products

Specifications

ModelWS-C3560CX-12TC-S
TelcoCommon Language Equipment Identifier (CLEI) code
Weight5.05 kg
Uplinks2 x 1G copper, 2 x 1G SFP
VLAN IDs4000
Max VLANs1023
StandardsIEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS Prioritization, IEEE 802.1Q VLAN, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1AB (LLDP), IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah (100BASE-X single/multimode fiber only), IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports, IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X, 100BASE-BX (SFP), 100BASE-FX (SFP), 100BASE-LX (SFP), 1000BASE-BX (SFP), 1000BASE-SX (SFP), 1000BASE-LX/LH (SFP), 1000BASE-ZX (SFP), 1000BASE-CWDM SFP (1470/1490/1510/1530/1550/1570/1590/1610 nm), RMON I and II, SNMPv1, SNMPv2c, SNMPv3
ManagementBRIDGE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CDP-MIB, CISCO-CLUSTER-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ENVMON-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-MIB, CISCO-IP-STAT-MIB, CISCO-LAG-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MEMORY-POOL-MIB, CISCO-PAGP-MIB, CISCO-PING-MIB, CISCO-POE-EXTENSIONS-MIB, CISCO-PORT-QOS-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-PRODUCTS-MIB, CISCO-PROCESS-MIB, CISCO-RTTMON-MIB, CISCO-SMI-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TC-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB, ENTITY-MIB, ETHERLIKE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, IF-MIB, INET-ADDRESS-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-FLASH-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, RFC1213-MIB, RMON-MIB, RMON2-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-TARGET-MIB, SNMPv2-MIB, TCP-MIB, UDP-MIB, ePM MIB
Memory DRAM512MB
Flash Memory128MB
Jumbo Frames9198 bytes
EnvironmentalReduction of Hazardous Substances (RoHS) 6
Ethernet Ports12 x 10/100/1000 Gigabit Ethernet
RFC ComplianceRFC 768 (UDP), RFC 783 (TFTP), RFC 791 (IP), RFC 792 (ICMP), RFC 793 (TCP), RFC 826 (ARP), RFC 854 (Telnet), RFC 951 (Bootstrap Protocol), RFC 1542 (BOOTP Extensions), RFC 959 (FTP), RFC 1058 (RIP Routing), RFC 1112 (IP Multicast and IGMP), RFC 1157 (SNMPv1), RFC 1166 (IP Addresses), RFC 1253 (OSPF Routing), RFC 1256 (ICMP Router Discovery), RFC 1305 (NTP), RFC 1492 (TACACS+), RFC 1493 (Bridge MIB), RFC 1583 (OSPFv2), RFC 1643 (Ethernet Interface MIB), RFC 1723 (RIPv2 Routing), RFC 1757 (RMON), RFC 1812 (IP Routing), RFC 1901 (SNMPv2C), RFC 1902-1907 (SNMPv2), RFC 1981 (MTU Path Discovery IPv6), FRC 2068 (HTTP), RFC 2080 (RIP for IPv6), RFC 2131 (DHCP), RFC 2138 (RADIUS), RFC 2233 (IF MIB), RFC 2236 (IP Multicast), RFC 2328 (OSPFv2), RFC 2273-2275 (SNMPv3), RFC 2373 (IPv6 Aggregatable Addrs), RFC 2453 (RIPv2 Routing), RFC 2460 (IPv6 protocol), RFC 2461 (IPv6 Neighbor Discovery), RFC 2462 (IPv6 Autoconfiguration), RFC 2463 (ICMP IPv6), RFC 2474 (DiffServ Precedence), RFC 2597 (Assured Forwarding), RFC 2598 (Expedited Forwarding), RFC 2571 (SNMP Management), RFC 2740 (OSPF for IPv6), RFC 3046 (DHCP Relay Agent Information Option), RFC 3101, 1587 (NSSAs), RFC 3376 (IGMPv3), RFC 3580 (802.1x RADIUS)
Powering OptionInternal power supply
Default SoftwareIP Base (IP Services with RTU License)
PoE Output PortsNot Available
Safety StandardsUL 60950-1, CAN/CSA 22.2 No.60950-1, EN 60950-1, IEC 60950-1, CE Marking, GB 4943, IEC 60825
Storage AltitudeUp to 4000 m (up to 15,000 ft)
Operating AltitudeUp to 3048 m (up to 10,000 ft)
Available PoE PowerNot Available (0W)
Forwarding Bandwidth16Gbps
Dimensions (H x W x D)1.75 x 10.6 x 8.4in (4.44 x 26.9 x 21.3cm)
Storage Relative Humidity5% to 95% noncondensing
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this WS-C3560CX-12TC-S, Cisco Catalyst 3560-CX Switch, 12xGE/4xUplink/Data IP Base (WS-C3560CX-12TC-S) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This WS-C3560CX-12TC-S, Cisco Catalyst 3560-CX Switch, 12xGE/4xUplink/Data IP Base includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the WS-C3560CX-12TC-S, Cisco Catalyst 3560-CX Switch, 12xGE/4xUplink/Data IP Base compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WS-C3560CX-12TC-S.
