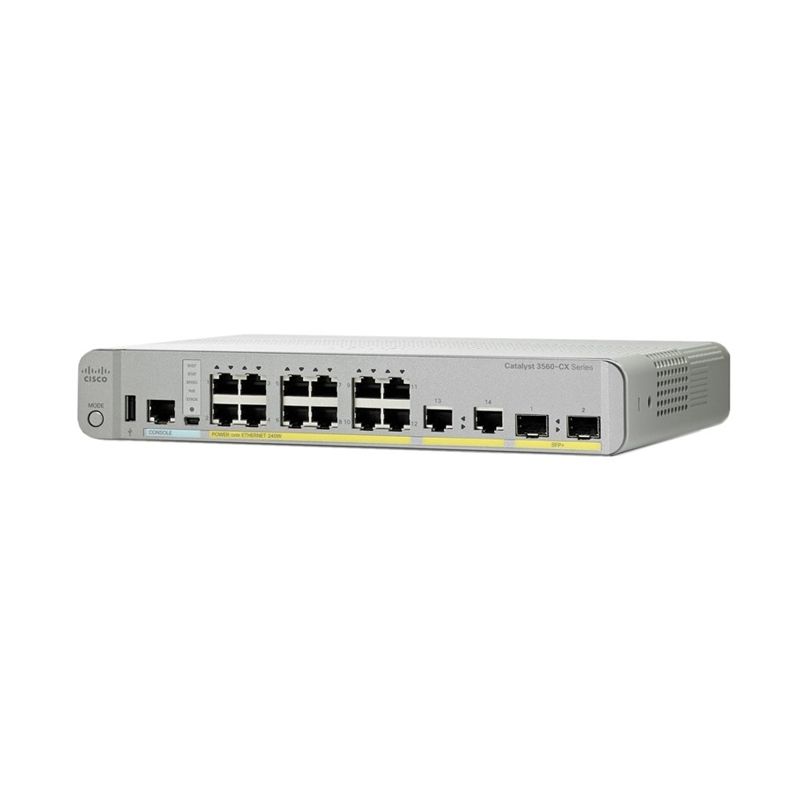

WS-C3560CX-12PD-S, Cisco Catalyst 3560-CX Switch, 12xGE PoE/2xSFP+/Layer 3

Brand: Cisco · SKU: WS-C3560CX-12PD-S · MPN: WS-C3560CX-12PD-S · Category: Networking

WS-C3560CX-12PD-S, Cisco Catalyst 3560-CX Switch, 12xGE PoE/2xSFP+/Layer 3
$1,576.88
In Stock • 10 units

3560-CX Switch 12 GE PoE+, uplinks: 2 x 1G SFP and 2 x 1G copper, IP Base

View Transceivers & Optics Products

Specifications

MTBF528,480 hours
ModelWS-C3560CX-12PD-S
TelcoCommon Language Equipment Identifier (CLEI) code
Weight5.05 kg
Uplinks2 × 1G copper, 2 × 10G SFP+
VLAN IDs4000
Max VLANs1023
StandardsIEEE 802.1D Spanning Tree Protocol; IEEE 802.1p CoS prioritization; IEEE 802.1Q VLAN; IEEE 802.1s; IEEE 802.1w; IEEE 802.1X; IEEE 802.1AB (LLDP); IEEE 802.3ad; IEEE 802.3af; IEEE 802.3ah (100BASE-X single/multimode fiber only); IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T; IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-X; 100BASE-BX (SFP); 100BASE-FX (SFP); 100BASE-LX (SFP); 1000BASE-BX (SFP); 1000BASE-SX (SFP); 1000BASE-LX/LH (SFP); 1000BASE-ZX (SFP); 1000BASE-CWDM SFP 1470/1490/1510/1530/1550/1570/1590/1610 nm; RMON I and II; SNMPv1, SNMPv2c, SNMPv3
Flash Memory128MB
Jumbo Frames9198 bytes
EnvironmentalReduction of Hazardous Substances (RoHS) 6
Memory (DRAM)512MB
Ethernet Ports12 × 10/100/1000 Gigabit Ethernet
RFC ComplianceRFC 768 (UDP); RFC 783 (TFTP); RFC 791 (IP); RFC 792 (ICMP); RFC 793 (TCP); RFC 826 (ARP); RFC 854 (Telnet); RFC 951 (Bootstrap Protocol); RFC 1542 (BOOTP Extensions / Bootstrap Protocol); RFC 959 (FTP); RFC 1058 (RIP Routing); RFC 1112 (IP Multicast and IGMP); RFC 1157 (SNMPv1); RFC 1166 (IP Addresses); RFC 1253 (OSPF Routing); RFC 1256 (ICMP Router Discovery); RFC 1305 (NTP); RFC 1492 (TACACS+); RFC 1493 (Bridge MIB); RFC 1583 (OSPFv2); RFC 1643 (Ethernet Interface MIB); RFC 1723 (RIPv2 Routing); RFC 1757 (RMON); RFC 1812 (IP Routing); RFC 1901 (SNMPv2c); RFC 1902–1907 (SNMPv2); RFC 1981 (MTU Path Discovery IPv6); FRC 2068 (HTTP); RFC 2080 (RIP for IPv6); RFC 2131 (DHCP); RFC 2138 (RADIUS); RFC 2233 (IF MIB); RFC 2236 (IP Multicast); RFC 2273–2275 (SNMPv3); RFC 2328 (OSPFv2); RFC 2373 (IPv6 Aggregatable Addresses); RFC 2453 (RIPv2 Routing); RFC 2460 (IPv6 protocol); RFC 2461 (IPv6 Neighbor Discovery); RFC 2462 (IPv6 Autoconfiguration); RFC 2463 (ICMP IPv6); RFC 2474 (DiffServ Precedence); RFC 2571 (SNMP Management); RFC 2597 (Assured Forwarding); RFC 2598 (Expedited Forwarding); RFC 2740 (OSPF for IPv6); RFC 3046 (DHCP Relay Agent Information Option); RFC 3101, 1587 (NSSAs); RFC 3376 (IGMPv3); RFC 3580 (802.1X RADIUS)
Management MIBsBRIDGE-MIB; CISCO-CABLE-DIAG-MIB; CISCO-CDP-MIB; CISCO-CLUSTER-MIB; CISCO-CONFIG-COPY-MIB; CISCO-CONFIG-MAN-MIB; CISCO-DHCP-SNOOPING-MIB; CISCO-ENTITY-VENDORTYPE-OID-MIB; CISCO-ENVMON-MIB; CISCO-ERR-DISABLE-MIB; CISCO-FLASH-MIB; CISCO-FTP-CLIENT-MIB; CISCO-IGMP-FILTER-MIB; CISCO-IMAGE-MIB; CISCO-IP-STAT-MIB; CISCO-LAG-MIB; CISCO-MAC-NOTIFICATION-MIB; CISCO-MEMORY-POOL-MIB; CISCO-PAGP-MIB; CISCO-PING-MIB; CISCO-POE-EXTENSIONS-MIB; CISCO-PORT-QOS-MIB; CISCO-PORT-SECURITY-MIB; CISCO-PORT-STORM-CONTROL-MIB; CISCO-PRODUCTS-MIB; CISCO-PROCESS-MIB; CISCO-RTTMON-MIB; CISCO-SMI-MIB; CISCO-STP-EXTENSIONS-MIB; CISCO-SYSLOG-MIB; CISCO-TC-MIB; CISCO-TCP-MIB; CISCO-UDLDP-MIB; CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB; CISCO-VLAN-MEMBERSHIP-MIB; CISCO-VTP-MIB; ENTITY-MIB; ETHERLIKE-MIB; IEEE8021-PAE-MIB; IEEE8023-LAG-MIB; IF-MIB; INET-ADDRESS-MIB; OLD-CISCO-CHASSIS-MIB; OLD-CISCO-FLASH-MIB; OLD-CISCO-INTERFACES-MIB; OLD-CISCO-IP-MIB; OLD-CISCO-SYS-MIB; OLD-CISCO-TCP-MIB; OLD-CISCO-TS-MIB; RFC1213-MIB; RMON-MIB; RMON2-MIB; SNMP-FRAMEWORK-MIB; SNMP-MPD-MIB; SNMP-NOTIFICATION-MIB; SNMP-TARGET-MIB; SNMPv2-MIB; TCP-MIB; UDP-MIB; ePM MIB
Powering OptionInternal power supply
Default SoftwareIP Base (IP Services with RTU License)
PoE Output Ports12 PoE+
Safety StandardsUL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60950-1; IEC 60950-1; CE Marking; GB 4943; IEC 60825
Storage AltitudeUp to 4000 m (up to 15,000 ft)
Operating AltitudeUp to 3048 m (up to 10,000 ft)
Available PoE Power240W
Forwarding Bandwidth34Gbps
Available PoE Power (W)240W
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this WS-C3560CX-12PD-S, Cisco Catalyst 3560-CX Switch, 12xGE PoE/2xSFP+/Layer 3 (WS-C3560CX-12PD-S) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This WS-C3560CX-12PD-S, Cisco Catalyst 3560-CX Switch, 12xGE PoE/2xSFP+/Layer 3 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the WS-C3560CX-12PD-S, Cisco Catalyst 3560-CX Switch, 12xGE PoE/2xSFP+/Layer 3 compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WS-C3560CX-12PD-S.
