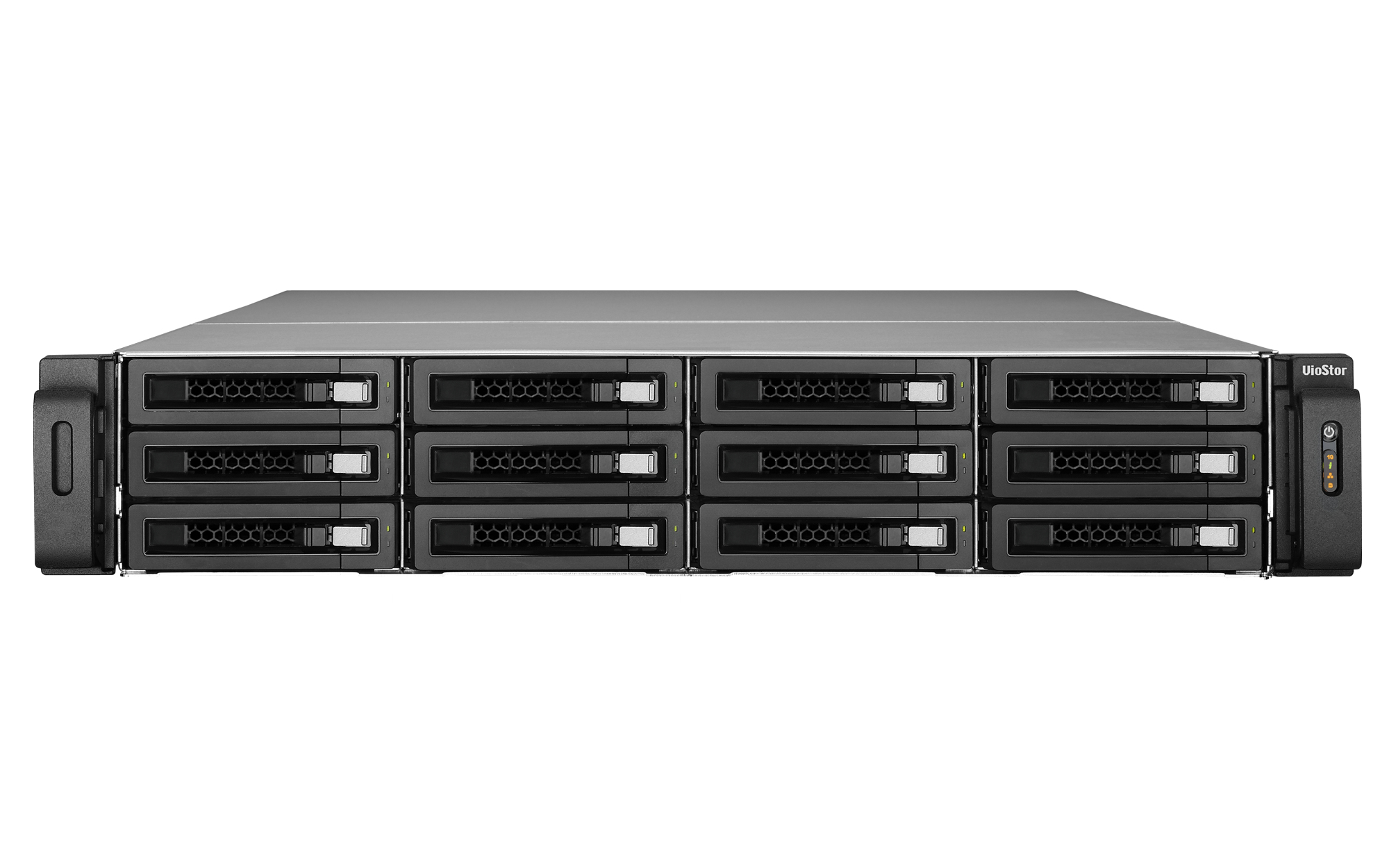

QNAP VS-12164U-RP PRO+ network video recorder
Brand: QNAP · SKU: VS-12164U-RP PRO+ · MPN: VS-12164U-RP PRO+ · Category: Security
QNAP VS-12164U-RP PRO+, DDR3, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Finnish, French,..., 2 fan(s), 48 TB, Serial ATA II, Serial ATA III, 3.5"
Specifications
| Depth | 520 mm |
|---|---|
| Width | 439 mm |
| Height | 88 mm |
| Weight | 15.9 kg |
| HDD size | 3.5" |
| HDMI output | Yes |
| RAID levels | 0, 1, 5, 6, JBOD |
| Power supply | 600 W |
| RAID support | Yes |
| Reset button | Yes |
| Certification | CE, FCC, VCCI, BSMI, LVD |
| HDD interface | Serial ATA II, Serial ATA III |
| On/off switch | Yes |
| LED indicators | eSATA, HDD, LAN, Status |
| Number of fans | 2 fan(s) |
| Package weight | 25.6 kg |
| Cables included | AC, LAN (RJ-45) |
| Processor cores | 4 |
| AC input voltage | 100-240 V |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Finnish, French, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish |
| AC input frequency | 50 - 60 Hz |
| Processor frequency | 3.7 GHz |
| Internal memory type | DDR3 |
| USB 2.0 ports quantity | 4 |
| Warranty | 3-Year Warranty |
| Weight | 15.9 kg |
| Dimensions | 439 mm x 520 mm x 88 mm |
Product Description
The QNAP VS-12164U-RP Pro+ VioStor NVR (Network Video Recorder) is the high-end 2U chassis network surveillance server which supports high quality real-time video/audio monitoring, megapixel recording (up to 10-megapixel), and playback of multiple IP cameras. The VioStor VS-12164U-RP Pro+ can simultaneously handle inputs from up to 64 megapixel cameras. Featuring a powerful Quad-core Intel® Core™ i5 processor and 8 GB of DDR3 memory, this enterprise-grade NVR delivers high performance with throughput of 450 Mbps for recording and smooth playback of multiple megapixel cameras. Moreover, the HDMI output and hardware decoder of VS-12164U-RP Pro+ provide the ability to deliver up to 300fps Full HD local display. In addition, when installing with the currently largest 4TB hard drives in the market, the VioStor VS-12164U-RP Pro+ supports up to 48 TB storage capacity, which makes it proficient for continuous recording of high-resolution video. The Linux-based VioStor VS-12164U-RP Pro+ enables quick and easy deployment of multiple NVRs. It is designed with the user in mind, offering simple and intuitive setup in six steps. Coupled with powerful performance and stability, this solution is tailor-made for enterprise surveillance needs. Complete Recording Functions All-in-one Recording Functions - Continuous/manual/scheduled recording * - Alarm recording (by multiple events), alarm recording schedule * - Pre-alarm and post-alarm recording - Audio recording - Auto snapshots * Different recording schedules for the IP cameras. Megapixel Recordings The VioStor NVR supports megapixel recordings (up to 10-megapixel) from various IP cameras. Multi-stream support Administrators now can flexibly define multiple video streams (supported by specific camera models) according to bandwidth resources and number of live-view channels. The adjustable video stream setting helps improve the displaying quality of live-view and well manage the bandwidth resources based on different usage requirements. Smart Recording The VioStor NVR automatically selects video streams from IP cameras for different recording scenarios. In normal situation, video recording maintains at lower quality resolution. While the alarm event happens, video recording switches to high quality resolution to capture more details. In other words, smart recording effectively avoids the constant storage consumption at all time, but achieves greater storage efficiency and boost recording quality when alarm events happen. (Please visit here for camera compatibility list.) Real-time Digital Watermarking The VioStor NVR supports real-time digital watermarking to protect the videos and snapshots from unauthorized modifications. The Watermark Proof utility is provided to verify whether or not the videos and snapshots are original. Network Surveillance with Full HD 1080P Local Display Diversified Modes for Local Monitoring - 1, 4, 6, 8, 9, 10, 12, or 16-channel display modes - Sequential display mode High Resolution Local Display The VioStor NVR provides an HDMI port which can be connected to an HDMI monitor or TV for doing monitoring in the full HD (1920 x 1080) resolution. Convenient Control of PTZ and Speed Dome Cameras The PTZ (Pan/Tilt/Zoom) cameras can be adjusted directly and the preset positions of the IP cameras can be viewed on the local display interface of the VioStor NVR. Digital Zoom Digital zoom (in/out) of the video image is supported on the monitoring and playback interfaces of the NVR. On-screen Event Alert When an event occurs, an alert icon will be shown instantly on the local monitoring page. The alert details can be viewed by clicking the alert icon Video Search The VioStor NVR supports convenient video search by date and time on the local playback interface. Local Video Playbacks on HDMI Monitors or TVs The VioStor NVR supports direct video playbacks on HDMI monitors or TVs. Quick System Setup The VioStor NVR can be set up in simple steps on the local display interface. Network Surveillance by Web-based Interface to Perform Real-time Remote Monitoring Cross-platform Support Cross-platform Support Use QNAP Surveillance Client for Windows and Mac to watch the live view and play back the recording files on the VioStor NVR. Cross-browser Compatibility On the Windows PC, you can also use Google Chrome, Microsoft Internet Explorer, or Mozilla Firefox to enjoy our surveillance features. Multi-server Monitoring Connect to one VioStor NVR and monitor up to 128 channels from other VioStor NVR servers over the LAN or WAN via an IE browser. Note: The feature is supported by Google Chrome, Microsoft Internet Explorer, and Mozilla Firefox Diversified Remote Monitoring Modes - 1, 4, 6, 8, 9, 10, 12, 16, 20, 25, 36, 42, 64-channel, and sequential display modes - Dual-display mode Smart Control of PTZ & Speed Dome Cameras The PTZ (Pan/Tilt/Zoom) cameras can be directly adjusted by the web user interface of the VioStor NVR. Preset Position Control and Auto Cruising The prese
Key Features
QNAP VS-12164U-RP PRO+. Internal memory type: DDR3, Languages support: Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Finnish, French,..., Number of fans: 2 fan(s). Maximum storage capacity: 48 TB, HDD interface: Serial ATA II, Serial ATA III, HDD size: 3.5". LED indicators: eSATA, HDD, LAN, Status, Certification: CE, FCC, VCCI, BSMI, LVD. Processor frequency: 3.7 GHz. Power consumption (typical): 167 W, AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz
