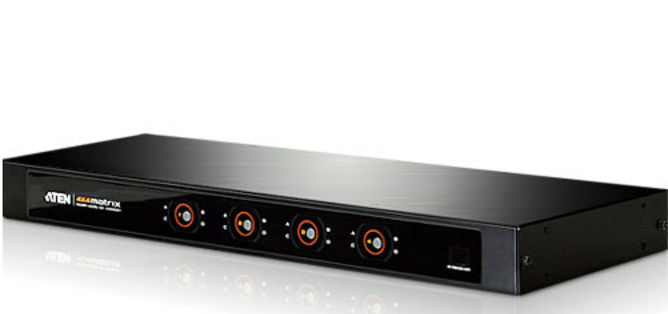

ATEN VM0404H video switch HDMI
Brand: ATEN · SKU: VM0404H · MPN: VM0404H · Category: Networking
ATEN VM0404H, HDMI, 1.3b, Metal, Black, 60 Hz, 20 m. ATEN VM0404H video switch HDMI (part number VM0404H) is an enterprise switches product available from Server Tech Central. Key specifications include hdcp Yes, weight 1.86 kg, full hd Yes, hdmi in 4, material Metal, dc-in jack Yes, hdmi version 1.3b, rs-232 ports 1. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| HDCP | Yes |
|---|---|
| Weight | 1.86 kg |
| Full HD | Yes |
| HDMI in | 4 |
| Material | Metal |
| DC-in jack | Yes |
| HDMI version | 1.3b |
| RS-232 ports | 1 |
| Rack mounting | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Video port type | HDMI |
| Dimensions (WxDxH) | 154 x 432 x 44 mm |
| Power requirements | 5.3 VDC |
| AC adapter included | Yes |
| HDMI ports quantity | 8 |
| Maximum refresh rate | 60 Hz |
| Supported video modes | 1080i, 1080p, 480p, 720p |
| Number of HDMI outputs | 4 |
| Compliance certificates | RoHS |
| Remote control included | Yes |
| Maximum operating distance | 20 m |
| Power consumption (typical) | 9 W |
| Supported graphics resolutions | 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Warranty | 3-Year Warranty |
| Weight | 1.86 kg |
Product Description
Features - Connects any of four HDMI sources to any of four HDMI displays - Toggle between HDMI sources and displays using remote control or front panel pushbuttons - Cascade via other VM0404Hs to provide up to 64 HDMI sources/displas for digital signage systems - Superior video quality – HDTV resolutions of 480p, 720p,1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), and WUXGA (1920 x 1200) - HDCP 1.1 compatible - Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control - HDMI (3D, Deep Color) - Supports Dolby True HD and DTS HD Master Audio - Up to 60 Hz refresh rate - Long-distance transmission – up to 20 m (24 AWG) - Built-in bi-directional RS-232 serial remote port for high-end system control - Power On Detection – if one HDMI source is powered off, the VM0404H will automatically switch to the next powered-on source - DDC compatible - Signaling rates up to 2.25 Gbits in support of 1080p display - All-metal casing - Easy and affordable way to add four HDMI inputs to your multiscreen home theater system - Rack Mountable Package Contents - 1x VM0404H 4x4 HDMI Matrix Switch - 1x IR Remote Control Unit - 1x 0AD6-1605-24EG Power Adapter - 1x Rack Mount Kit - 1x User Instructions
Key Features
ATEN VM0404H. Video port type: HDMI, HDMI version: 1.3b. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. Power consumption (typical): 9 W, Power requirements: 5.3 VDC. Weight: 1.86 kg, Dimensions (WxDxH): 154 x 432 x 44 mm
