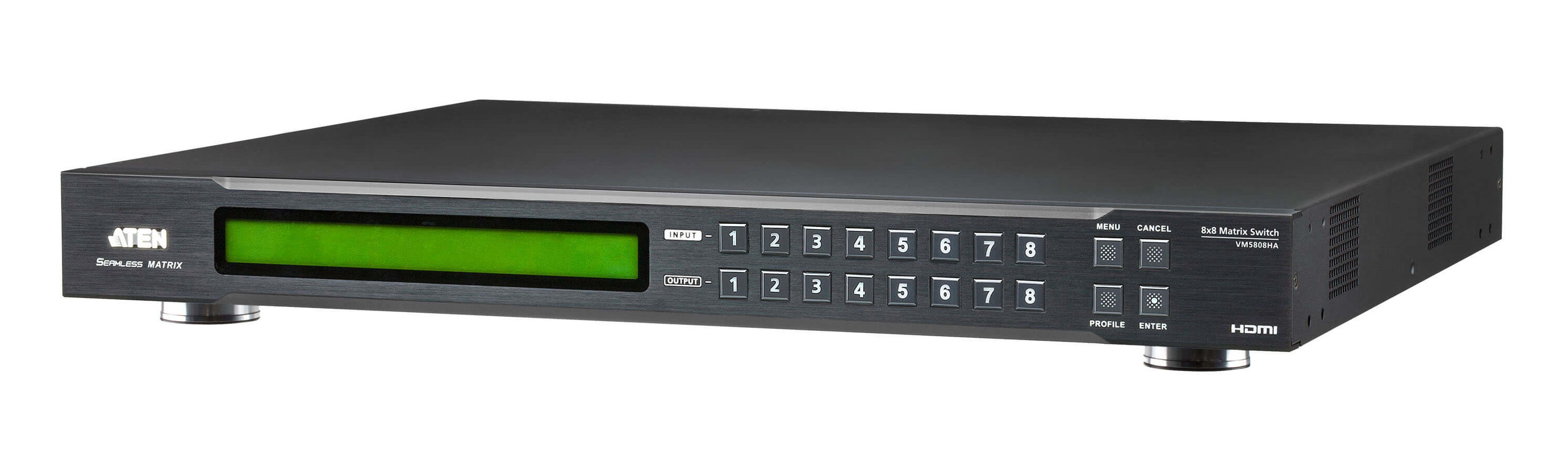

ATEN VM5808HA matrix switcher AV matrix switcher 58.1 W
Brand: ATEN · SKU: ATN-VM5808HA · MPN: VM5808HA · Category: Networking
ATEN VM5808HA, AV matrix switcher, 6.75 Gbit/s, 225 MHz, 1920 x 1080 pixels, 640 x 480 @ 60/72/75 Hz 1280 x 720p 60 Hz (16:9) 800 x 600 @ 56/60/72/75 Hz 1920 x 1080i 60 Hz..., Black
Specifications
| 3D | Yes |
|---|---|
| HDCP | Yes |
| Depth | 432.4 mm |
| Width | 378.2 mm |
| Height | 44 mm |
| Manual | Yes |
| Weight | 5.54 kg |
| HDCP version | 1.4 |
| Product type | AV matrix switcher |
| RS-232 ports | 1 |
| Input current | 1 A |
| On/off switch | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Housing colour | Black |
| Rack mount kit | Yes |
| Audio (L/R) out | 1 |
| Cables included | AC |
| AC input voltage | 100 - 240 V |
| Built-in display | No |
| Heat dissipation | 265 BTU/h |
| Housing material | Metal |
| Country of origin | Taiwan |
| AC input frequency | 50 - 60 Hz |
| Warranty | 3-Year Warranty |
| Weight | 5.54 kg |
| Dimensions | 378.2 mm x 432.4 mm x 44 mm |
Product Description
The 8 x 8 HDMI Matrix Switch allows any of the 8 HDMI input signals to be routed to any of the 8 HDMI output channels with no compromise on flexibility. Multiple methods are available when it comes to controlling the device, such as through the front panel pushbuttons, RS-232, and Ethernet (Telnet / Web GUI) connections. Plus, the VM5808HA supports ATEN Video Matrix Control app for device status viewing and controlling. It can also be integrated with ATEN Control System, a platform where Ethernet-based ATEN Video Matrix Switches and third-party devices (such as projectors, lights, AV devices) are centrally monitored, managed, and controlled. Signal management is made efficient with the front panel LCD, giving users a quick view of all port connections. In addition, the local HDMI output port allows real-time monitoring of multiple sources on a single display exactly where the Matrix Switch is located. As the ultimate video wall solution, the FPGA-based VM5808HA features ATEN's exclusive Seamless Switch technology, ensuring uninterrupted video streams, real-time control, and stable signal transmission. The built-in scaler automatically scales any input video feed to match the native resolution of the output display for the best video and picture quality. To prevent screen tearing, the VM5808HA adopts FrameSync technology to synchronize the scaler output frame rates to the input signal frame rates, guaranteeing stunning tear-free video walls. Speaking of audio functionality, the Matrix Switch features audio de-embedding, enabling digital audio from any HDMI input to be assigned to the stereo output for added flexibility of installation. The VM5808HA is an HDMI video routing solution ideal for scenarios where customizable, real-time AV signal transportation from multiple sources to one or more destinations is required, from control centers, server rooms, to any kind of video wall applications.
Key Features
ATEN VM5808HA. Product type: AV matrix switcher, Data transfer rate: 6.75 Gbit/s, Maximum pixel clock: 225 MHz. Housing colour: Black, Housing material: Metal, Rack capacity: 1U. Power consumption (max): 58.1 W, Power consumption (typical): 56.6 W, AC input voltage: 100 - 240 V. Country of origin: Taiwan. Width: 378.2 mm, Depth: 432.4 mm, Height: 44 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ATEN VM5808HA matrix switcher AV matrix switcher 58.1 W (ATN-VM5808HA) is 100% genuine ATEN hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ATEN VM5808HA matrix switcher AV matrix switcher 58.1 W includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ATEN VM5808HA matrix switcher AV matrix switcher 58.1 W compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ATN-VM5808HA.
