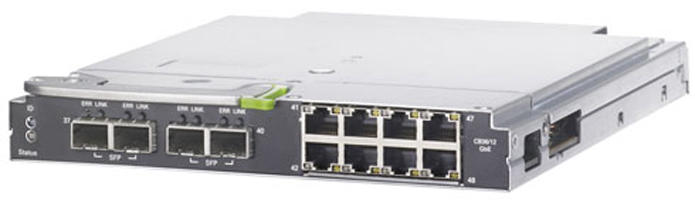

Fujitsu Primergy BX IBP 36/12 Managed L2+ Multicolour
Brand: Fujitsu · SKU: VFY:SB11ASC010IN · MPN: VFY:SB11ASC010IN · Category: Components
Fujitsu Primergy BX IBP 36/12, Managed, L2+, Full duplex. Fujitsu Primergy BX IBP 36/12 Managed L2+ Multicolour (part number VFY:SB11ASC010IN) is an enterprise components product available from Server Tech Central. Key specifications include depth 267.9 mm, width 192.6 mm, height 28 mm, weight 1.35 kg, bandwidth 96 Gbit/s, 10g support No, full duplex Yes, switch type Managed. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 267.9 mm |
|---|---|
| Width | 192.6 mm |
| Height | 28 mm |
| Weight | 1.35 kg |
| Bandwidth | 96 Gbit/s |
| 10G support | No |
| Full duplex | Yes |
| Switch type | Managed |
| Ethernet LAN | Yes |
| Flash memory | 64 MB |
| Switch layer | L2+ |
| VLAN support | Yes |
| Certification | CE, GS, ULc/us, FCC, CB, RoHS, WEEE, VCCI, C-Tick, BSMI |
| IGMP snooping | Yes |
| LED indicators | Link, Power, Status |
| Port mirroring | Yes |
| Product colour | Multicolour |
| Internal memory | 256 MB |
| Link aggregation | Yes |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Warranty | 3-Year Warranty |
| Weight | 1.35 kg |
| Dimensions | 192.6 mm x 267.9 mm x 28 mm |
Product Description
The Primergy Ethernet Switch/IBP 36/12 is an integrated 1 Gbit/s Connection Blade for use in the Primergy BX400 and BX900 chassis. It can be installed in all Connection Blade bays and provides 36 downlink ports each with 1 Gbit/s to the midplane to connect with the Server Blades. The module contains 12 uplink ports each 1 Gbit/s; Layer 2+ functionalities are supported. - Integrated switch and Intelligent Blade Panel for Primergy BX400 and BX900 Blade Servers; - Variable usage in one of the up to 8 connection slots on the rear of a system unit; - Unites switch and IBP functionality; - Effortless switching between the pure switch and the IBP functionality allows flexible use depending on demands; - 8 x 1Gbit/s (RJ45) uplink ports + 4 x 1Gbit/s (SFP) uplink ports; - High scalability due to a large number of external connections; - When used in IBP mode: Uplink Sets, Port Grouping, Standard Port Group, VLAN Port Group, Service LAN Group, Service VLAN Group; - The IBP mode avoids protocol compatibility problems and offers extended functions in comparison to the standard switch mode.
Key Features
Fujitsu Primergy BX IBP 36/12. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 44. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE...
