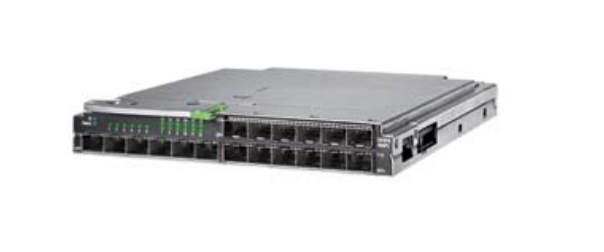

Fujitsu Primergy BX FC Pass Thru 8Gb/s 18/18 network management device Ethernet LAN
Brand: Fujitsu · SKU: VFY:FPT8GSC010IN · MPN: VFY:FPT8GSC010IN · Category: Components
Fujitsu Primergy BX FC Pass Thru 8Gb/s 18/18, 42 W, GS, CE, CB, RoHS, WEEE, VCCI, BSMI, C-Tick, 192.6 x 267.9 x 28.91 mm, 1.5 kg. Fujitsu Primergy BX FC Pass Thru 8Gb/s 18/18 network management device Ethernet LAN (part number VFY:FPT8GSC010IN) is an enterprise components product available from Server Tech Central. Key specifications include wi-fi No, weight 1.5 kg, ethernet lan Yes, power supply 42 W, certification GS, CE, CB, RoHS, WEEE, VCCI, BSMI, C-Tick, dimensions (wxdxh) 192.6 x 267.9 x 28.91 mm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Wi-Fi | No |
|---|---|
| Weight | 1.5 kg |
| Ethernet LAN | Yes |
| Power supply | 42 W |
| Certification | GS, CE, CB, RoHS, WEEE, VCCI, BSMI, C-Tick |
| Dimensions (WxDxH) | 192.6 x 267.9 x 28.91 mm |
| Warranty | 3-Year Warranty |
| Weight | 1.5 kg |
Product Description
PRIMERGY BX Fibre Channel Pass Thru 8Gbit/s 18/18 Blade Servers and Fibre Channel SANs build an ideal infrastructure for maximizing the benefits of consolidation and server virtualization. In addition to Fibre Channel switch blades Fujitsu offers a connection blade for direct transmission of sensitive data between servers and storage. Each of the maximum 3 (4) Fibre Channel passthru blades within a BX400 (BX900) blade server enclosure provides secure interconnectivity with up to 8 Gbit/s for up to 18 FC ports. The small pass-thru form factor (single width and height) allows connection of up to 72 FC ports whilst leaving 2 more IO fabrics of the BX system unit usable for additional types of transmission, e. g. for Infiniband. At twice the bandwidth of 4 Gb networks, each Server Blade can host more virtual machines ensuring high performance and availability. Main Features: Safe operation 4/8 Gb Fibre Channel pass thru technology with 18 physically separated lines. Universal use - Independence Protocol-free operation. Scalability provided Installation in Fabrics 2 and 3 of the BX400 (3 times) or BX900 (4 times) system units. Flexible connection Auto-sensing for transmission speeds of 4 and 8 Gbit/s. Optimal CAPEX Pass-thru characteristics allow cost optimized production compared to switch technology, including SFP and SFP+ interface modules. Always maximal performance at low costs 18x18 - End-to-End connection with up to 18 Gbit/s per single connection. High availability Up to 2x 2 pass-thru blades may be installed in a blade server enclosure, offering either up to 72 active connections, or 2x 36 connections, where the second 36 are redundant. Benefits: - Most secure transmission of data between server blades and SAN at high, native speed. - Hassle-free connection to all market relevant FC networks, avoiding any dependency on proprietary protocols, protecting investments in existing storage and SAN environments. - Maximum 4 pass-thru blades within one chassis offer scalability for up to 4 FC connections per server blade. - Flexible connectivity to external network components that provide different interconnect speeds. - Price sensitive customers, who don’t see the necessity of switched connectivity, will be highly satisfied by this connection blade. - If overall throughput maximization in a blade server chassis is required, pass-thru blades are the better solution than switch blades; in addition they are generally cheaper when purchased, even though the number of cables needed is high. - Easy and efficient high availability for always accessible SAN located storage.
Key Features
Fujitsu Primergy BX FC Pass Thru 8Gb/s 18/18. Power supply: 42 W. Certification: GS, CE, CB, RoHS, WEEE, VCCI, BSMI, C-Tick. Dimensions (WxDxH): 192.6 x 267.9 x 28.91 mm, Weight: 1.5 kg
