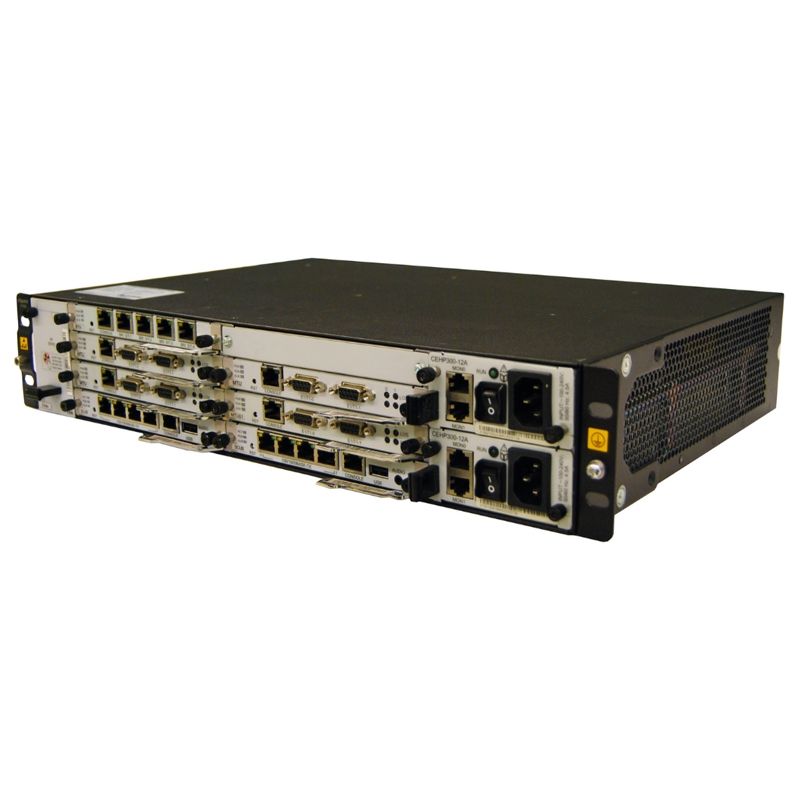

U18Z02ACFM, Huawei eSpace U1900 Series Unified Gateway, AC Integrated Frame/U1981 Compatible
Brand: Huawei · SKU: U18Z02ACFM · MPN: U18Z02ACFM · Category: Networking
U18Z02ACFM eSpace U1900 Series Unified Gateways eSpace U1981 AC Integrated Frame
Specifications
| Model | U18Z02ACFM |
|---|---|
| Codecs | G.711a/μ, G.729a/b/ab, iLBC, and G.722/G.722.1/G.722.2 |
| Weight | 10.1 kg |
| Environment | Storage temperature: –40°C to +70°C; long-term operating temperature: 0°C to 45°C; short-term operating temperature: –5°C to +55°C; operating humidity: 5% to 95% RH, non-condensing; air-filtration systems should be deployed in the operating environment; air-borne dust potency should be less than 180 mg/m³. |
| Trunk ports | A maximum of 60 FXO ports, 12 E1/T1 ports, and 20 BRI ports |
| Power supply | AC: 100–240 V AC, 50/60 Hz; DC: –38.4 to –60 V DC, typical –48 V DC; two power modules in 1+1 backup mode |
| Manageability | Centralized/remote device management, signaling tracing, resource management, and alarm management |
| Power consumption | 220W (in full configuration) |
| System reliability | ≥ 99.999%; mean time between failure (MTBF): 30 years |
| Built-in voice mail | 30 channels concurrently; built-in 16GB SD storage card |
| Conference capacity | A maximum of 360 participants; a maximum of 120 conferences, with a maximum of 60 participants per conference |
| Signaling protocols | PRI, QSIG, SS7, R2, and SIP |
| Terminals supported | Analog phone, IP phone, video phone, and soft terminal |
| Dimensions (H x W x D) | Standard 19-inch 2U subrack; 86.1mm x 442mm x 310mm |
| User capacity per U1981 | A maximum of 10,000 users (including 160 directly-connected analog phone users) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this U18Z02ACFM, Huawei eSpace U1900 Series Unified Gateway, AC Integrated Frame/U1981 Compatible (U18Z02ACFM) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This U18Z02ACFM, Huawei eSpace U1900 Series Unified Gateway, AC Integrated Frame/U1981 Compatible includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the U18Z02ACFM, Huawei eSpace U1900 Series Unified Gateway, AC Integrated Frame/U1981 Compatible compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the U18Z02ACFM.
