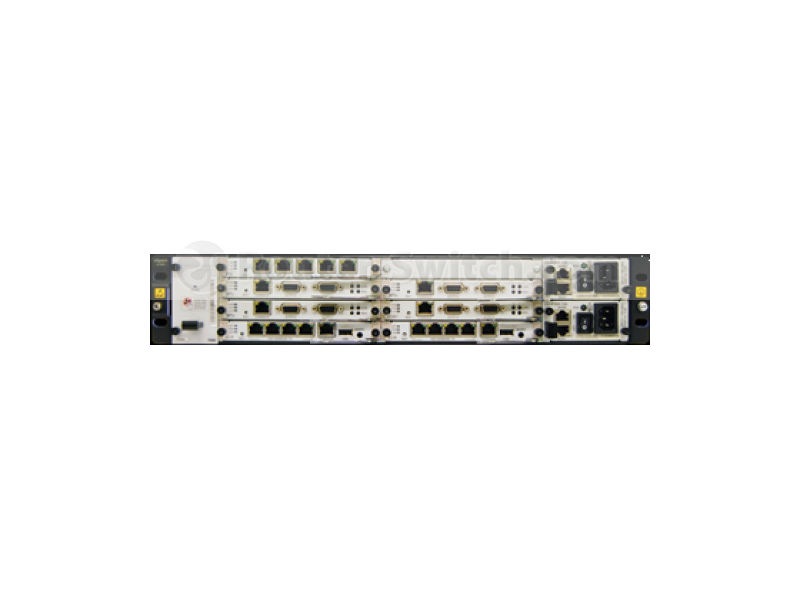

U18Z01DCEQ, Huawei eSpace U1900 Series Unified Gateway, 1 SCU/1 MTU/DC Integrated Host
Brand: Huawei · SKU: U18Z01DCEQ · MPN: U18Z01DCEQ · Category: Networking
U18Z01DCEQ eSpace U1900 Series Unified Gateways eSpace U1981 DC Integrated Host(1 SCU,1 MTU)
Specifications
| Model | U18Z01DCEQ |
|---|---|
| Codecs | G.711a/μ, G.729a/b/ab, iLBC, G.722, G.722.1, G.722.2 |
| Weight | 12.1 kg |
| Environment | Storage temperature: –40°C to +70°C; long-term operating temperature: 0°C to +45°C; short-term operating temperature: –5°C to +55°C; operating humidity: 5% to 95% RH, non-condensing; air-filtration required, air-borne dust < 180 mg/m³ |
| Trunk ports | Maximum 60 FXO ports, 12 E1/T1 ports, 20 BRI ports |
| Power supply | AC: 100–240 V AC, 50/60 Hz; DC: –38.4 to –60 V DC (typical –48 V DC); two power modules in 1+1 backup mode |
| Manageability | Centralized/remote device management, signaling tracing, resource management, alarm management |
| Power consumption | 220W (full configuration) |
| System reliability | ≥ 99.999%; MTBF: 30 years |
| Built-in voice mail | 30 concurrent channels; built-in 16GB SD storage card |
| Conference capacity | Maximum 360 participants; up to 120 conferences, maximum 60 participants per conference |
| Signaling protocols | PRI, QSIG, SS7, R2, SIP |
| Terminals supported | Analog phone, IP phone, video phone, soft terminal |
| User capacity per U1981 | Maximum 10,000 users (including 160 directly-connected analog phone users) |
| Dimensions (H × W × D) | Standard 19in 2U subrack; 86.1mm × 442mm × 310mm |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this U18Z01DCEQ, Huawei eSpace U1900 Series Unified Gateway, 1 SCU/1 MTU/DC Integrated Host (U18Z01DCEQ) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This U18Z01DCEQ, Huawei eSpace U1900 Series Unified Gateway, 1 SCU/1 MTU/DC Integrated Host includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the U18Z01DCEQ, Huawei eSpace U1900 Series Unified Gateway, 1 SCU/1 MTU/DC Integrated Host compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the U18Z01DCEQ.
