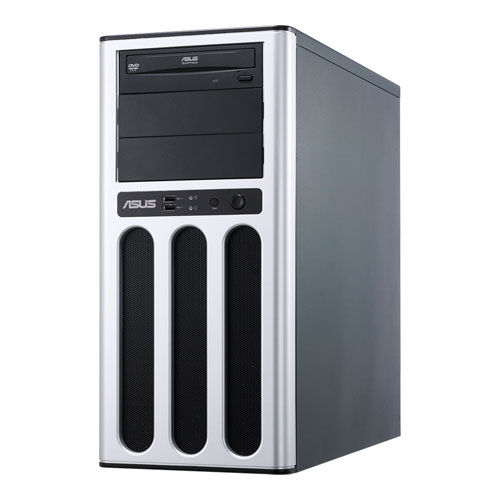

ASUS TS100-E7/PI4 server barebone LGA 1155 (Socket H2)
Brand: ASUS · SKU: TS100-E7/PI4 · MPN: TS100-E7/PI4 · Category: Servers
ASUS TS100-E7/PI4, LGA 1155 (Socket H2), Intel, Intel® Core™ i3, 32 GB, 3.5", Serial ATA II
Specifications
| Depth | 478.8 mm |
|---|---|
| Width | 436.8 mm |
| Height | 200 mm |
| Safety | CE, EN55022 |
| Weight | 15 kg |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Power supply | 200 W |
| Graphics card | Volari Z9s |
| LAN controller | Intel® 82574L |
| Expansion slots | 2 x PCI-E x1 / 2 x PCI 32bit / 33MHz |
| Processor family | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| PS/2 ports quantity | 2 |
| Graphics card family | XGI |
| Maximum UDIMM memory | 32 GB |
| Number of DIMM slots | 4 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Ethernet interface type | Gigabit Ethernet |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| Warranty | 3-Year Warranty |
| Weight | 15 kg |
| Dimensions | 436.8 mm x 478.8 mm x 200 mm |
Product Description
Super-quiet and energy saving UP server with dual Intel® LAN for SMB applications The TS100-E7/PI4 is a single-socket pedestal server system based on quad/dual-core Intel® E3-1200/CoreTM i3-2100 series processors and the Intel® C202PCH chipset with support for up to 32GB of DDR3 1333Hz unbuffered ECC memory. Upscaled performance increases processing speeds, while the super-quiet design makes the TS100-E7/PI4 ideal for professional environments where noise reduction is important. Super-quiet UP server with dual Intel® LAN for SMB applications The latest Intel® CPUs The TS100-E7/PI4 is ready for new-generation Intel® Xeon® 32nm quad/dual-core UP processors, which deliver a significant performance improvement (up to 25%) over previous generation CPUs. Also, with Intel® Turbo Boost Technology 2.0, the TS100-E7/PI4 provides more efficient, dynamic, and intelligent performance enhancement on demand. Ultra-quiet and energy-saving Strict acoustic testing has shown that the TS100-E7/PI4 performs excellently in noise control at less than 25.6dBA when idle – even lower than the noise output of a projector (42dB). It facilitates quiet working environments, and ships with an 80+ power supply to reduce power loss and power consumption, helping consumers save on energy bills. Dual Intel® server-class Gigabit LAN The TS100-E7/PI4 offers more reliable networking and wide- range virtualization, including VMWare®, Hyper-V and Xen. IPv6 readiness effortlessly resolves potential IPv4 address shortage problems even before they occur. Optional ASUS TPM module With the ASUS TPM module supporting TXT technology, the TS100-E7/PI4 avoid s Trojan and malware incursions, while Hypervisor loads on start-up to provide hardware-level security against software attacks, protecting data from memory snooping. Effortless install Auto-setup in a few simple steps and the intuitive support CD mean users don’t need to go through a lengthy process as the install is pre-configured, and all device drivers arrive fully installed with the latest versions, saving IT staff time and effort.
Key Features
ASUS TS100-E7/PI4. Processor socket: LGA 1155 (Socket H2), Processor family: Intel, Compatible processor series: Intel® Core™ i3. Maximum UDIMM memory: 32 GB. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial ATA II, RAID levels: 0, 1, 5, 10. Maximum graphics card memory: 8 MB. Ethernet interface type: Gigabit Ethernet, Copper ethernet cabling technology: 1000BASE-T, LAN controller: Intel® 82574L
