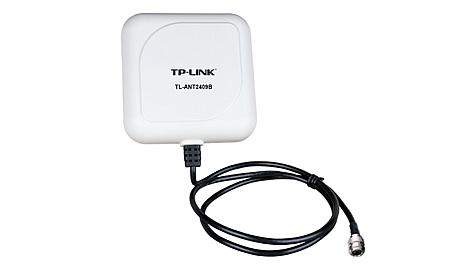

TP-Link 2.4GHz 9dBi Outdoor Directional Antenna network antenna
Brand: TP-Link · SKU: TL-ANT2409B · MPN: TL-ANT2409B · Category: Components
TP-Link 2.4GHz 9dBi Outdoor Directional Antenna, 9 dBi, 2.4 GHz, 50 Ω, 60°, 76°, Vertical polarization
Specifications
| Depth | 120 mm |
|---|---|
| Width | 120 mm |
| Height | 40 mm |
| Mounting | Wall |
| Impedance | 50 Ω |
| Cable length | 1 m |
| Polarization | Vertical polarization |
| Certification | CE, FCC, RoHS |
| Frequency band | 2.4 GHz |
| Vertical beam width | 76° |
| Horizontal beam width | 60° |
| Network connection type | 802.11b/g |
| Antenna gain level (max) | 9 dBi |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Voltage Standing Wave Ratio (VSWR) | 1.92: 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 120 mm x 120 mm x 40 mm |
Product Description
- 9dBi directional operation covers long ranges - Weather proof design, suitable for all weather conditions - Features 100cm CFD-200 low loss cable for flexible deployment - N Female connector, applicable in most outdoor solutions - Provides easy installation mounting kits.
Key Features
TP-Link 2.4GHz 9dBi Outdoor Directional Antenna. Antenna gain level (max): 9 dBi, Frequency band: 2.4 GHz, Impedance: 50 Ω. Polarization: Vertical polarization, Voltage Standing Wave Ratio (VSWR): 1.92: 1, Cable length: 1 m. Certification: CE, FCC, RoHS. Width: 120 mm, Depth: 120 mm, Height: 40 mm. Network connection type: 802.11b/g
