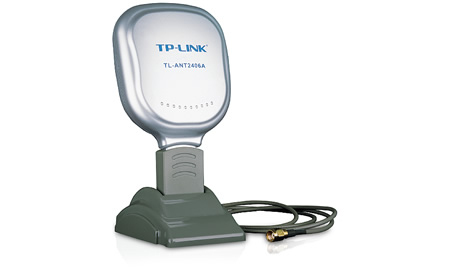

TP-Link 2.4GHz 6dBi Indoor Directional Antenna network antenna
Brand: TP-Link · SKU: TL-ANT2406A · MPN: TL-ANT2406A · Category: Components
TP-Link 2.4GHz 6dBi Indoor Directional Antenna, 6 dBi, 2.4 - 2.5 GHz, IEEE 802.11b, IEEE 802.11g, 50 Ω, 45°, 45°
Specifications
| Depth | 80 mm |
|---|---|
| Width | 80 mm |
| Height | 158 mm |
| Impedance | 50 Ω |
| Cable type | RG-174 Coax |
| Cable length | 1.3 m |
| Polarization | Vertical polarization |
| Certification | CE, FCC, RoHS |
| Frequency band | 2.4 - 2.5 GHz |
| Vertical beam width | 45° |
| Networking standards | IEEE 802.11b, IEEE 802.11g |
| Horizontal beam width | 45° |
| Antenna gain level (max) | 6 dBi |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Voltage Standing Wave Ratio (VSWR) | 1.92: 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 80 mm x 80 mm x 158 mm |
Product Description
Features: - Features 130cm extension cable ensuring flexible deployment and better performance. - Very easy to install, no software required. - 6dBi directional operation boosts your signal to a further distance in a specific direction. - RP-SMA Male connector, works with device with RP-SMA Female connector.
Key Features
TP-Link 2.4GHz 6dBi Indoor Directional Antenna. Antenna gain level (max): 6 dBi, Frequency band: 2.4 - 2.5 GHz, Networking standards: IEEE 802.11b, IEEE 802.11g. Polarization: Vertical polarization, Voltage Standing Wave Ratio (VSWR): 1.92: 1, Cable length: 1.3 m. Certification: CE, FCC, RoHS. Width: 80 mm, Depth: 80 mm, Height: 158 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link 2.4GHz 6dBi Indoor Directional Antenna network antenna (TL-ANT2406A) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link 2.4GHz 6dBi Indoor Directional Antenna network antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link 2.4GHz 6dBi Indoor Directional Antenna network antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the TL-ANT2406A.
