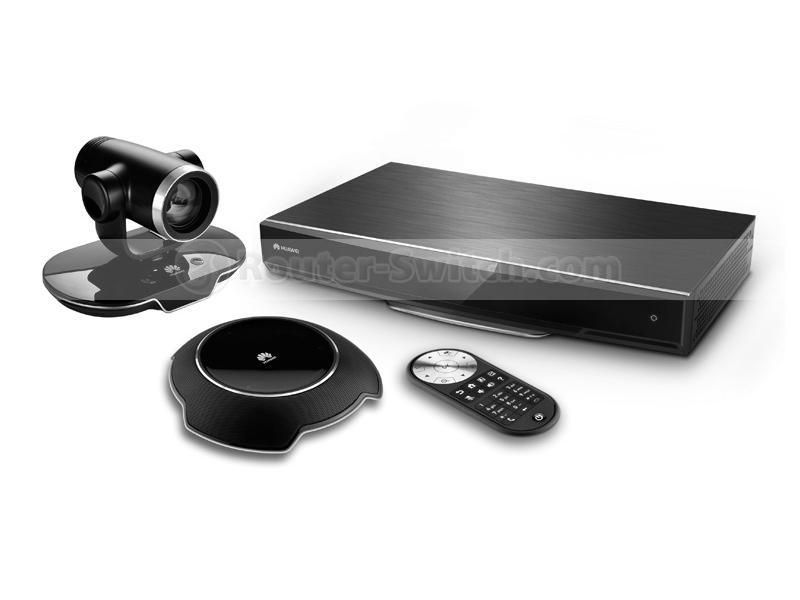

TE40-1080P30-P-02, Huawei TE40 Video Conferencing Codec, 1080P30 HD/12x HD camera/wired mic array
Brand: Huawei · SKU: TE40-1080P30-P-02 · MPN: TE40-1080P30-P-02 · Category: Components
Huawei TE40-1080P30-P-02 TE40 HD codec 1080P30, VPC600 HD camera(12x), VPM220 wired microphone array
Specifications
| Model | TE40-1080P30-P-02 |
|---|---|
| Weight | 20 kg |
| Bandwidth | IP: 64 Kbps to 8Mbps |
| Scenarios | Middle and small-sized conference rooms |
| Electrical | Working voltage: 100 V to 240 V AC; Working frequency: 50 Hz to 60 Hz; Power consumption: 60W; Embedded AC/DC power module |
| Multi-view | 2-view |
| Dual Stream | Dual 1080p @ 60 fps (Optional); Dual 1080p @ 30 fps (Optional); Dual 720p @ 30 fps |
| Pack Volume | 0.098226 m³ |
| Positioning | Commercial |
| Audio Inputs | 1 x XLR; 2 x RCA; 1 x HDMI; 1 x HD-AI (Mic Array/Audio external) |
| Video Inputs | 1 x HD-VI/DVI; 1 x HDMI/DVI; 1 x VGA/YPbPr |
| Audio Outputs | 4 x RCA; 2 x HDMI |
| Typical Power | 57W |
| Video Outputs | 2 x HDMI/DVI; 1 x VGA/YPbPr |
| Other Interfaces | IP: 10/100/1000 Base-T, 2 x RJ45; PSTN(#): 1 x RJ11; Wireless: Built-in Wi-Fi; 2 x RS232 COM; 2 x USB 2.0 Host |
| People Video Resolution | 1080p @ 60 fps from 1Mbps (Optional); 1080p @ 30 fps from 512 Kbps (Optional); 1080i @ 60 fps from 512 Kbps (Optional); 720p @ 50/60 fps from 512 Kbps (Optional); 720p @ 25/30 fps from 384 Kbps |
| Net Dimension (D x W x H) | 535mm x 360mm x 510mm |
| Pack Dimension (D x W x H) | 535mm x 360mm x 510mm |
| Codec Dimensions (L x W x H) | 435mm x 265.5mm x 72.5mm |
| Package Dimensions (L x W x H) | 545mm x 355mm x 220mm |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TE40-1080P30-P-02, Huawei TE40 Video Conferencing Codec, 1080P30 HD/12x HD camera/wired mic array (TE40-1080P30-P-02) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TE40-1080P30-P-02, Huawei TE40 Video Conferencing Codec, 1080P30 HD/12x HD camera/wired mic array includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TE40-1080P30-P-02, Huawei TE40 Video Conferencing Codec, 1080P30 HD/12x HD camera/wired mic array compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the TE40-1080P30-P-02.
