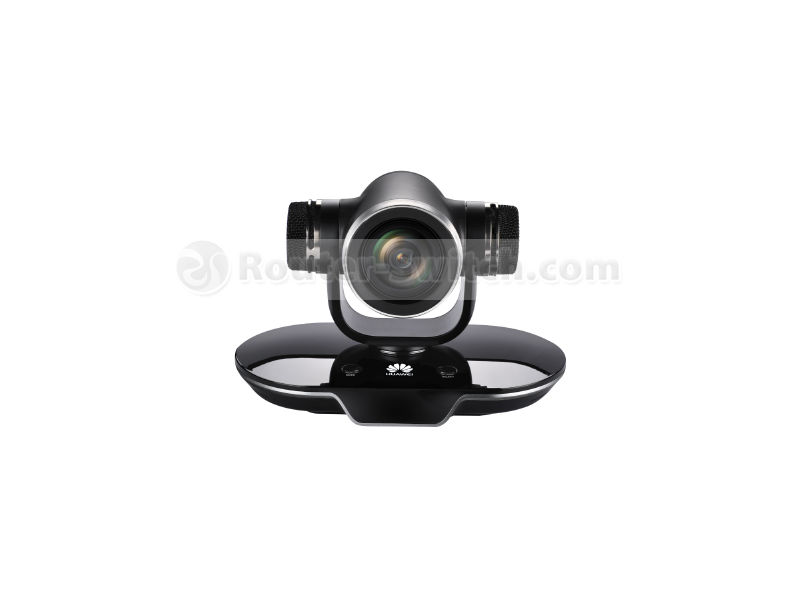

TE30-C-720P, Huawei TE30-C Series Videoconferencing Terminal, 720P HD, Integrated Design, Video Terminal

Brand: Huawei · SKU: TE30-C-720P · MPN: TE30-C-720P · Category: Components

TE30-C-720P, Huawei TE30-C Series Videoconferencing Terminal, 720P HD, Integrated Design, Video Terminal
$3,038.76
In Stock • 10 units

Huawei (HUAWEI) TE30-C 720P videoconferencing terminals integrated HD video conference Terminal

View Components Products

Specifications

IP64 Kbit/s to 4 Mbit/s
ModelTE30-C-720P
SecurityH.235 signaling and media stream encryption AES media stream encryption, dual-stream encryption TLS and SRTP for SIP signaling and media stream encryption Conference access password, conference control password Administrator password, SSH/HTTPS
LanguagesSimplified Chinese, Traditional Chinese, English, Japanese, Russian, French, Spanish, Portuguese, German, Finnish, Polish, Hungarian, Italian, Norwegian, Arabic, Swedish, Romanian, Czech, Turkish, Greek, Thai, Dutch, Malay, and Indonesian
DimensionsCodec dimensions (L x W x H): 235mm x 167mm x 157mm Package dimensions (L x W x H): 402mm x 232mm x 237mm Net weight: 2.1 kg; Package Weight: 3.3 kg
AccessoriesVPM220 Microphone array or VPM220W wireless Microphone, Wireless touch panel
Dual Stream1080p30 + 1080p5 (Optional); Dual 720p30
Audio Inputs1 x 3.5mm line-in jack, 1 x HD-AI (stereo, connects to microphone array )
Video Inputs1 x VGA, 1 x Built-in Camera
Audio Outputs1 x 3.5mm line-out jack, 1 x HDMI
Video Outputs1 x VGA/YPbPr, 1 x HDMI
Audio FeaturesDual-channel AAC-LD Stereo HWA-LD Stereo: Huawei Audio Broadband Low Delay Stereo Acoustic Echo Cancellation (AEC) Acoustic Noise Suppression (ANS) 12 dB Automatic Gain Control (AGC) ±6 dB Voice Clear, Audio Enhancer Lip synchronization
USB Interfaces1 x USB 2.0 Host
1080p HD CameraBuilt-in camera Video output pixels: 1080p50/60 Lens: 2-megapixel and 1/3-inch CMOS imaging chip Zoom: 12x optical Number of preset positions: 30 Maximum horizontal angle: 72° horizontal field of view Panning/Tilting angle: +/-30° tilt, +/-100° pan Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF) Far-end camera control Upside-down mounting with automatic flipping of picture
Function Models1080p30, Embedded MCU
Other StandardsH.221, H.225, H.230, H.231, H.235, H.241, H.242, H.243, H.245, H.281, H.350, H.460, T.140, and DTMF
Firewall TraversalH.460.18, H.460.19 firewall traversal, Static NAT, and SNP
Maintain FunctionsEndpoint IP and number are displayed on the front panel Auto sleep, wake-up by remote control or remote module Event log record, query, display, and export query results IP network test, default settings restoration Local and remote loopback Test signals: providing sound test and standard test stripes
Network InterfacesIP: 10/100 Base-T, 1 x RJ45 Wireless: Built-in Wi-Fi
Approval and ComplianceCE, RoHS, WEEE, REACH, UL, FCC, and CCC
Embedded MCU (optional)Non-encrypted conference: 4-way HD (receive 576P, send 720P)/SD video sites+ 3-way VoIP Encrypted conference: 4-way HD (receive 576P, send 720P)/SD video sites Max bandwidth: 6M Auto CP on each port, voice activation, chairman token, broadcast site, H.239 and BFCP HD/SD endpoints compliant with H.323/ SIP in the same conference, tolerant of different bandwidth consumption and audio/video protocols
People Video Resolution1080p30 from 512 Kbit/s (Optional) 720p50/60 from 512 Kbit/s (Optional) 720p25/30 from 384 Kbit/s 4SIF/4CIF from 128 Kbit/s SIF/CIF/QSIF/QCIF/SQSIF/SQCIF from 64 Kbit/s
Standards and ProtocolsITU-T H.323, IETF SIP
Content Video ResolutionInput: VGA (640 x 480) @ 60/72/75/85 fps, SVGA (800 x 600) 56/60/72/75/85 @ fps, XGA (1,024 x 768) @ 60/70/75/85 fps, 1,152 x 864 @ 60/75/85 fps, 1,280 x 600 @ 60 fps, WXGA (1,280 x 768) @ 60/75/85 fps, WXGA (1,280 x 800) @ 60/75/85 fps, 1,280 x 960 @ 60/75/85 fps, SXGA (1,280 x 1,024) @ 50/60/72/75/85 fps, 1,360 x 768 @ 60 fps, 1,366 x 768 @ 60 fps, 1,440 x 900 @ 60 fps, XGA+ (1,400 x 1,050) @ 60 fps, 720p60/75/85, 1080p60, 1,600 x 900 @ 60 fps, 1,600 x 1,200 @ 60 fps, 1,680 x 1,050 @ 60 fps, 1,920 x 1,200 @ 60 fps Coding/Decoding resolution: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080 Output: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this TE30-C-720P, Huawei TE30-C Series Videoconferencing Terminal, 720P HD, Integrated Design, Video Terminal (TE30-C-720P) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This TE30-C-720P, Huawei TE30-C Series Videoconferencing Terminal, 720P HD, Integrated Design, Video Terminal includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the TE30-C-720P, Huawei TE30-C Series Videoconferencing Terminal, 720P HD, Integrated Design, Video Terminal compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the TE30-C-720P.
