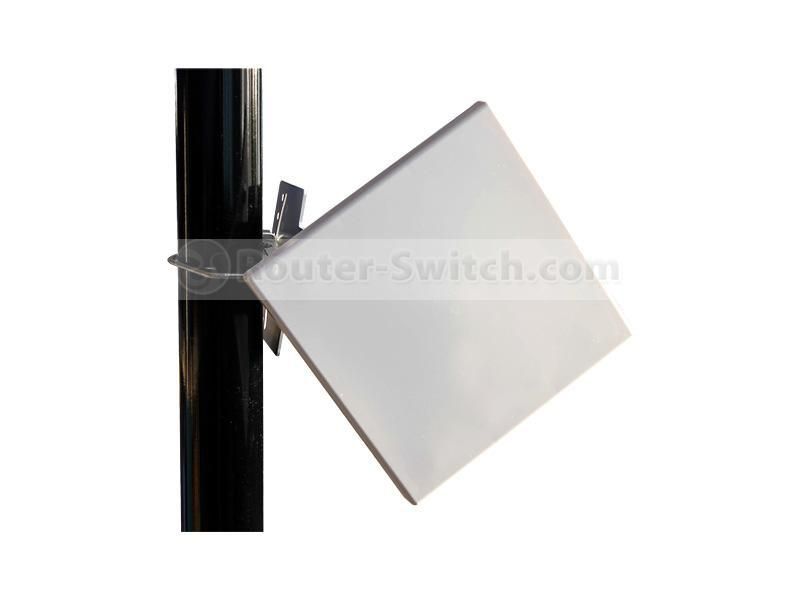

TDJ-SA2400-17-90, Huawei Directional Panel Antenna, 2400-2500MHz/17dBi Gain/90～ Beamwidth
Brand: Huawei · SKU: TDJ-SA2400-17-90 · MPN: TDJ-SA2400-17-90 · Category: Components
Directional Panel Antenna,2400-2500Mhz,17dBi,90deg,vertical,100W,N Female,bracket included
Specifications
| Gain | 17 dBi |
|---|---|
| VSWR | < 1.5:1 |
| Color | White |
| Model | TDJ-SA2400-17-90 |
| Weight | 7 kg |
| Material | Aluminum Alloy |
| Mounting | Bracket Included |
| Beamwidth | 90° |
| Impedance | 50 Ohms |
| Wind Load | 200 km/h |
| Dimensions | 600 × 600mm |
| Antenna Type | Directional Panel Antenna |
| Polarization | Vertical |
| Waterproofing | IP65 |
| Connector Type | N Female |
| Frequency Range | 2400–2500MHz |
| Max Power Input | 100W |
| Front to Back Ratio | > 25 dB |
| Operational Temperature | -40°C to 60°C |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TDJ-SA2400-17-90, Huawei Directional Panel Antenna, 2400-2500MHz/17dBi Gain/90～ Beamwidth (TDJ-SA2400-17-90) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TDJ-SA2400-17-90, Huawei Directional Panel Antenna, 2400-2500MHz/17dBi Gain/90～ Beamwidth includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TDJ-SA2400-17-90, Huawei Directional Panel Antenna, 2400-2500MHz/17dBi Gain/90～ Beamwidth compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the TDJ-SA2400-17-90.
