Brand: TDK-Lambda · SKU: HWS50A-15/A · MPN: HWS50A-15/A · Category: Components

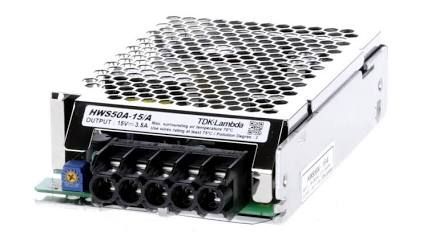

The TDK-Lambda HWS50A-15/A is a single-output industrial power supply from the HWS15A-150A/A series. It features a universal AC input range of 85 to 265Vac and delivers a nominal output of 15VDC at 3.5A, resulting in 52.5W of output power. This model includes a cover (/A option) and is an enclosed, chassis-mount switching power supply designed for industrial and test and measurement applications. It boasts a limited lifetime warranty and compliance with standards like UL 508 and SEMI F47.
| Type | switching |
|---|---|
| Series | HWS15A-150A |
| Case Style | Enclosed |
| Efficiency | 86% Typ. |
| Output Power | 50 W |
| Mounting Style | Chassis Mount |
| Isolation Voltage | 500 VDC |
| Input Voltage Range | 85 to 265Vac |
| Output Voltage Range | 12 to 18Vdc |
| Rated Output Voltage | 15Vdc |
| Maximum Output Current | 3.5A |
| Warranty | Limited Lifetime Warranty (for Americas and EMEA regions; 5 years for other regions) |
| Weight | 300g Typ. (0.7lbs Typ.) |
| Dimensions | 31.5mm (W) x 82mm (H) x 120mm (D) |
The HWS50A-15/A is a 50W, single-output industrial power supply featuring a universal input (85 to 265Vac) and output specifications of 15VDC (adjustable 12V to 18V) at 3.5A. It comes with a cover (/A). Key features include a limited lifetime warranty, UL 508 certification, SEMI F47 compliance, and Class B conducted/radiated EMI performance. It utilizes a built-in, automated speed control fan for low acoustic noise.
Yes, this TDK-Lambda HWS50A-15/A Industrial Power Supply (HWS50A-15/A) is 100% genuine TDK-Lambda hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This TDK-Lambda HWS50A-15/A Industrial Power Supply includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the HWS50A-15/A.
