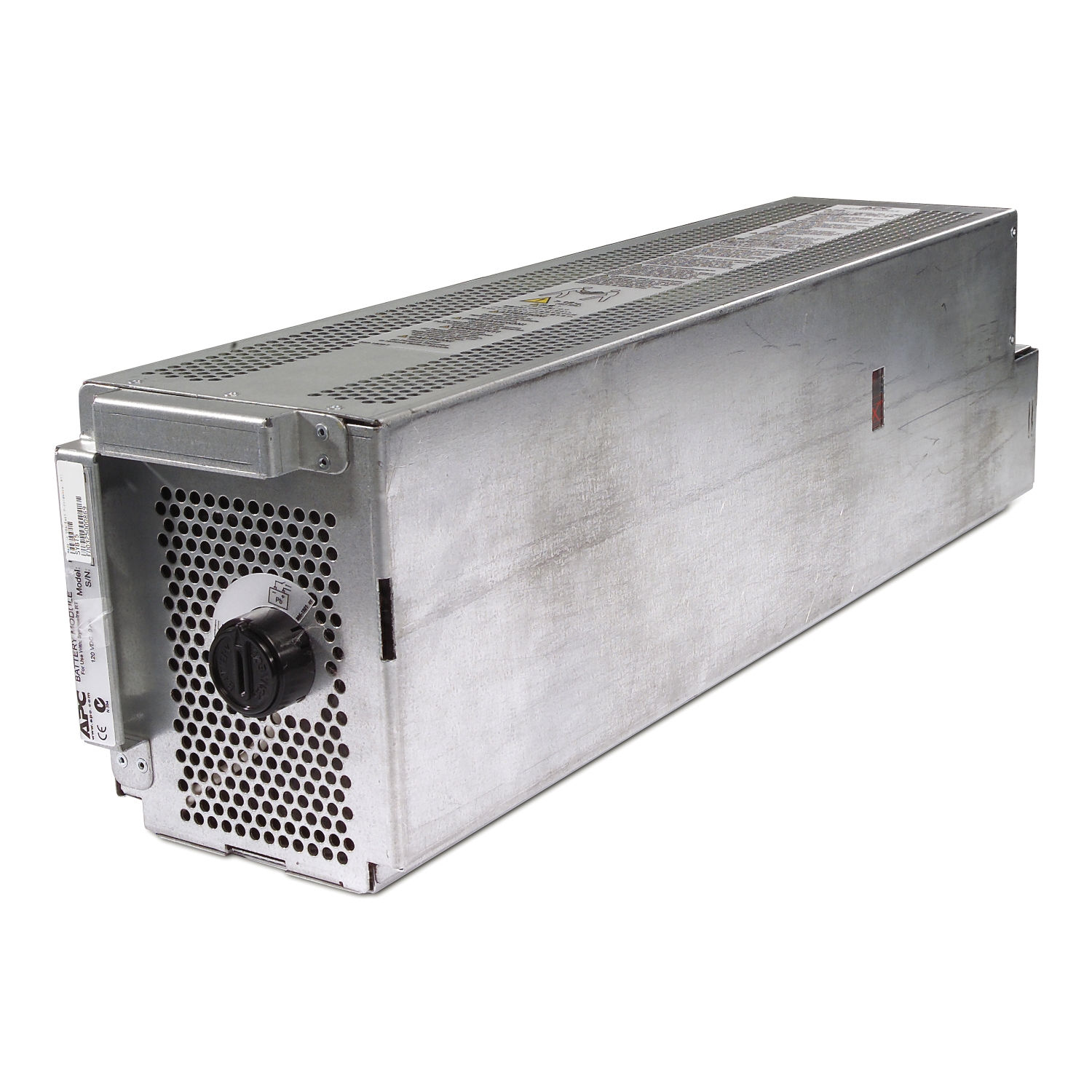

APC Symmetra LX Battery Module SYBT5
Brand: APC by Schneider Electric · SKU: SYBT5 · MPN: SYBT5 · Category: Components
The APC Symmetra LX Battery Module SYBT5 is a hot-swappable, maintenance-free, sealed lead-acid battery cartridge designed to add extended runtime power protection for servers, networks, and telecommunications devices when used with APC Symmetra LX UPS systems. It is configurable with Symmetra redundant N+1 architecture. The module includes 10 battery blocks per string and has a capacity of 1,080 volt-amp-hours (VaH). It features hot pluggable operation for easy installation without powering down the UPS or impacting critical loads. Third-party replacements often include brand new batteries and a 1-year warranty, noting that the original APC unit may have a 2-year limited warranty. Some replacement modules feature an EEPROM that must be correctly configured or replaced to ensure the main UPS board recognizes the new battery status.
Specifications
| Battery Type | Maintenance-free Lead Acid |
|---|---|
| Hot Swappable | Yes |
| Certifications | CSA, UL 1778, RoHS |
| Output Voltage | 120 VDC |
| Battery Capacity | 1,080 VaH |
| Storage Temperature | 5 to 113°F (-15 to 45°C) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Battery Blocks per String | 10 |
| Maximum Battery Life Expectancy | 5 Years |
| Minimum Battery Life Expectancy | 3 Years |
| Warranty | Original APC warranty is often a 2-year limited warranty; third-party replacements frequently offer a 1-year full replacement warranty. |
| Weight | 64.2 lb / 29.1 kg |
| Dimensions | 21.5 x 8.3 x 5.5 inches / 54.6 x 21 x 14 cm (D x W x H) |
Key Features
The SYBT5 is a battery module specifically designed for the APC Symmetra LX series of UPS systems, providing reliable, extended runtime backup power. It is hot-swappable, allowing for replacement without interrupting power to connected critical loads. It utilizes lead-acid technology and features intelligent battery management capabilities.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC Symmetra LX Battery Module SYBT5 (SYBT5) is 100% genuine APC by Schneider Electric hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC Symmetra LX Battery Module SYBT5 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC Symmetra LX Battery Module SYBT5 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SYBT5.
