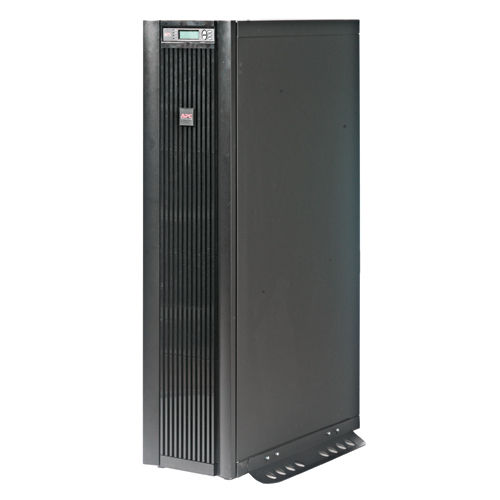

APC Smart-UPS VT uninterruptible power supply (UPS) 20 kVA 16000 W
Brand: APC · SKU: SUVTP20KH · MPN: SUVTP20KH · Category: Components
APC Smart-UPS VT, 20 kVA, 16000 W, 64 dB, 5.5 min, 18.3 min, 5 h. APC Smart-UPS VT uninterruptible power supply (UPS) 20 kVA 16000 W (part number SUVTP20KH) is an enterprise power supplies product available from Server Tech Central. Key specifications include weight 396.8 kg, interface DB-9 RS-232, Smart-Slot, noise level 64 dB, battery type VRLA, output power 16000 W, package weight 428.2 kg, product colour Black, audible alarm(s) Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 396.8 kg |
|---|---|
| Interface | DB-9 RS-232, Smart-Slot |
| Noise level | 64 dB |
| Battery type | VRLA |
| Output power | 16000 W |
| Certification | C-tick,CE,EN 50091-2,EN/IEC 62040-3,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-112 |
| Package weight | 428.2 kg |
| Product colour | Black |
| Audible alarm(s) | Yes |
| Dimensions (WxDxH) | 356 x 813 x 1499 mm |
| Operating altitude | 0 - 999.9 m |
| Output connections | - Hard Wire 4-wire (3PH + G) - Hard Wire 5-wire (3PH + N + G) |
| Products per pallet | 1 pc(s) |
| Battery recharge time | 5 h |
| Input connection type | Hard Wire 5-wire (3PH + N + G) |
| Nominal input voltage | 400 V |
| Output power capacity | 20 kVA |
| Serial ports quantity | 1 |
| Non-operating altitude | 0 - 15000 m |
| Emergency Power Off (EPO) | Yes |
| Storage temperature (T-T) | -50 - 40 °C |
| Package dimensions (WxDxH) | 650 x 1062 x 1643 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Replacement battery cartridge | 2 |
| Warranty | 3-Year Warranty |
| Weight | 396.8 kg |
Product Description
Dual mains input Increases availability by allowing the UPS to be connected to two separate power sources. Battery modules connected in parallel Delivers higher availability through redundant batteries. Automatic internal bypass Supplies utility power to the connected loads in the event of a UPS overload condition or fault. Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Generator compatible Ensures clean, uninterrupted power to protected equipment when generator power is used. Manual maintenance bypass Reduces installation costs by eliminating the need for an external mechanical bypass. Front-access servicing Simplifies installation and maintenance while minimizing space requirements. Battery replacement without tools Allows quick, easy battery replacement. User-replaceable air filters Enables quick and simple replacement of air filters. Network manageable Provides remote management of the UPS over the network. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. SmartSlot Customize UPS capabilities with management cards. LCD display Alpha-Numeric Display which displays system parameters and alarms. Audible alarms Provides notification of changing utility power and UPS conditions. Input power factor correction Minimizes installation costs by enabling the use of smaller generators and cabling. Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. Frequency and voltage regulation Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Key Features
APC Smart-UPS VT. Output power capacity: 20 kVA, Output power: 16000 W, Noise level: 64 dB. Typical backup time at full load: 5.5 min, Typical backup time at half load: 18.3 min, Battery recharge time: 5 h. Product colour: Black. Certification: C-tick,CE,EN 50091-2,EN/IEC 62040-3,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-112. Weight: 396.8 kg
