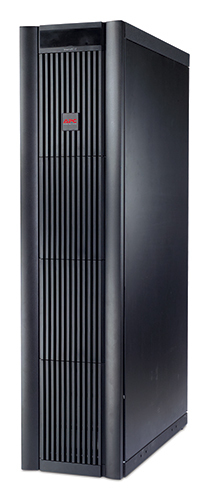

APC Smart-UPS VT uninterruptible power supply (UPS) 30 kVA

Brand: APC · SKU: SUVTSBPAR20K30F · MPN: SUVTSBPAR20K30F · Category: Components

APC Smart-UPS VT uninterruptible power supply (UPS) 30 kVA
Request for Quote
Backorder

APC Smart-UPS VT, 30 kVA, 60 Hz, Rackmount, Black, LCD, 0 - 40 °C. APC Smart-UPS VT uninterruptible power supply (UPS) 30 kVA (part number SUVTSBPAR20K30F) is an enterprise power supplies product available from Server Tech Central. Key specifications include depth 837 mm, width 533 mm, height 1487 mm, weight 171 kg, form factor Rackmount, display type LCD, certification UL 1778, led indicators Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Components Products

Specifications

Depth837 mm
Width533 mm
Height1487 mm
Weight171 kg
Form factorRackmount
Display typeLCD
CertificationUL 1778
LED indicatorsYes
Package weight205 kg
Product colourBlack
Input frequency60 Hz
Audible alarm(s)Yes
Hot-swap batteryYes
Number of phases3
Operating altitude0 - 3000 m
Nominal input voltage208 V
Output power capacity30 kVA
Nominal output voltage208 V
Non-operating altitude0 - 9000 m
Storage temperature (T-T)0 - 45 °C
Package dimensions (WxDxH)723 x 1104 x 1663 mm
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)0 - 95%
Operating relative humidity (H-H)0 - 95%
Warranty3-Year Warranty
Weight171 kg
Dimensions533 mm x 837 mm x 1487 mm

Product Description

Dual mains input Increases availability by allowing the UPS to be connected to two separate power sources. Scalable runtime Allows additional run time to be quickly added as needed. Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Generator compatible Ensures clean, uninterrupted power to protected equipment when generator power is used. Automatic internal bypass Supplies utility power to the connected loads in the event of a UPS overload condition or fault. Battery modules connected in parallel Delivers higher availability through redundant batteries. Serviceability User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) Battery replacement without tools Allows quick, easy battery replacement. Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Shippable with modules installed Enables pre-installation UPS staging and testing and faster installation. Modular design Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules. Manageability Network manageable Provides remote management of the UPS over the network. InfraStruXure Manager Compatible Enables centralized management via the APC InfraStruXure Manager. LCD display Alpha-Numeric Display which displays system parameters and alarms. Audible alarms Provides notification of changing utility power and UPS conditions Programmable frequency Ensures compatibility with different input frequencies. LED status indicators Quickly understand unit and power status with visual indicators. SmartSlot Customize UPS capabilities with management cards. Total Cost of Ownership Input power factor correction Minimizes installation costs by enabling the use of smaller generators and cabling. Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. Manual maintenance bypass Reduces installation costs by eliminating the need for an external mechanical bypass. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Protection Frequency and voltage regulation Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Cold-start capable Provides temporary battery power when the utility power is out.

Key Features

APC Smart-UPS VT. Output power capacity: 30 kVA, Input frequency: 60 Hz. Form factor: Rackmount, Product colour: Black, Display type: LCD. Certification: UL 1778. Width: 533 mm, Depth: 837 mm, Height: 1487 mm. Package weight: 205 kg
