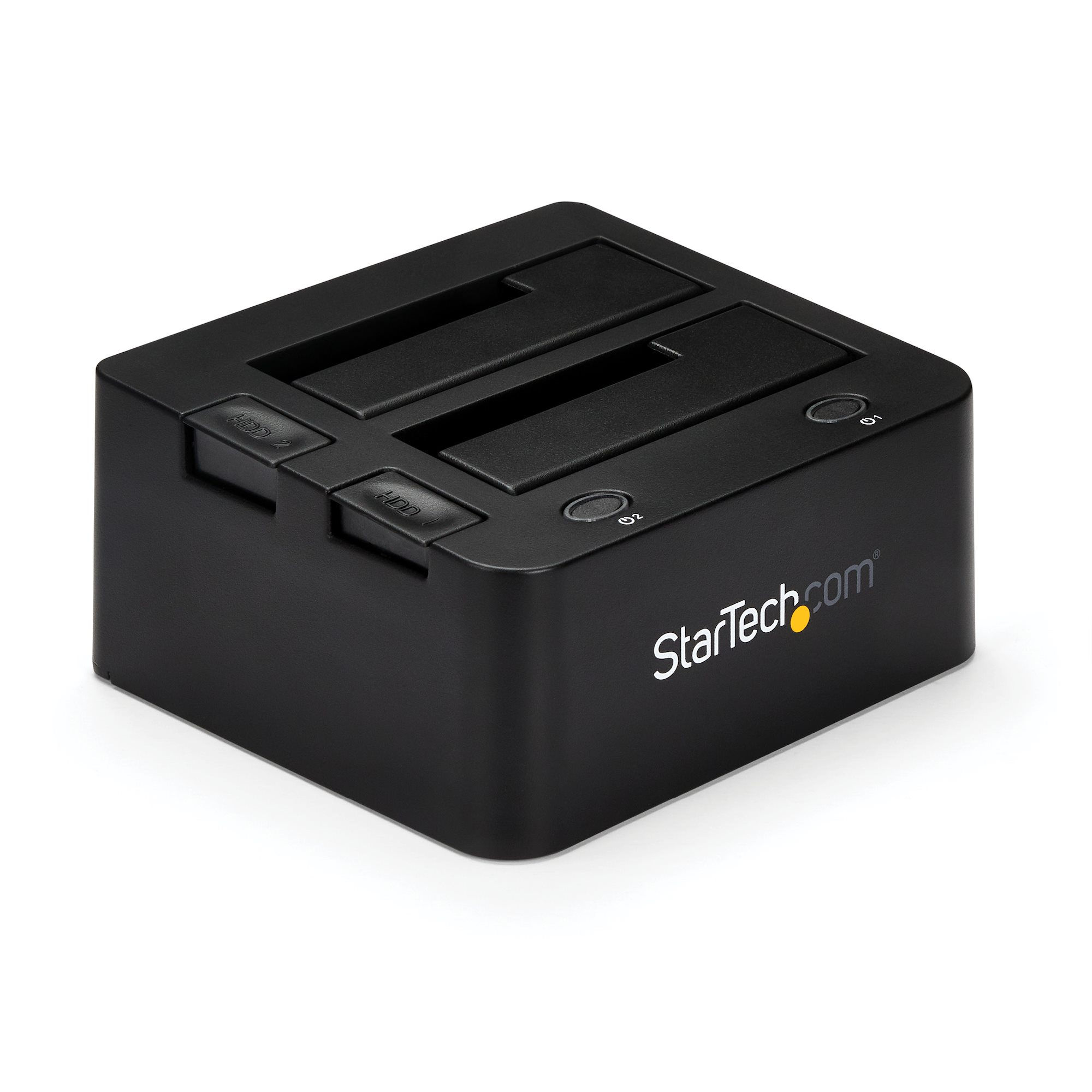

StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading
Brand: StarTech.com · SKU: STA-UNIDOCKU33 · MPN: Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading · Category: Storage
StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading, HDD, SSD, Parallel ATA (IDE), Serial ATA, Serial ATA II, Serial ATA III, 2.5,3.5", 6 TB, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Black
Specifications
| Depth | 147 mm |
|---|---|
| Width | 130 mm |
| Height | 70 mm |
| Manual | Yes |
| Weight | 500 g |
| Chipset | JMicron - JMS561U, JMD330 |
| Hot-swap | Yes |
| Material | Plastic |
| DC-in jack | Yes |
| Built-in fan | No |
| RAID support | No |
| UASP support | Yes |
| Certification | CE, FCC |
| Input current | 1.3 A |
| Package depth | 187 mm |
| Package width | 123 mm |
| Plug and Play | Yes |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| LED indicators | Activity, Power |
| Output current | 3 A |
| Output voltage | 12 V |
| Package height | 214 mm |
| Package weight | 1 kg |
| Product colour | Black |
| Warranty | 3-Year Warranty |
| Weight | 500 g |
| Dimensions | 130 mm x 147 mm x 70 mm |
Product Description
External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA III and IDE The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray. Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details. The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables. A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives). The UNIDOCKU33 is backed by a StarTech.com 2-year warranty and free lifetime technical support. Improved Performance with UASP UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing UASP also shows an 80% reduction in required processor resources. Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive. The StarTech.com Advantage
Key Features
StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading. Storage media type: HDD, SSD, Storage drive interface: Parallel ATA (IDE), Serial ATA, Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B. Product colour: Black, Material: Plastic, Maximum data transfer rate: 5 Gbit/s. AC input voltage: 110-240 V, Input current: 1.3 A, Output voltage: 12 V. Width: 130 mm, Depth: 147 mm, Height: 70 mm
Technical Deployment Advisory
Target Personnel
Storage Fabric Architects
Infrastructure Fit
Database Backends (SQL/Oracle)
"Integrate the STA-UNIDOCKU33 into your Database Backends (SQL/Oracle) to eliminate storage bottlenecks or secure your backup environment while maintaining enterprise standards."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading (STA-UNIDOCKU33) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-UNIDOCKU33.
