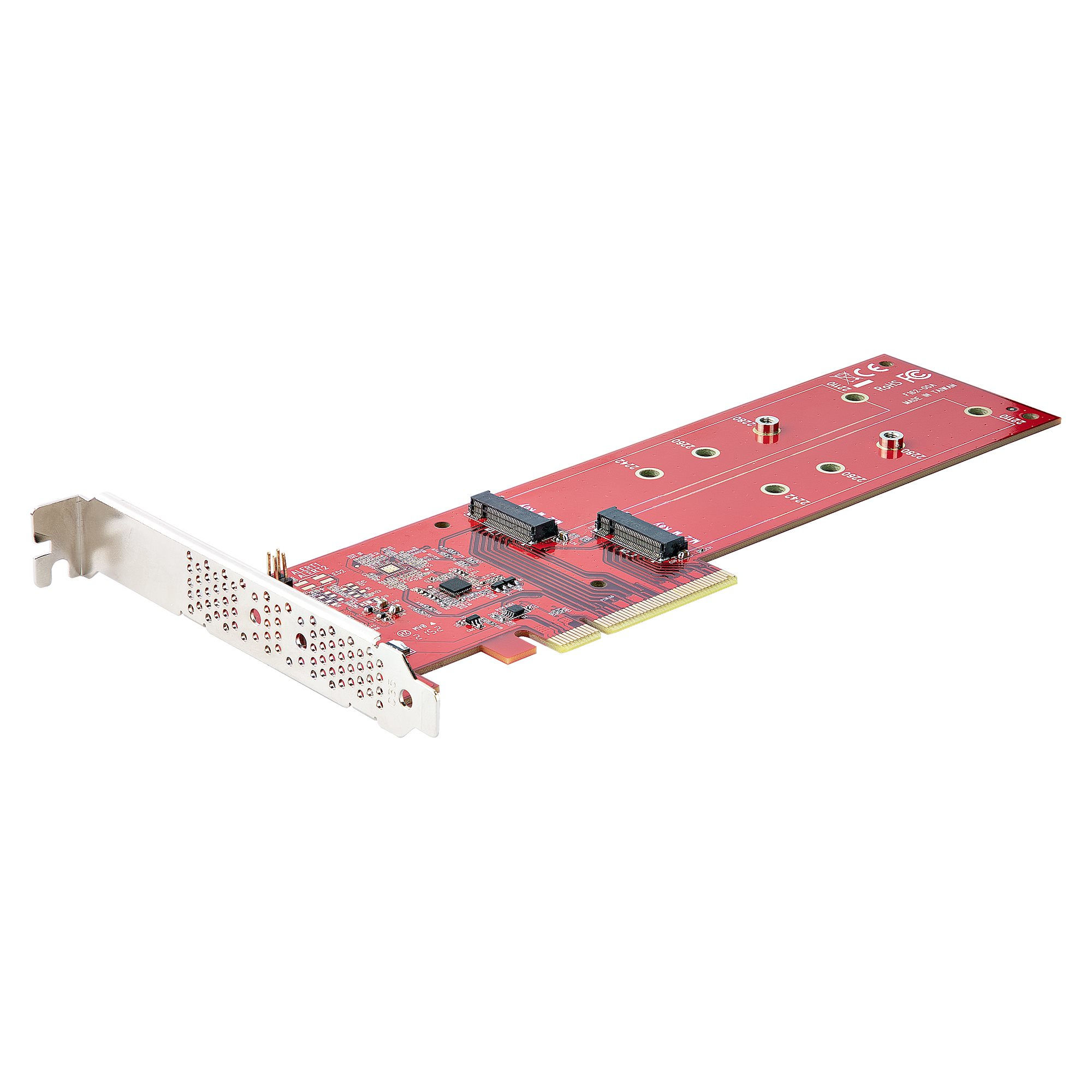

StarTech.com Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible
Brand: StarTech.com · SKU: STA-DUAL-M2-PCIE-CARD-B · MPN: Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible · Category: Storage
StarTech.com Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible, PCIe, M.2, PCIe 4.0, Red, 6493014 h, 7.8 Gbit/s
Specifications
| Depth | 228 mm |
|---|---|
| Width | 102 mm |
| Height | 22 mm |
| Weight | 74 g |
| Hot-swap | No |
| Internal | Yes |
| Package depth | 290 mm |
| Package width | 170 mm |
| Host interface | PCIe |
| LED indicators | Yes |
| Package height | 30 mm |
| Package weight | 192 g |
| Product colour | Red |
| Screws included | Yes |
| Output interface | M.2 |
| Expansion card standard | PCIe 4.0 |
| Data transfer rate (max) | 7.8 Gbit/s |
| Quick installation guide | Yes |
| Master (outer) case width | 380 mm |
| Storage temperature (T-T) | -40 - 85 °C |
| Master (outer) case height | 310 mm |
| Master (outer) case length | 500 mm |
| Mounting brackets included | Yes |
| Operating temperature (T-T) | -40 - 80 °C |
| Warranty | 3-Year Warranty |
| Weight | 74 g |
| Dimensions | 102 mm x 228 mm x 22 mm |
Product Description
Dual M.2 NVMe / AHCI | PCIe 4.0 x8 or x16 Slot | Bifurcation This Dual M.2 PCIe SSD Adapter adds two high performance PCIe M.2 SSDs (NVMe and AHCI) into the PCIe x8 or x16 slot of a desktop, workstation, or server. Boost System Performance Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive. Access two M.2 PCIe SSDs simultaneously No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x8 or x16 PCIe slot that supports PCIe bifurcation. Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance. Wide Compatibility The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems, if the computer/motherboard supports bifurcation. Vented Brackets The included full and low-profile vented brackets increase air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures. The DUAL-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance The StarTech.com Advantage
Key Features
StarTech.com Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 4.0. Product colour: Red, Mean time between failures (MTBF): 6493014 h. Data transfer rate (max): 7.8 Gbit/s. Supported storage drive heights: 22 mm. Width: 102 mm, Depth: 228 mm, Height: 22 mm
Technical Deployment Advisory
Target Personnel
SAN/NAS Specialists
Infrastructure Fit
Big Data Ingestion Clusters
"The StarTech.com STA-DUAL-M2-PCIE-CARD-B is a verified solution for scaling Big Data Ingestion Clusters. It ensures long-term reliability for SAN/NAS Specialists managing critical data assets and archives."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible (STA-DUAL-M2-PCIE-CARD-B) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-DUAL-M2-PCIE-CARD-B.
