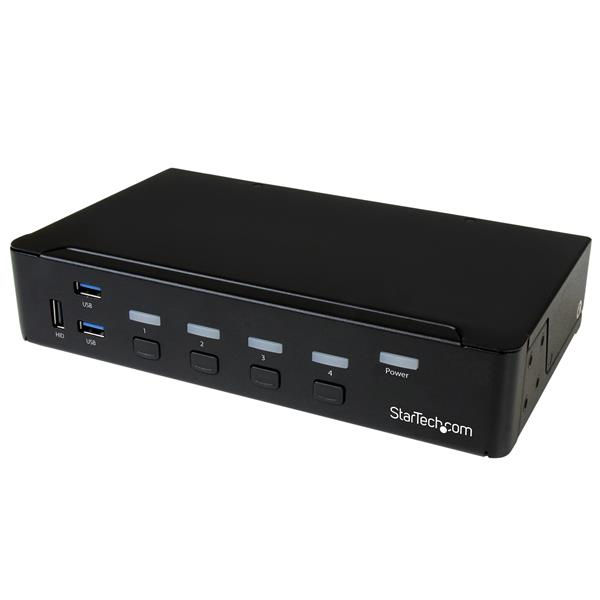

StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz
Brand: StarTech.com · SKU: STA-SV431DPU3A2 · MPN: 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz · Category: Data Center
StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz, 3840 x 2160 pixels, 4K Ultra HD, Rack mounting, 18 W, Black
Specifications
| HDCP | Yes |
|---|---|
| Depth | 220 mm |
| Width | 130 mm |
| Height | 43 mm |
| Weight | 1.06 kg |
| HD type | 4K Ultra HD |
| Hot keys | Yes |
| DC-in jack | Yes |
| IP control | No |
| Daisy chain | No |
| Rubber feet | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN | No |
| Audio support | Yes |
| Certification | CE, FCC, UL, PSE |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Input voltage | 100-240 V |
| Package depth | 297 mm |
| Package width | 244 mm |
| Plug and Play | Yes |
| Rack mounting | Yes |
| Audio channels | 2.0 |
| LED indicators | Link, Power |
| Output current | 1.5 A |
| Warranty | 3-Year Warranty |
| Weight | 1.06 kg |
| Dimensions | 130 mm x 220 mm x 43 mm |
Product Description
Control four DP computers using a single console with a built-in USB 3.0 hub for sharing additional peripheral devices This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub. Convenient and cost-effective USB 3.0 peripheral sharing This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals. With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives. Astonishing picture quality Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support. Complete multimedia control The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing. The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support. Rackmount your KVM switch If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM. The StarTech.com Advantage - Easily share peripheral devices using the built-in USB 3.0 hub - Astonishing picture quality with support for Ultra HD 4K resolutions - Full multimedia control with separate 3.5 mm auxiliary support
Key Features
StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Maximum operating distance: 10 m. Product colour: Black, LED indicators: Link, Power, Certification: CE, FCC, UL, PSE. Input voltage: 100-240 V, Output voltage: 12 V, Output current: 1.5 A. Compliance certificates: RoHS
Technical Deployment Advisory
Target Personnel
NOC Managers
Infrastructure Fit
Edge Compute Deployments
"NOC Managers should consider the STA-SV431DPU3A2 for Edge Compute Deployments where consistent throughput and robust connectivity are mandatory."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz (STA-SV431DPU3A2) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-SV431DPU3A2.
