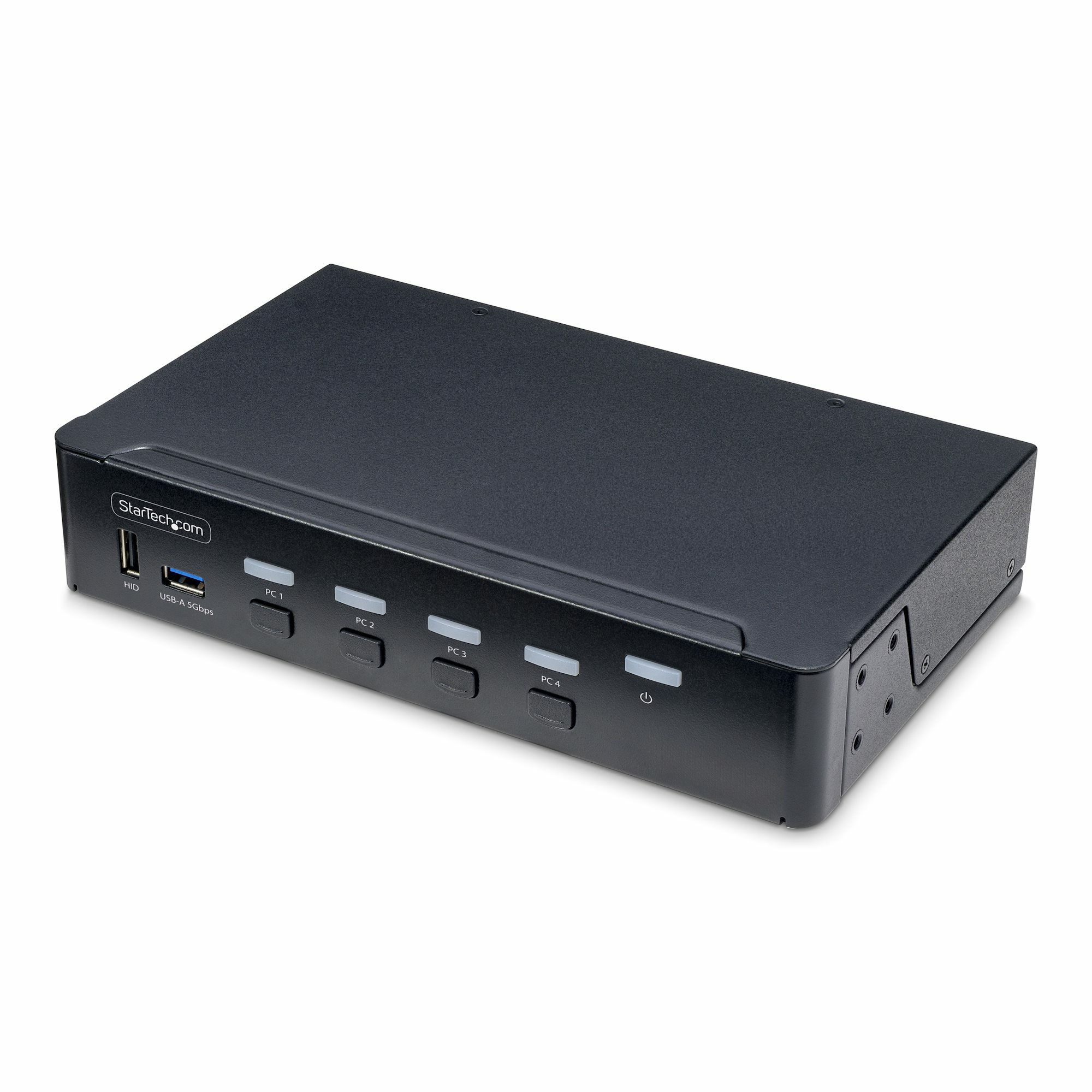

StarTech.com 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports, Push-Button & Hotkey Switching, DisplayPort 1.2, OS Independent, TAA Compliant
Brand: StarTech.com · SKU: STA-P4AD122-KVM-SWITCH · MPN: 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports, Push-Button & Hotkey Switching, DisplayPort 1.2, OS Independent, TAA Compliant · Category: Data Center
StarTech.com 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports, Push-Button & Hotkey Switching, DisplayPort 1.2, OS Independent, TAA Compliant, 4096 x 2160 pixels, 4K Ultra HD, Rack mounting, 36 W, Black
Specifications
| HDCP | Yes |
|---|---|
| Depth | 220 mm |
| Width | 130 mm |
| Height | 44 mm |
| Weight | 1 kg |
| Chipset | GL3523 |
| HD type | 4K Ultra HD |
| USB hub | Yes |
| Hot keys | Yes |
| DC-in jack | Yes |
| IP control | No |
| Push button | Yes |
| Rubber feet | Yes |
| Colour depth | 10 bit |
| HDCP version | 1.4 |
| Power source | DC |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Input current | 1 A |
| Input voltage | 100 - 240, 12 V |
| Package depth | 410 mm |
| Package width | 212 mm |
| Plug and Play | Yes |
| Rack mounting | Yes |
| Scan interval | 3,8,15,30 s |
| Warranty | 3-Year Warranty |
| Weight | 1 kg |
| Dimensions | 130 mm x 220 mm x 44 mm |
Product Description
Share a mouse, keyboard, USB 5Gbps hub, audio output device, and 4K 60Hz DisplayPort display between four DisplayPort-enabled computers This DisplayPort KVM Switch enables users to switch between four desktops equipped with USB-A and DisplayPort. It facilitates sharing a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and four USB 2.0 devices. High-Resolution 4K 60Hz Video This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. In addition, its support for High Dynamic Range (HDR) enhances contrast, brightness, color, and overall vibrancy. Customizable Switching This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host. Universal Compatibility The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M1/M2/M3). Reliable Performance The rugged metal case helps prevent electromagnetic interference (EMI). 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation. The StarTech.com Advantage
Key Features
StarTech.com 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports, Push-Button & Hotkey Switching, DisplayPort 1.2, OS Independent, TAA Compliant. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Data transfer rate (max): 5 Gbit/s. Product colour: Black, Housing material: Metal, Mean time between failures (MTBF): 130000 h. Power source: DC, Input voltage: 100 - 240, 12 V, Input current: 1 A. Compliance certificates: RoHS, Trade Agreements Act (TAA)
