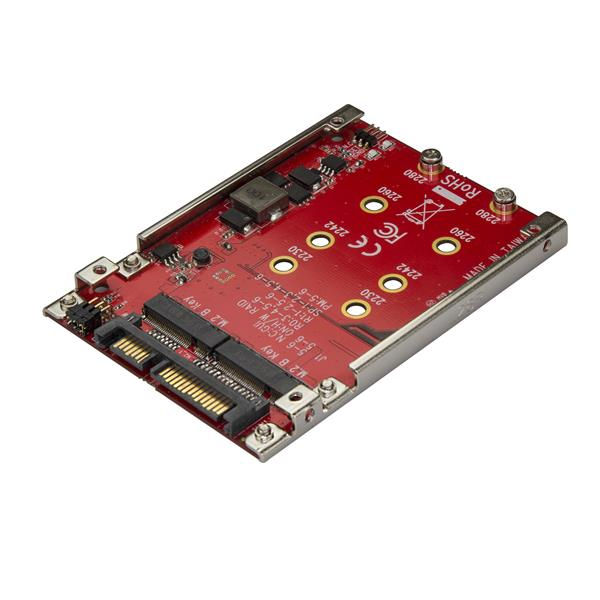

StarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2 Drive Host Adapter/Converter with RAID Support, 2.5-Inch Drive Form Factor, TAA
Brand: StarTech.com · SKU: STA-S322M225R · MPN: M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2 Drive Host Adapter/Converter with RAID Support, 2.5-Inch Drive Form Factor, TAA · Category: Components
StarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2 Drive Host Adapter/Converter with RAID Support, 2.5-Inch Drive Form Factor, TAA, SATA, M.2, Red, CE, FCC, REACH, TAA, ASMedia - ASM1092R, 6 Gbit/s
Specifications
| Depth | 100 mm |
|---|---|
| Width | 70 mm |
| Height | 7 mm |
| Weight | 41 g |
| Chipset | ASMedia - ASM1092R |
| Hot-swap | No |
| Internal | Yes |
| RAID levels | 0, 1, BIG, JBOD |
| TRIM support | Yes |
| Certification | CE, FCC, REACH, TAA |
| Package depth | 142 mm |
| Package width | 172 mm |
| Plug and Play | Yes |
| SATA revision | 3.0 |
| Host interface | SATA |
| Package height | 30 mm |
| Package weight | 110 g |
| Product colour | Red |
| Easy to install | Yes |
| Port multiplier | Yes |
| Screws included | Yes |
| Output interface | M.2 |
| S.M.A.R.T. support | Yes |
| Compliance certificates | RoHS |
| Warranty | 3-Year Warranty |
| Weight | 41 g |
| Dimensions | 70 mm x 100 mm x 7 mm |
Product Description
Create high-performance storage with configurable RAID, by installing two M.2 SATA SSDs into a 2.5” SATA interface Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5” drive bay, and increase your storage options by configuring a powerful RAID array. Build a RAID array to enhance system performance The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another. Maximize file transfer speeds The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps. The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs. Easy installation This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn’t require any extra software or drivers, to get you up and running quickly. The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key Features
StarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2 Drive Host Adapter/Converter with RAID Support, 2.5-Inch Drive Form Factor, TAA. Host interface: SATA, Output interface: M.2. Product colour: Red, Certification: CE, FCC, REACH, TAA. Chipset: ASMedia - ASM1092R, Data transfer rate (max): 6 Gbit/s, RAID levels: 0, 1, BIG, JBOD. Width: 70 mm, Depth: 100 mm, Height: 7 mm. Package width: 172 mm, Package depth: 142 mm, Package height: 30 mm
Technical Deployment Advisory
Target Personnel
SAN/NAS Specialists
Infrastructure Fit
Big Data Ingestion Clusters
"The StarTech.com STA-S322M225R is a verified solution for scaling Big Data Ingestion Clusters. It ensures long-term reliability for SAN/NAS Specialists managing critical data assets and archives."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2 Drive Host Adapter/Converter with RAID Support, 2.5-Inch Drive Form Factor, TAA (STA-S322M225R) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2 Drive Host Adapter/Converter with RAID Support, 2.5-Inch Drive Form Factor, TAA includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com M.2 to SATA Adapter for M.2 SATA SSDs, Dual Slot M2 Drive Host Adapter/Converter with RAID Support, 2.5-Inch Drive Form Factor, TAA compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-S322M225R.
