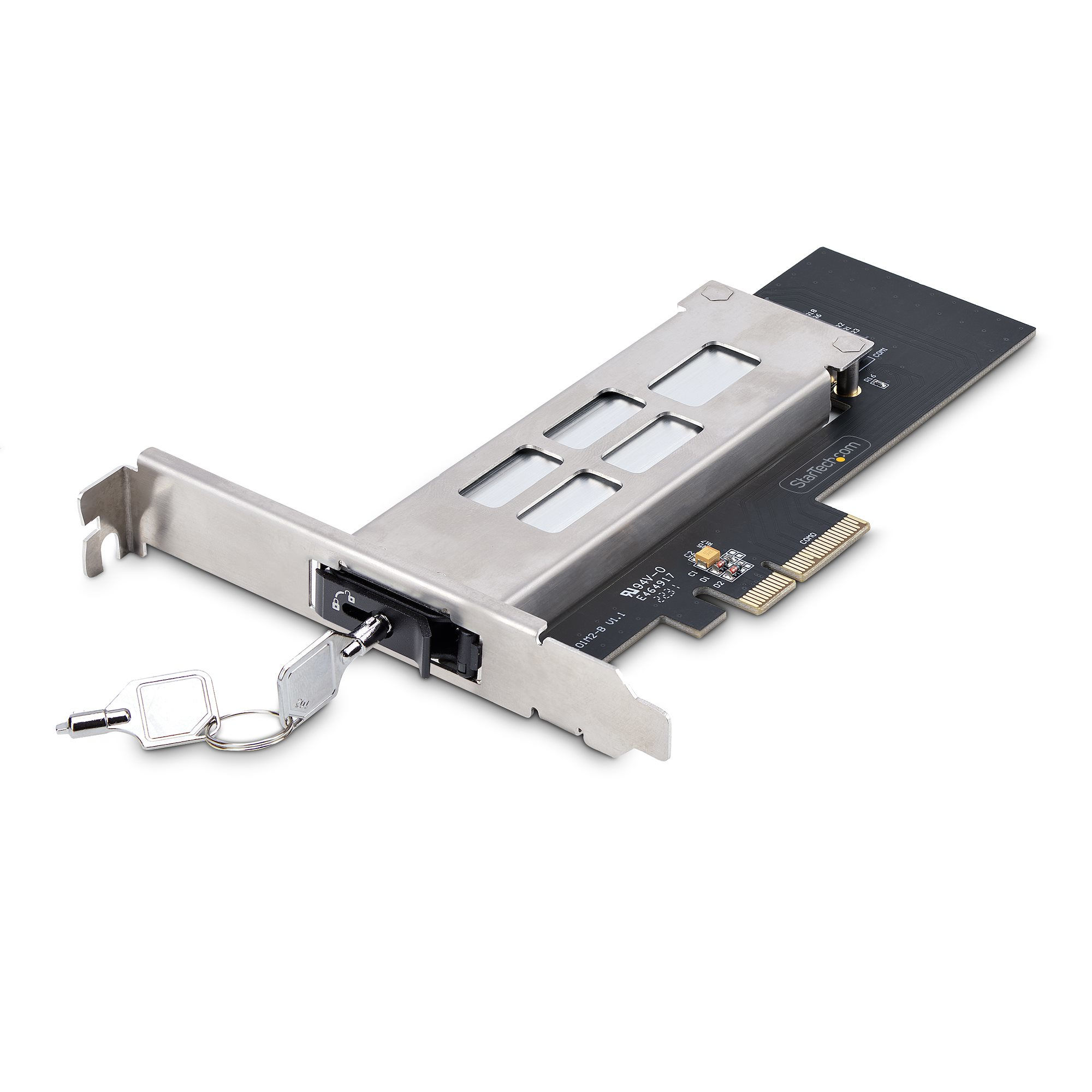

StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included
Brand: StarTech.com · SKU: STA-M2-REMOVABLE-PCIE-N1 · MPN: M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included · Category: Storage
StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included, PCIe, M.2, PCIe 4.0, Black, Silver, PC, 10000 h
Specifications
| Depth | 167 mm |
|---|---|
| Width | 120 mm |
| Height | 19 mm |
| Weight | 65 g |
| Purpose | PC |
| Hot-swap | Yes |
| Internal | Yes |
| TRIM support | Yes |
| Package depth | 230 mm |
| Package width | 151 mm |
| Plug and Play | Yes |
| Host interface | PCIe |
| LED indicators | Yes |
| Number of fans | 0 fan(s) |
| Package height | 46 mm |
| Package weight | 215 g |
| Product colour | Black, Silver |
| Output interface | M.2 |
| S.M.A.R.T. support | Yes |
| Compliance certificates | RoHS |
| Expansion card standard | PCIe 4.0 |
| Data transfer rate (max) | 64 Gbit/s |
| Quick installation guide | Yes |
| Master (outer) case width | 325 mm |
| Warranty | 3-Year Warranty |
| Weight | 65 g |
| Dimensions | 120 mm x 167 mm x 19 mm |
Product Description
Install into a PCIe x 4 (and up) expansion slot to add a removable and lockable M.2 NVMe drive tray (drive not included) Utilize an available PCIe 4.0 x4 expansion slot for the installation, removal, or interchange of PCIe M.2 SSDs. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes. Toolless Installation Install an M.2 drive into the drive tray and insert the tray into the drive bay, without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices. Optimal Performance The vented stainless-steel frame and tray with thermal pads aids heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive. A low-profile bracket is included for small form-factor systems. Hot-Swappable Additional drive trays (TR-M2-REMOVABLE-PCIE, sold separately) provide flexibility and convenience when managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard, and for instructions regarding how to enable this feature. The StarTech.com Advantage
Key Features
StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 4.0. Product colour: Black, Silver, Purpose: PC, Mean time between failures (MTBF): 10000 h. Data transfer rate (max): 64 Gbit/s. Width: 120 mm, Depth: 167 mm, Height: 19 mm. Package width: 151 mm, Package depth: 230 mm, Package height: 46 mm
Technical Deployment Advisory
Target Personnel
Database Administrators
Infrastructure Fit
Cold Storage / Archival Nodes
"The StarTech.com STA-M2-REMOVABLE-PCIE-N1 is a verified solution for scaling Cold Storage / Archival Nodes. It ensures long-term reliability for Database Administrators managing critical data assets and archives."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included (STA-M2-REMOVABLE-PCIE-N1) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-M2-REMOVABLE-PCIE-N1.
