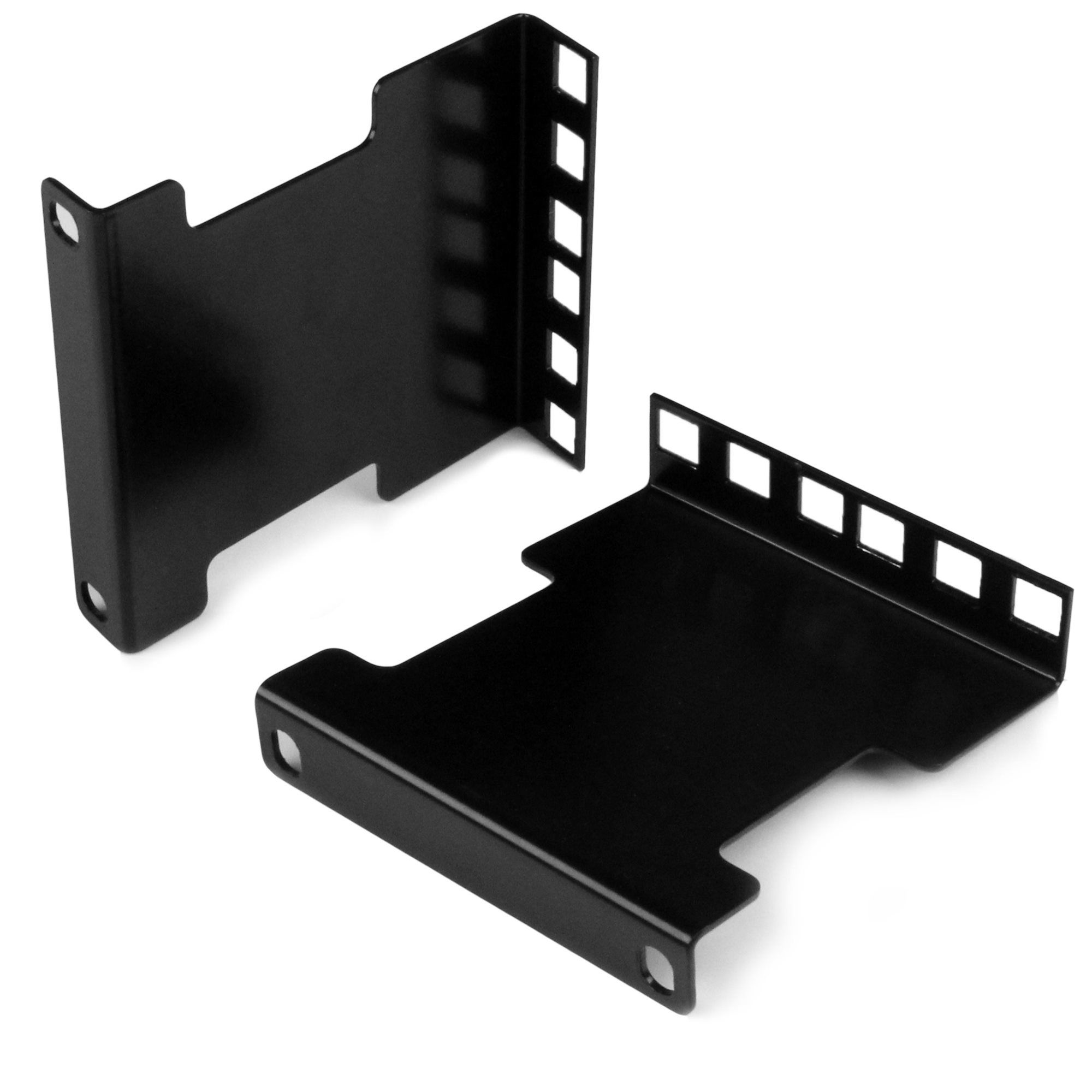

StarTech.com 2U Server Rack Depth Extender Adapter Kit with 4” Adjustment
Brand: StarTech.com · SKU: STA-RDA2U · MPN: 2U Server Rack Depth Extender Adapter Kit with 4” Adjustment · Category: Data Center
StarTech.com 2U Server Rack Depth Extender Adapter Kit with 4” Adjustment, Depth adapter, Black, 2 pc(s), 246.8 g
Specifications
| Type | Depth adapter |
|---|---|
| Depth | 113 mm |
| Width | 90 mm |
| Height | 25 mm |
| Weight | 246.8 g |
| Screw type | 10-32 x 5/8 |
| Certification | CE, TAA, REACH |
| Nuts included | Yes |
| Package depth | 210 mm |
| Package width | 120 mm |
| Rack capacity | 2U |
| Number of nuts | 4 |
| Package height | 25 mm |
| Package weight | 289.4 g |
| Product colour | Black |
| Screws included | Yes |
| Number of screws | 4 |
| Quantity per pack | 2 pc(s) |
| Compliance certificates | RoHS |
| Maximum weight capacity | 59 kg |
| Quick installation guide | Yes |
| Master (outer) case width | 238 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case length | 300 mm |
| Warranty | 3-Year Warranty |
| Weight | 246.8 g |
| Dimensions | 90 mm x 113 mm x 25 mm |
Product Description
Rail Depth Adapter Kit | Recess or Extend | Universal | TAA Compliant This server rack depth extender adapter kit extends or reduces the mounting depth of two units (2U) in your server rack by up to four inches. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases. Accommodate Varying Equipment Sizes Mount equipment in your server rack up to four inches longer or shorter than the rack's mounting depth and increase your rack’s storage capabilities. If using the 2U rack extender in a two-post installation, they can support a total weight load of 20 lb. (9 kg) and in a four-post installation, they can support a total weight load of 130 lb. (59 kg). Save Money With this rail depth adapter kit, you can customize your server rack to support different mounting depths and consolidate your equipment into a single rack, eliminating the need to purchase different sized racks. Easily Manage Cables The network rack extender kit can also help manage your cables. You can mount equipment four inches from the rails, to prevent cables from protruding from the rack. You can also mount equipment with high-density cabling to minimize the effects of cable strain and provide easier access to the cables. We offer a wide selection of products that help you to optimize your server rack storage space, to improve space efficiency, accessibility and convenience. This product is backed by a 2-year warranty and free lifetime North American based technical support. The StarTech.com Advantage
Key Features
StarTech.com 2U Server Rack Depth Extender Adapter Kit with 4” Adjustment. Type: Depth adapter, Product colour: Black. Quantity per pack: 2 pc(s). Weight: 246.8 g
Technical Deployment Advisory
Target Personnel
Enterprise SysAdmins
Infrastructure Fit
High-Performance Computing (HPC)
"For Enterprise SysAdmins scaling their High-Performance Computing (HPC) stack, the StarTech.com STA-RDA2U offers tested interoperability and enterprise-grade thermal management."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2U Server Rack Depth Extender Adapter Kit with 4” Adjustment (STA-RDA2U) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2U Server Rack Depth Extender Adapter Kit with 4” Adjustment includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2U Server Rack Depth Extender Adapter Kit with 4” Adjustment compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-RDA2U.
