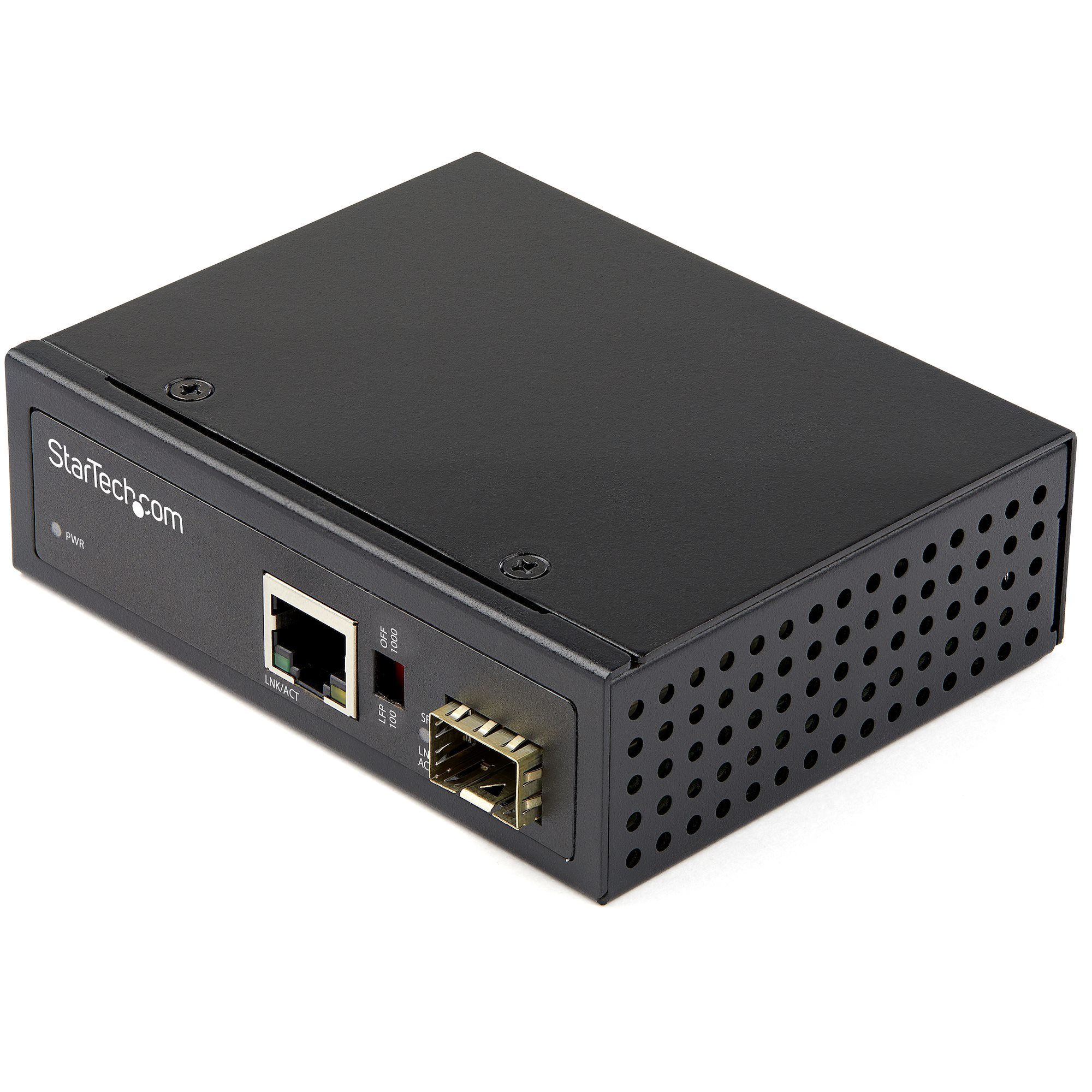

StarTech.com Industrial Fiber to Ethernet Media Converter - 10/100/1000 Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C
Brand: StarTech.com · SKU: STA-IMC1GSFP · MPN: Industrial Fiber to Ethernet Media Converter - 10/100/1000 Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C · Category: Networking
StarTech.com Industrial Fiber to Ethernet Media Converter - 10/100/1000 Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C, 1000 Mbit/s, IEEE 802.3, IEEE 802.3x, Full, Cat6, Multi-mode, Single-mode, 569265 h
Specifications
| Depth | 104 mm |
|---|---|
| Width | 81.5 mm |
| Height | 32 mm |
| Weight | 144 g |
| Internal | No |
| User guide | Yes |
| Jumbo frames | 9000 |
| Duplex system | Full |
| Input voltage | 12 - 56 V |
| Package depth | 162 mm |
| Package width | 211 mm |
| Auto MDI/MDI-X | Yes |
| LED indicators | Yes |
| Package height | 64 mm |
| Package weight | 386 g |
| Product colour | Black |
| Power plug type | Type N |
| Housing material | Aluminium |
| DIN rail mounting | Yes |
| Fiber mode structure | Multi-mode, Single-mode |
| Fiber ports quantity | 1 |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3x |
| Cable types supported | Cat6 |
| Warranty | 3-Year Warranty |
| Weight | 144 g |
| Dimensions | 81.5 mm x 104 mm x 32 mm |
Product Description
Gigabit Media Converter | SFP to RJ45 (Cat6) | MTBF: 500,000+hrs @ 50°C | 12V-56VDC | Works with 100 Mbps SFPs An industrial media converter that converts fiber to copper at a network endpoint. A Flexible Solution Covering Different Requirements This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting. For Mission-Critical Applications Designed with IP-30 housing and has an MBTF of >500;000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards: • Vibration: EN 60068-2-6 • Shock: EN 60068-2-27 • Free-Fall: EN 60068-2-32 The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage
Key Features
StarTech.com Industrial Fiber to Ethernet Media Converter - 10/100/1000 Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3x, Duplex system: Full. Fiber mode structure: Multi-mode, Single-mode, Mean time between failures (MTBF): 569265 h. Product colour: Black, Housing material: Aluminium, International Protection (IP) code: IP30. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 12 - 56 V, Power plug type: Type N
Technical Deployment Advisory
Target Personnel
NOC Managers
Infrastructure Fit
Edge Compute Deployments
"NOC Managers should consider the STA-IMC1GSFP for Edge Compute Deployments where consistent throughput and robust connectivity are mandatory."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com Industrial Fiber to Ethernet Media Converter - 10/100/1000 Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C (STA-IMC1GSFP) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com Industrial Fiber to Ethernet Media Converter - 10/100/1000 Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com Industrial Fiber to Ethernet Media Converter - 10/100/1000 Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-IMC1GSFP.
