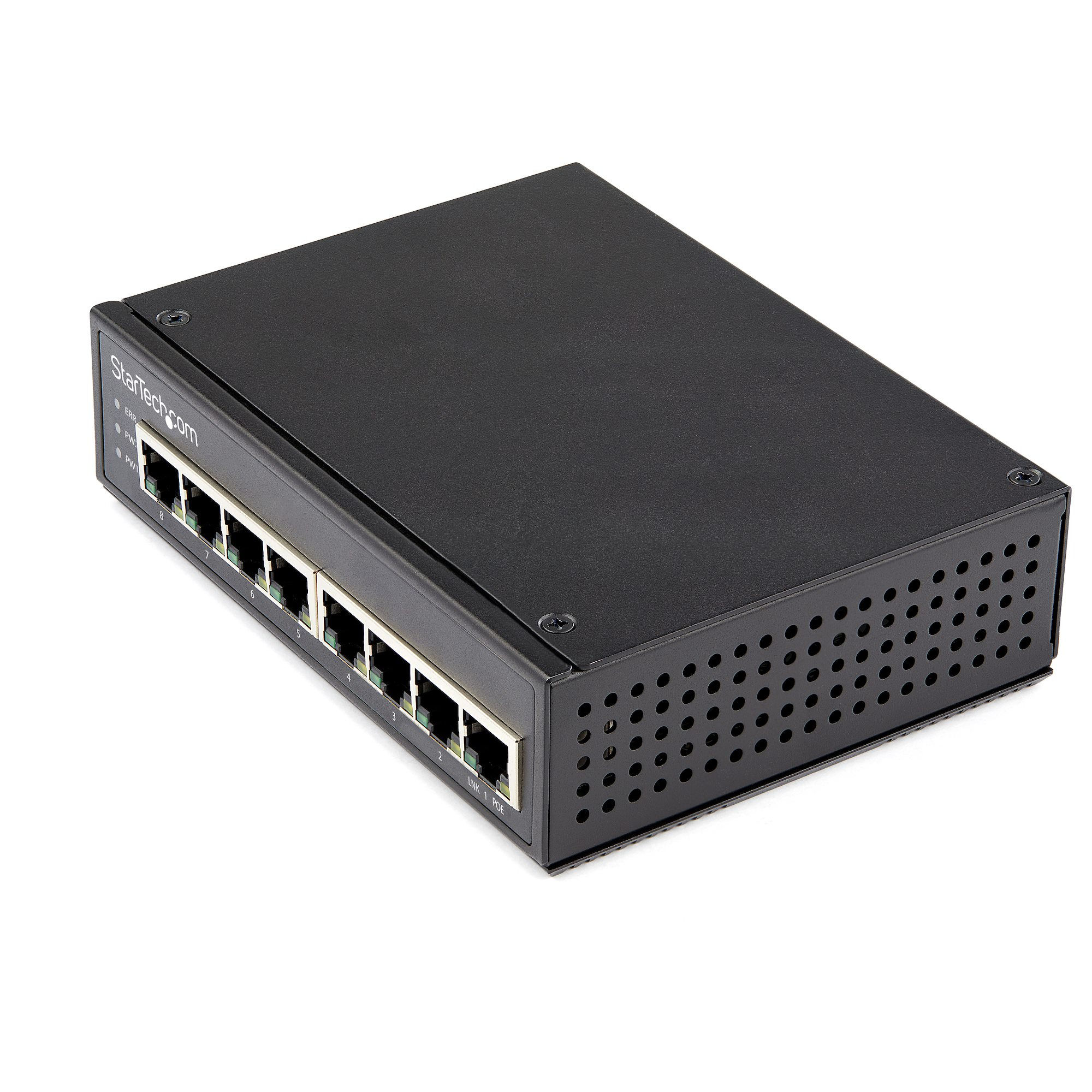

StarTech.com Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C
Brand: StarTech.com · SKU: STA-IESC1G80UP · MPN: Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C · Category: Networking
StarTech.com Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Specifications
| Depth | 142 mm |
|---|---|
| Width | 105 mm |
| Height | 39.6 mm |
| Weight | 536 g |
| 10G support | No |
| Buffer size | 128 KB |
| Full duplex | Yes |
| Switch type | Unmanaged |
| Jumbo frames | 9000 |
| Certification | CE, FCC, UL, ROhS |
| Package depth | 162 mm |
| Package width | 211 mm |
| Rack mounting | No |
| Auto MDI/MDI-X | Yes |
| LED indicators | Yes |
| Package height | 64 mm |
| Package weight | 781 g |
| Product colour | Black |
| Wall mountable | Yes |
| DC input voltage | 48 - 56 V |
| Housing material | Aluminium |
| Surge protection | Yes |
| DIN rail mounting | Yes |
| Quick start guide | Yes |
| Warranty | 3-Year Warranty |
| Weight | 536 g |
| Dimensions | 105 mm x 142 mm x 39.6 mm |
Product Description
Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 8 Port This industrial 8 port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments and supports up to a total of 200W power outputs. Includes hardware for DIN rail or wall mounting. For Demanding Environments Where No Fiber Connections Are Required Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like: Cameras Sensors Wi-Fi Access Points High total power budget with high PoE port count at a maximum of 30 watts per port, up to 200 watts max. Power provided in order of device connection; max 6 802.3at (30W) devices (180W total) at any time. Truly Industrial for Devices That Must Function Under Harsh Conditions Industrial features include: Operating Temperature Range: -40 C to 75 C IP-30 rated housing Vibration, shock, and free-fall standard testing This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 500,000+ hrs (Telcordia/Bellcore) at 50°C, for long-term reliability. The StarTech.com Advantage - POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) - Use with devices like cameras & access points using Cat 5e/6 - TECH SPECS: 8 port GbE PoE switch
Key Features
StarTech.com Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. Switching capacity: 16000 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable
Technical Deployment Advisory
Target Personnel
Spine-Leaf Architects
Infrastructure Fit
Core Aggregation Layer
"Spine-Leaf Architects should consider the STA-IESC1G80UP for Core Aggregation Layer where consistent throughput and robust connectivity are mandatory."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C (STA-IESC1G80UP) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-IESC1G80UP.
