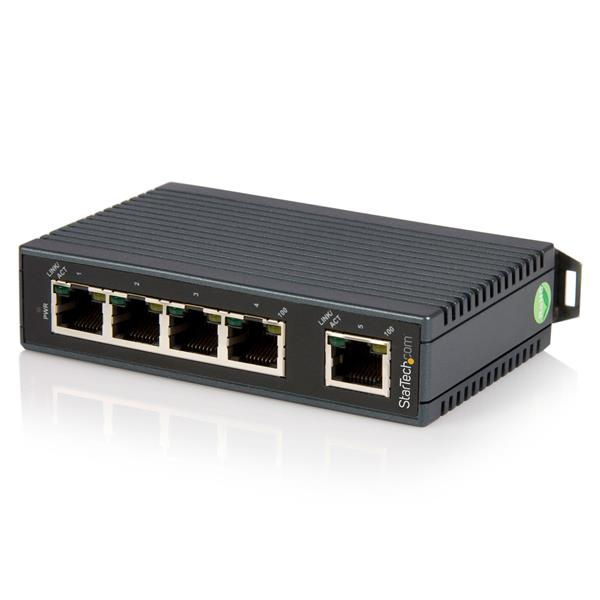

StarTech.com 5-port industrial Ethernet switch - DIN rail mountable
Brand: StarTech.com · SKU: STA-IES5102 · MPN: 5-port industrial Ethernet switch - DIN rail mountable · Category: Networking
StarTech.com 5-port industrial Ethernet switch - DIN rail mountable, Unmanaged, Fast Ethernet (10/100), Full duplex, Rack mounting. StarTech.com 5-port industrial Ethernet switch - DIN rail mountable (part number STA-IES5102) is an enterprise switches product available from Server Tech Central. Key specifications include depth 70 mm, width 25 mm, height 110 mm, manual Yes, weight 148 g, 10g support No, buffer size 56 KB, full duplex Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 70 mm |
|---|---|
| Width | 25 mm |
| Height | 110 mm |
| Manual | Yes |
| Weight | 148 g |
| 10G support | No |
| Buffer size | 56 KB |
| Full duplex | Yes |
| Switch type | Unmanaged |
| Certification | CE, FCC |
| Input voltage | 12 - 48 V |
| Package depth | 198 mm |
| Package width | 178 mm |
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
| LED indicators | Activity, Link, Power |
| Package height | 79 mm |
| Package weight | 312 g |
| Product colour | Black |
| Auto-negotiation | Yes |
| Housing material | Plastic |
| Store-and-forward | Yes |
| Jumbo frames support | No |
| Maximum cable length | 100 m |
| Warranty | 3-Year Warranty |
| Weight | 148 g |
| Dimensions | 25 mm x 70 mm x 110 mm |
Product Description
Expand your network connectivity with this rugged unmanaged 10/100Mbps switch This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses. Conquer the tough demands of industrial environments Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly. Get up and running in no time This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets. Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required. Reduce your energy costs with Energy-Efficient Ethernet With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs. The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch - Wide-range 12-48V DC terminal block input - Easy installation with an integrated DIN rail bracket
Key Features
StarTech.com 5-port industrial Ethernet switch - DIN rail mountable. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex, Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Rack mounting
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 5-port industrial Ethernet switch - DIN rail mountable (STA-IES5102) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 5-port industrial Ethernet switch - DIN rail mountable includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 5-port industrial Ethernet switch - DIN rail mountable compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-IES5102.
