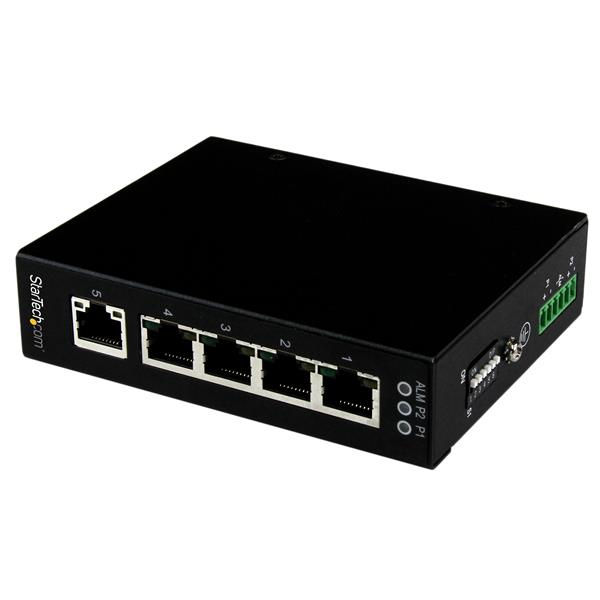

StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
Brand: StarTech.com · SKU: STA-IES51000 · MPN: 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable · Category: Networking
StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable. StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable (part number STA-IES51000) is an enterprise switches product available from Server Tech Central. Key specifications include depth 111 mm, width 89 mm, height 28 mm, manual Yes, weight 328 g, 10g support No, buffer size 128 KB, full duplex Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 111 mm |
|---|---|
| Width | 89 mm |
| Height | 28 mm |
| Manual | Yes |
| Weight | 328 g |
| 10G support | No |
| Buffer size | 128 KB |
| Full duplex | Yes |
| Switch type | Unmanaged |
| Certification | CE, FCC, RoHS, REACH |
| Input voltage | 12 - 58 V |
| Package depth | 176 mm |
| Package width | 139 mm |
| Auto MDI/MDI-X | Yes |
| LED indicators | Activity, Link, Power |
| Package height | 83 mm |
| Package weight | 523 g |
| Product colour | Black |
| Wall mountable | Yes |
| Power connector | DC-in jack |
| Screws included | Yes |
| Housing material | Steel |
| Link aggregation | Yes |
| DIN rail included | Yes |
| Warranty | 3-Year Warranty |
| Weight | 328 g |
| Dimensions | 89 mm x 111 mm x 28 mm |
Product Description
Network up to 5 Ethernet devices through a rugged, industrial Gigabit Ethernet switch - DIN / Wall Mountable The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes. Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings. Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs. For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C). Backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Seamless performance even in harsh industrial conditions, with an extended temperature range and an IP30-rated enclosure - Maintain device operation during power disruptions, with redundant power inputs - Install the switch exactly where you need it, using the included DIN Rail & wall-mount brackets
Key Features
StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. Switching capacity: 2 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u. Power connector: DC-in jack. Wall mountable
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable (STA-IES51000) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-IES51000.
