StarTech.com Thunderbolt 3 to 10GbE Fiber Network Chassis 4 Port

Brand: StarTech.com · SKU: STA-BNDTB410GSFP · MPN: Thunderbolt 3 to 10GbE Fiber Network Chassis 4 Port · Category: Components

StarTech.com Thunderbolt 3 to 10GbE Fiber Network Chassis 4 Port
$1,580.30
In Stock • 10 units

StarTech.com Thunderbolt 3 to 10GbE Fiber Network Chassis 4 Port, Wired, Thunderbolt 3, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, Black, 40 Gbit/s, Activity, Link

View Components Products

Specifications

Depth280 mm
Width142 mm
Height82 mm
Weight1.6 kg
ChipsetIntel - Alpine Ridge DSL6540, Intel - XL710
PCI slotPCI-E x8
DC-in jackYes
Full duplexYes
Built-in fanYes
Ethernet LANNo
Input current2 A
Microphone inYes
Package depth360 mm
Package width290 mm
Host interfaceThunderbolt 3
LED indicatorsActivity, Link
Output current5.417 A
Output voltage12 V
Package height145 mm
Package weight3.6 kg
Product colourBlack
Cables includedThunderbolt
Power plug typeType N
AC input voltage100 - 240 V
Warranty3-Year Warranty
Weight1.6 kg
Dimensions142 mm x 280 mm x 82 mm

Product Description

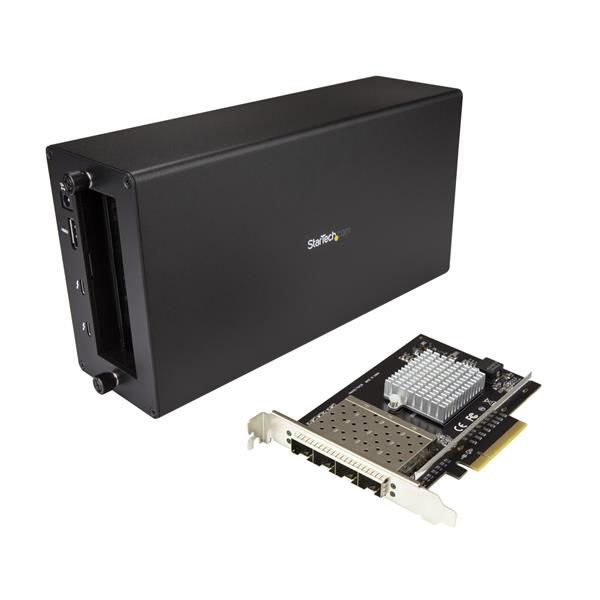

This Thunderbolt 3 network adapter connects your Thunderbolt 3 enabled device to a 10GbE network via a PCIe expansion chassis This Thunderbolt 3 10GbE NIC adapter lets you connect a Thunderbolt 3 device to a 10GbE network. The adapter combines the Thunderbolt 3 technology of TB31PCIEX16 with the 10GbE dual-fiber connection of PEX10GSFP4I (Intel XL710 chipset). The assembled adapter features one DisplayPort output, one additional Thunderbolt 3 port, and four open 10GbE SFP+ slots. Mission-critical connectivity The Thunderbolt 3 10GbE NIC adapter is the perfect solution for your mission-critical operations. The network adapter supports 802.1Q VLAN tagging for better network management, 802.3ad link aggregation for greater network speeds, redundancy support for network reliability, and four 10G fiber connections through open SFP+ fiber slots, to build a custom setup. Install and assemble with ease Requiring only a Phillips type screwdriver and your choice of SFP, this Thunderbolt 3 10GbE NIC adapter can be assembled and connected in minutes. Change up your chassis The Thunderbolt 3 chassis not only pairs well with the 10G fiber network card, the card can be swapped for any PCIe card to help support other functionality and performance. With the extra TB3 port and DP output built into the chassis, you will always have the ability to hook up extended displays to multitask effortlessly. The TB31PCIEX16 and PEX10GSFP4I are backed by a StarTech.com 2-year warranty. The StarTech.com Advantage - Get the increased bandwidth, speed, reliability and security of a 10 GbE NIC, using your computer’s Thunderbolt 3 port - Upgrade your peripherals without having to upgrade your chassis, by just switching out the PCIe NIC card - Assemble and install easily, with just a screwdriver

Key Features

StarTech.com Thunderbolt 3 to 10GbE Fiber Network Chassis 4 Port. Connectivity technology: Wired, Host interface: Thunderbolt 3. Networking standards: IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x. Product colour: Black, Data transfer rate: 40 Gbit/s, LED indicators: Activity, Link. AC input voltage: 100 - 240 V, Input current: 2 A, Output voltage: 12 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Technical Deployment Advisory

Target Personnel

Network Fabric Engineers

Infrastructure Fit

Secure Campus Backbones

"Network Fabric Engineers should consider the STA-BNDTB410GSFP for Secure Campus Backbones where consistent throughput and robust connectivity are mandatory."

Frequently Asked Questions

Is this product genuine OEM?

Yes, this StarTech.com Thunderbolt 3 to 10GbE Fiber Network Chassis 4 Port (STA-BNDTB410GSFP) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This StarTech.com Thunderbolt 3 to 10GbE Fiber Network Chassis 4 Port includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the StarTech.com Thunderbolt 3 to 10GbE Fiber Network Chassis 4 Port compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-BNDTB410GSFP.
