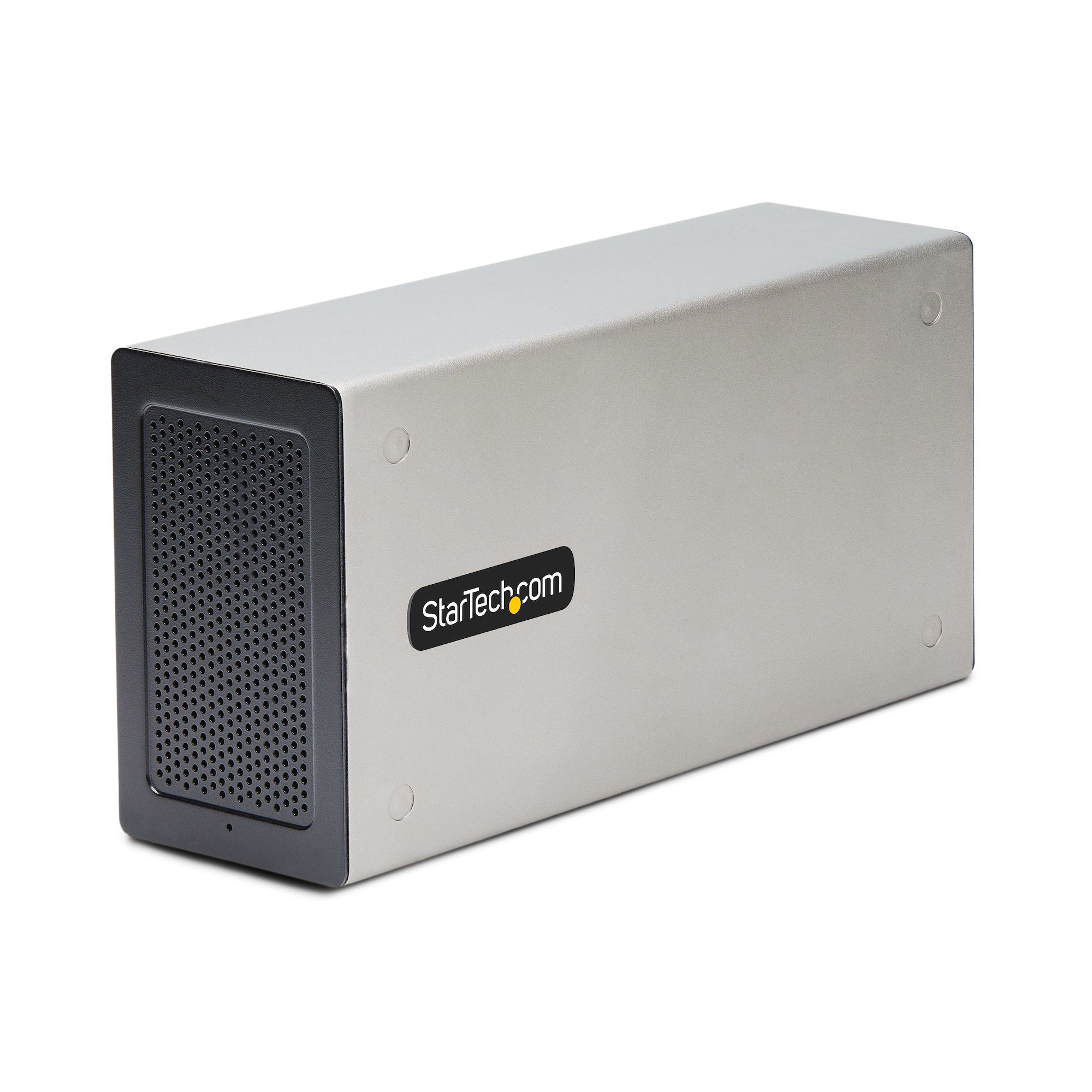

StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards - TAA
Brand: StarTech.com · SKU: STA-2TBT3-PCIE-ENCLOSURE · MPN: Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards - TAA · Category: Components
StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards - TAA, Wired, Thunderbolt 3, Silver, 8K Ultra HD, 60 Hz, Power
Specifications
| Depth | 84 mm |
|---|---|
| Width | 281 mm |
| Height | 142 mm |
| Weight | 1.6 kg |
| Chipset | Titan Ridge DSL7440 (x2), Ti TPS65983B (x2) |
| HD type | 8K Ultra HD |
| Rubber feet | Yes |
| Built-in fan | Yes |
| Ethernet LAN | No |
| Fan diameter | 6 cm |
| PCIe version | 3.0 |
| Input current | 3 A |
| Microphone in | No |
| Package depth | 353 mm |
| Package width | 285 mm |
| Host interface | Thunderbolt 3 |
| LED indicators | Power |
| Number of fans | 1 fan(s) |
| Output current | 10 A |
| Output voltage | 12 V |
| Package height | 143 mm |
| Package weight | 3.4 kg |
| Product colour | Silver |
| Cables included | Thunderbolt |
| Warranty | 3-Year Warranty |
| Weight | 1.6 kg |
| Dimensions | 281 mm x 84 mm x 142 mm |
Product Description
Add dual external PCIe (PCI Express 3.0) slots, Thunderbolt 3 ports, and a DisplayPort connection to a Thunderbolt 3 equipped system. Add two PCI-Express 3.0 x16 capable cards and increase the potential of a Thunderbolt 3 or 4 capable laptop, desktop, or all-in-one system. This Thunderbolt 3 PCIe Expansion Chassis lets you take advantage of the vast range of PCIe expansion cards with computers that lack PCIe slots. The chassis lets you connect an external monitor via the DisplayPort (DP) or Thunderbolt 3 ports, supporting Ultra High Definition (UHD) 4K or 8K resolutions. Enhanced Computer Capabilities Connect the expansion box to a Thunderbolt 3 or 4 computer with the included 3.3ft (1m) Thunderbolt-certified cable. The chassis features dual PCIe 3.0 x16 slots with 32Gbps of bandwidth that is shared dynamically between both slots (each slot supports up to 2700MBps/21.6Gbps). Add extra functionality to a host device using video capture cards, high-speed fiber or Ethernet networking, NVMe drives, FireWire, sound cards, or any other PCIe-compatible card. Flexible Card Support The expansions chassis supports single-slot cards to a maximum length of 8in (20.3cm), allowing current or legacy PCIe cards to be installed. The built-in fan ensures active cooling for your hardware, preventing overheating during heavy usage. The TAA-Compliant chassis delivers up to 25W per slot, ensuring optimal performance for your connected devices. In addition, the two internal 12V 15W SATA power ports ensure the installed cards have enough power (up to 40W per card) at their disposal. 8K & 4K Monitor Support Connect a second high-resolution monitor using the DP 1.4 or Thunderbolt 3 ports at the back of the chassis. Enjoy video resolutions of up to single 8K or 5K 60Hz or dual 4K 60Hz (other video resolutions are also supported). Compatibility The enclosure is driverless, enabling rapid deployment and is supported in macOS, Windows, and Linux. The chassis can be placed horizontally or vertically, adapting to your workspace. The toolless design and aluminum construction ensure fast card installation and longevity. Note: Some expansion cards installed in the chassis may require drivers to be installed. The StarTech.com Advantage
Key Features
StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards - TAA. Connectivity technology: Wired, Host interface: Thunderbolt 3. Product colour: Silver, HD type: 8K Ultra HD, Maximum refresh rate: 60 Hz. Number of fans: 1 fan(s), Fan diameter: 6 cm. Power source type: DC, AC input voltage: 100 - 240 V, Input current: 3 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,...
Technical Deployment Advisory
Target Personnel
Systems Maintenance Techs
Infrastructure Fit
Mid-Lifecycle Capacity Expansion
"As a genuine StarTech.com component, the STA-2TBT3-PCIE-ENCLOSURE ensures 100% compatibility for Mid-Lifecycle Capacity Expansion. It is an essential part for Systems Maintenance Techs tasked with hardware lifecycle maintenance."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards - TAA (STA-2TBT3-PCIE-ENCLOSURE) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards - TAA includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards - TAA compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-2TBT3-PCIE-ENCLOSURE.
