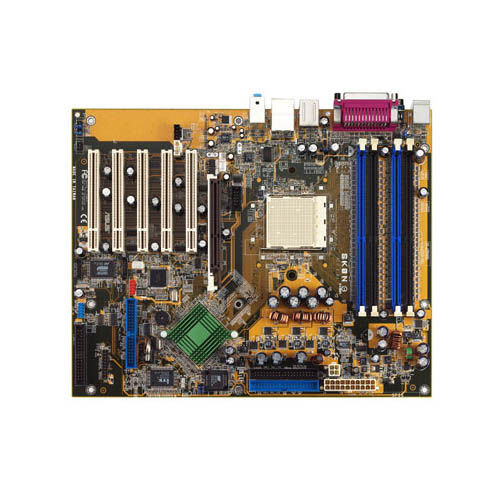

ASUS SK8N motherboard Socket 940 ATX
Brand: ASUS · SKU: SK8N · MPN: SK8N · Category: Components
ASUS SK8N, AMD, Socket 940, 8 GB, ECC, 0, 1, 0+1, 10/100 Mbit
Specifications
| Depth | 245 mm |
|---|---|
| Width | 305 mm |
| Audio chip | Realtek ALC650 |
| RAID levels | 0, 1, 0+1 |
| AGP x8 slots | 1 |
| CD/AUX audio in | Yes |
| BIOS memory size | 32 Mbit |
| Drivers included | Yes |
| Processor socket | Socket 940 |
| Special features | MyLogo2 EZ Flash Support S/PDIF out interface CrashFree2 BIOS Q-Fan |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 1 |
| Networking features | 10/100 Mbit |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 5 |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| Serial ports quantity | 1 |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 245 mm |
Product Description
The ASUS Athlon 64 FX motherboard is finally here to deliver breakthrough performance. Supporting a dual-channel memory architecture, scalable HyperTransport bus, IEEE 1394 high-speed connection, S/PDIF digital audio, SATA RAID, onboard LAN and more, the SK8N is definitely rich in features and robust in performance. AMD Opteron processor The AMD Opteron and Athlon 64 FX processor for servers, workstation, and high-end desktop are based on AMD 64 architecture, which represents the landmark introduction of the industry's first x86-64 technology. This next-generation processor provides a dramatic leap forward in compatibility, performance, investment protection, and reduced total cost of ownership and development. HyperTransport HyperTransport Technology is a high-speed, low latency, point-to-point link designed to increase the communication speed between integrated circuits in computers, servers, embedded systems, and networking and telecommunications equipment up to 48 times faster than some existing technologies. Dual-Channel DDR400 The 128-bit DDR Memory architecture doubles the DDR400 bendwith. System bottlenecks are eliminated with blanced architecture and peak bandwidths up to 5.3 GB/s. Q-Fan ASUS Q-Fan technology intelligently adjusts fan speeds according to system loading to ensure quiet, cool and efficient operation. MyLogo2 ASUS MyLogo2 personalizes and adds style to your system with customizable boot logos. ASUS CrashFree BIOS2 The CrashFree BIOS 2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM. ASUS EZ Flash With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required. S/PDIF-out Port on back I/O (on audio model only) The SK8N's S/PDIF out function turns your computer into a high-end entertainment system with digital connectivity to powerful speaker systems. 6 Channel Audio The SK8N uses an onboard Audio CODEC that lets you enjoy high-quality 6-channel audio without having to buy advanced sound cards. USB 2.0 Ready USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backward compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data Trend Micro PC-cillin 2002 anti-virus software Bonus! Free bundleTrend Micro?PC-cillin 2002 anti-virus software (OEM version) IEEE 1394 IEEE 1394 interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices. ATA RAID Incorporation the advanced two SATA and one parallel connectors with RAID 0(striping), RAID1(mirroring), and RAID0+1 functions, the onboard controller enables enhanced hard disk performance without the cost of add-on cards.
Key Features
ASUS SK8N. Processor manufacturer: AMD, Processor socket: Socket 940. Maximum internal memory: 8 GB, ECC сompatibility: ECC. RAID levels: 0, 1, 0+1. Networking features: 10/100 Mbit. Motherboard form factor: ATX, Audio output channels: 5.1 channels, Audio chip: Realtek ALC650
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS SK8N motherboard Socket 940 ATX (SK8N) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS SK8N motherboard Socket 940 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS SK8N motherboard Socket 940 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SK8N.
