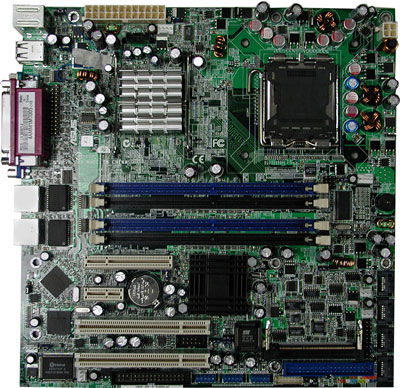

ASUS SER MB P5CR-VM P4 S775 E7221 Intel® E7221 micro ATX
Brand: ASUS · SKU: P5CR-VM · MPN: P5CR-VM · Category: Components
ASUS SER MB P5CR-VM P4 S775 E7221, 800 MHz, 4 GB, ECC, 2 x Broadcom PCI-Express BCM5721 GB, micro ATX, Intel® E7221
Specifications
| I/O ports | On Board Connector: 1 x Floppy Connector ATX 24-pin + 12V 4-pin 1 x MiniPCI Socket 6 x Front USB 6 x Fan 3 x SMBus 1 x Chassis Instruction 2 x Front LAN LED Rear IO Connectors: 1 x External Serial Port 2 x External USB Port 1 x VGA Port 2 x RJ-45 PS/2 Keyboard/Mouse |
|---|---|
| Expansion slots | 1 x [x1 PCI-E]; 1 x [x8 PCI-E]; 2 x 32bit/33MHz PCI |
| Power source type | ATX |
| Dimensions (WxDxH) | 245 x 245 |
| ECC сompatibility | ECC |
| Motherboard chipset | Intel® E7221 |
| Networking features | 2 x Broadcom PCI-Express BCM5721 GB |
| Maximum internal memory | 4 GB |
| Motherboard form factor | micro ATX |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Processor system buses supported | 800 MHz |
| Warranty | 3-Year Warranty |
Product Description
P5CR-VM, the world's first micro ATX ( 9.6" x 9.6" ) server board to incorporate the Intel® E7221 chipset, is a full-function, high-performance server board that adopted PCI Express, ECC memory support, Gigabit LAN (Local Area Network) and a host of other innovative features that leveraged the latest technology to fulfill the different needs of businesses.
Key Features
ASUS SER MB P5CR-VM P4 S775 E7221. Processor system buses supported: 800 MHz. Maximum internal memory: 4 GB, ECC сompatibility: ECC. Networking features: 2 x Broadcom PCI-Express BCM5721 GB. Motherboard form factor: micro ATX, Motherboard chipset: Intel® E7221, Power source type: ATX. Dimensions (WxDxH): 245 x 245
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS SER MB P5CR-VM P4 S775 E7221 Intel® E7221 micro ATX (P5CR-VM) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS SER MB P5CR-VM P4 S775 E7221 Intel® E7221 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS SER MB P5CR-VM P4 S775 E7221 Intel® E7221 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P5CR-VM.
