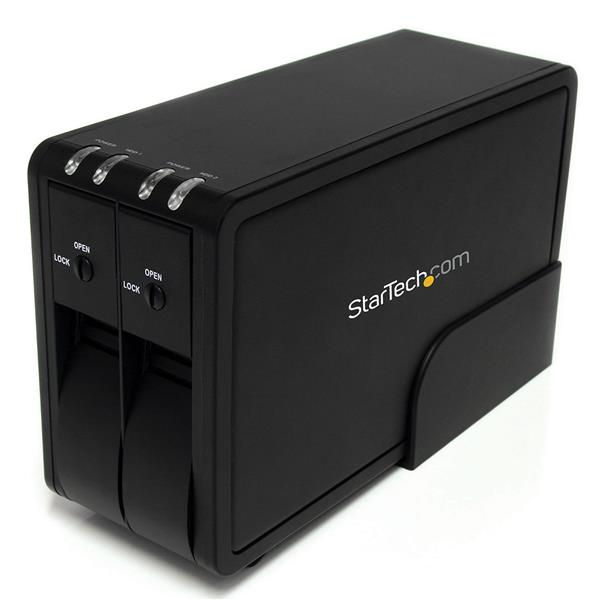

StarTech.com Dual 3.5in USB 3.0 Hot Swap Trayless SATA Hard Drive Enclosure w/ Fan
Brand: StarTech.com · SKU: SAT3520U3R · MPN: SAT3520U3R · Category: Components
StarTech.com Dual 3.5in USB 3.0 Hot Swap Trayless SATA Hard Drive Enclosure w/ Fan, 3.5", Serial ATA, 5 Gbit/s, Hot-swap, Black. StarTech.com Dual 3.5in USB 3.0 Hot Swap Trayless SATA Hard Drive Enclosure w/ Fan (part number SAT3520U3R) is an enterprise sas & sata hdds product available from Server Tech Central. Key specifications include depth 210 mm, width 76 mm, height 135 mm, weight 858 g, chipset JMicron JMS551, hot-swap Yes, interface USB3.0, raid levels 0, 1, JBOD. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 210 mm |
|---|---|
| Width | 76 mm |
| Height | 135 mm |
| Weight | 858 g |
| Chipset | JMicron JMS551 |
| Hot-swap | Yes |
| Interface | USB3.0 |
| RAID levels | 0, 1, JBOD |
| Fan diameter | 5.5 cm |
| Certification | CE, FCC |
| Package depth | 255 mm |
| Package width | 139 mm |
| LED indicators | Yes |
| Package height | 180 mm |
| Package weight | 1.54 kg |
| Product colour | Black |
| Data transfer rate | 5 Gbit/s |
| Power requirements | 100 - 240V, 12DC/3000mA |
| Storage drive size | 3.5" |
| External power adapter | Yes |
| Compliance certificates | RoHS |
| Maximum storage capacity | 3 TB |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 5 - 80 °C |
| Warranty | 3-Year Warranty |
| Weight | 858 g |
| Dimensions | 76 mm x 210 mm x 135 mm |
Product Description
Connect Two Removable SATA Hard Drives through a Single USB 3.0 Connection The SAT3520U3R USB 3.0 to Dual 3.5-inch SATA Trayless Hard Drive Enclosure makes adding fast external storage easy, by turning any two 3.5-inch internal SATA hard drives into an external hard drive. Large capacity drives (tested with up to 4TB per bay) can be used to greatly enhance your computer's storage/backup capabilities. The hard drive enclosure features a trayless system that eliminates having to mount and fasten the hard drive into the enclosure or tray, for quick and easy installation or removal. Using the SuperSpeed USB 3.0 interface, which is up to 10 times faster than the previous USB 2.0, makes backing up and transferring large files faster than ever, while still being usable on older USB 2.0 systems. With built-in RAID capabilities (0, 1, BIG, JBOD), the two drives can be combined for speed, redundancy, capacity, or even left as separate drives, based on situation needs. The StarTech.com Advantage - SuperSpeed USB 3.0 technology provides fast access for external storage, while still being backward compatible with USB 2.0 - Quickly and easily install or remove hard drives from the enclosure with the innovative trayless design - Built-in support for RAID 0, 1, JBOD and Concatenation modes to suite most personal/business needs
Key Features
StarTech.com Dual 3.5in USB 3.0 Hot Swap Trayless SATA Hard Drive Enclosure w/ Fan. Number of storage drives supported: 2, Storage drive size: 3.5", Supported storage drive interfaces: Serial ATA, Maximum storage capacity: 3 TB. Data transfer rate: 5 Gbit/s. RAID levels: 0, 1, JBOD, Hot-swap. Product colour: Black
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com Dual 3.5in USB 3.0 Hot Swap Trayless SATA Hard Drive Enclosure w/ Fan (SAT3520U3R) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com Dual 3.5in USB 3.0 Hot Swap Trayless SATA Hard Drive Enclosure w/ Fan includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com Dual 3.5in USB 3.0 Hot Swap Trayless SATA Hard Drive Enclosure w/ Fan compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SAT3520U3R.
