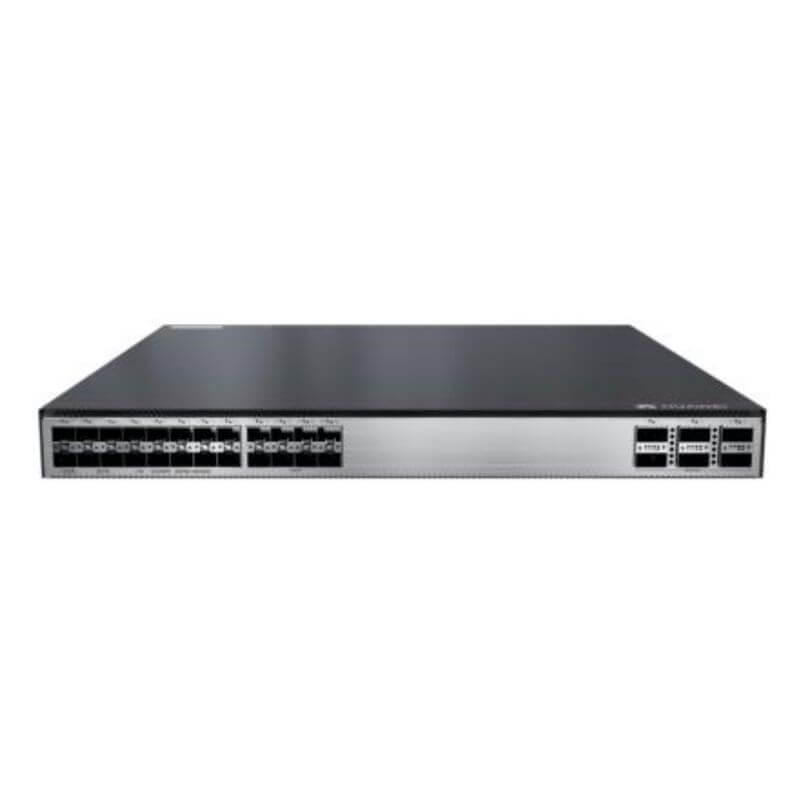

S6730S-H24X6C-A, Huawei S6700 Series Switch, 24x10GE SFP+/6x40GE QSFP/No Fan & PSU

SKU: S6730S-H24X6C-A · MPN: S6730S-H24X6C-A · Category: Components

S6730S-H24X6C-A, Huawei S6700 Series Switch, 24x10GE SFP+/6x40GE QSFP/No Fan & PSU
Request for Quote
In Stock • 10 units

S6730S-H24X6C-A, Huawei S6700 Series Switches

View Components Products

Specifications

PoENot supported
RPSNot supported
RTCSupported
Flash2 GB in total. To view the available flash memory size, run the display version command.
ModelS6730S-H24X6C-A
Stack portsAny 10GE SFP+ ports (a maximum of 16 physical ports) Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports)
Availability> 0.99999
Memory (RAM)4 GB
CertificationEMC certification Safety certification Manufacturing certification
Relative humidity5% to 95%, noncondensing
Operating altitude0-5000 m (0-16404 ft.)
Rated voltage rangeAC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC
Storage temperature-40°C to +70°C (-40°F to +158°F)
Maximum voltage rangeAC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Operating temperature-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module.
Dimensions (H x W x D)Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
Weight (with packaging)9.84 kg (21.69 lb)
Mean time to repair (MTTR)2 hours
Power supply surge protectionUsing AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Service port surge protectionN/A
Mean time between failures (MTBF)62.27 years
Noise under normal temperature (27°C, sound power)< 65 dB(A)
Maximum power consumption (100% throughput, full speed of fans)254 W
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this S6730S-H24X6C-A, Huawei S6700 Series Switch, 24x10GE SFP+/6x40GE QSFP/No Fan & PSU (S6730S-H24X6C-A) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This S6730S-H24X6C-A, Huawei S6700 Series Switch, 24x10GE SFP+/6x40GE QSFP/No Fan & PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the S6730S-H24X6C-A, Huawei S6700 Series Switch, 24x10GE SFP+/6x40GE QSFP/No Fan & PSU compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S6730S-H24X6C-A.
