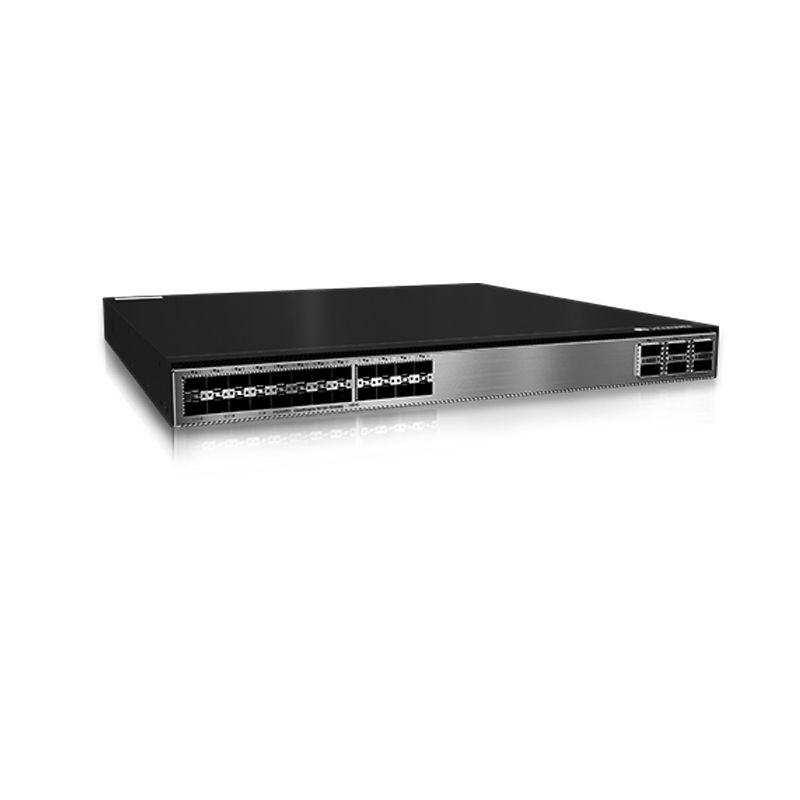

S6730-S24X6Q, Huawei S6730-S Switch, 24x10GE SFP+/6x40GE QSFP/Dual PSU slots

SKU: S6730-S24X6Q · MPN: S6730-S24X6Q · Category: Components

S6730-S24X6Q, Huawei S6730-S Switch, 24x10GE SFP+/6x40GE QSFP/Dual PSU slots
$2,454.56
In Stock • 10 units

S6730-S Series,24 x 10 Gig SFP+/6 x 40 Gig QSFP/Dual pluggable power modules, 600W AC (Power supply needs to be ordered seperately.)

View Components Products

Specifications

ARPStatic ARP Dynamic ARP
MACUp to 64K MAC address entries IEEE 802.1d standards compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
SVFActing as the parent node to vertically virtualize downlink switches and APs as one device for management Two-layer client architecture ASs can be independently configured. Services not supported by templates can be configured on the parent node. Third-party devices allowed between SVF parent and clients
Fans4, Fan modules are pluggable
VLAN4K VLANs Guest VLANs and voice VLANs GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping
iPCAMarking service packets to obtain the packet loss ratio and number of lost packets in real time Measurement of the number of lost packets and packet loss ratio on networks and devices
VXLANVXLAN functions, VXLAN L2 and L3 gateways, BGP EVPN VXLAN configuration using NETCONF/YANG
QoS/ACLRate limiting in the inbound and outbound directions of a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port DRR, SP, and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p and DSCP fields of packets Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol type, and VLAN ID Queue-based rate limiting and shaping on ports
SecurityHierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1X authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, and HWTACACS authentication NAC SSH V2.0 HTTPS CPU protection Blacklist and whitelist Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets IPSec for management packet encryption ECA Deception
MulticastIGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM MSDP Multicast VPN
IP routingStatic routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy Up to 64K FIBv4 entries Up to 32K FIBv6 entries
Fixed ports24 x 10 Gig SFP+, 6 x 40 Gig QSFP+
ReliabilityLACP E-Trunk Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) ITU-Y.1731 DLDP LLDP BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes
IPv6 featuresNeighbor Discover (ND) PMTU IPv6 Ping, IPv6 Tracert, IPv6 Telnet ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery snooping (MLDv1/v2) IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Input currentAC 600W ： Max 8A DC 1000W ： Max 30A
Heat dissipationHeat dissipation with fan, intelligent fan speed adjustment
InteroperabilityVLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST Link-type Negotiation Protocol (LNP), similar to DTP VLAN Central Management Protocol (VCMP), similar to VTP
Chassis height(U)1U
Power supply type600W AC Power 1000W DC Power
Relative humidity5% to 95% (non-condensing)
Operating altitude5000 m
Switching Capacity960Gbps/2.4Tbps
Storage temperature-40-70 ℃
Operating temperature• 0 – 1800 m altitude: -5 ℃ to 45 ℃ • 1800 – 5000 m altitude: The operating temperature reduces by 1 ℃ every time the altitude increases by 220 m.
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.
