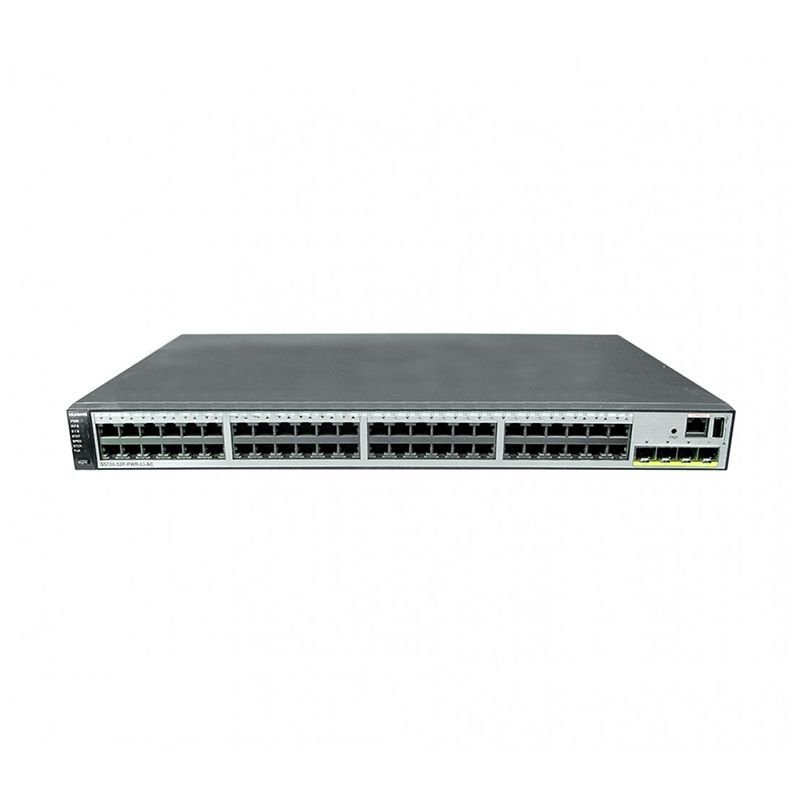

S5720-52P-PWR-LI-AC, Huawei S5720 Switch, 48xGE RJ45/4xGE SFP/370W PoE+

SKU: S5720-52P-PWR-LI-AC · MPN: S5720-52P-PWR-LI-AC · Category: Networking

S5720-52P-PWR-LI-AC, Huawei S5720 Switch, 48xGE RJ45/4xGE SFP/370W PoE+
$960.48
In Stock • 10 units

48 Ethernet 10/100/1000 ports, 4 Gig SFP, PoE+, 370W POE AC power support, Overseas

View Transceivers & Optics Products

Specifications

Ports48 Ethernet 10/100/1,000 Base-T ports, 4 Gig SFP ports
PowerAC power supply, supporting RPS (redundant power supply)
MulticastPIM DM, PIM SM, PIM SSM IGMPv1/v2/v3 and IGMPv1/v2/v3 snooping MLD v1/v2 and MLDv1/v2 snooping Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Interface-based multicast traffic statistics
IP RoutingStatic route, RIP, RIPng, OSPF, and OSPFv3
Jumbo Frame10K
PoE SupportPoE+
IPv6 FeaturesNeighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet
Input VoltageAC: Rated voltage range: 100V to 240V AC; 50/60 Hz Maximum voltage range: 90V to 264V AC; 47 Hz to 63 Hz
VLAN Features4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces 1: 1 and N: 1 VLAN mapping
Heat DissipationHeat dissipation with fan, intelligent fan speed adjustment
MAC Address Table16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC learning limiting
Relative Humidity5% to 95% (non-condensing)
Switching capacity336 Gbit/s
Operating Temperature0m to 1,800m altitude: -5°C to +45°C 1,800m to 5,000m altitude: The operating temperature reduces by 1°C for each 220m increase in altitude.
Dimensions (W x D x H)442 mm x 310 mm x 43.6 mm
Forwarding performance87 Mpps / 144 Mpps
Ethernet Loop ProtectionRRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection BPDU tunnel
Maximum Power ConsumptionWithout PoE power output: 61.7W With PoE power output: 461.8W (PoE: 370W)
Typical Power Consumption (without PoE)42W
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this S5720-52P-PWR-LI-AC, Huawei S5720 Switch, 48xGE RJ45/4xGE SFP/370W PoE+ (S5720-52P-PWR-LI-AC) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This S5720-52P-PWR-LI-AC, Huawei S5720 Switch, 48xGE RJ45/4xGE SFP/370W PoE+ includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the S5720-52P-PWR-LI-AC, Huawei S5720 Switch, 48xGE RJ45/4xGE SFP/370W PoE+ compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S5720-52P-PWR-LI-AC.
