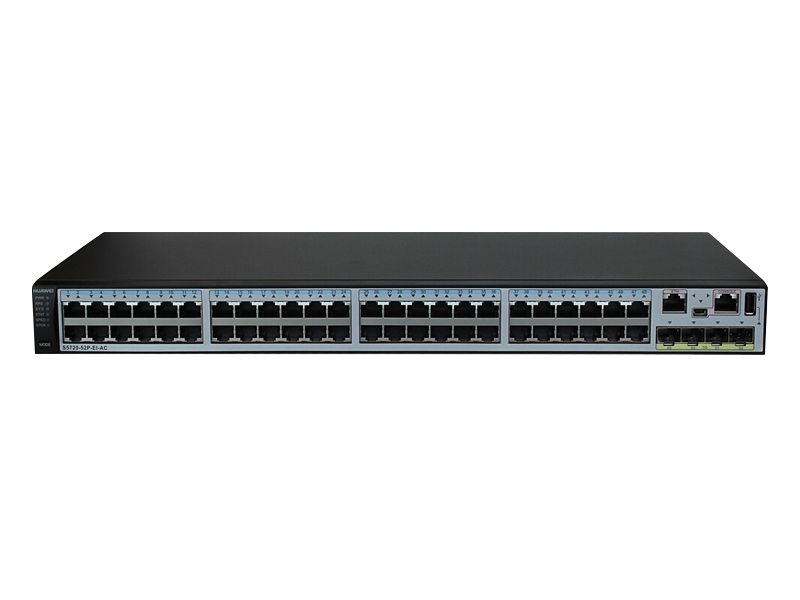

S5720-52P-EI-AC, Huawei S5720 Switch, 48xGE RJ45/4xGE SFP/AC Power

Brand: Huawei · SKU: S5720-52P-EI-AC · MPN: S5720-52P-EI-AC · Category: Networking

S5720-52P-EI-AC, Huawei S5720 Switch, 48xGE RJ45/4xGE SFP/AC Power
Request for Quote
In Stock • 10 units

S5720-52P-EI-AC(48 Ethernet 10/100/1000 ports,4 Gig SFP,AC 110/220V)

View Transceivers & Optics Products

Specifications

MPLSMPLS L3VPN MPLS L2VPN (VPWS/VPLS) MPLS-TE MPLS QoS
VLAN4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping VLAN-based transparent transmission of protocol packets
ModelS5720-52P-EI-AC
TWAMPTwo-way IP link performance measurement Measurement on two-way packet delay, one-way packet loss rate, and one-way packet jitter
Weight7.96 kg
QoS/ACLRate limiting on packets sent and received by a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid fr ames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports 1:1, N:1, N:4 port mirroring
SecurityHierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MA C addresses IEEE 802.1x authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, and HWTACACS authentication NAC SSH v2.0 HTTPS CPU defense Blacklist and whitelist Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and M LD packets
MulticastIGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM MSDP MVPN
IP routingStatic routing, RIPv1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and policy-based routing
Fixed portsS5720-52P-EI-AC: 48×10/100/1000Base-T, 4 Gig SFP, 2 QSFP+
Jumbo frame12K
ReliabilityEthernet OAM (IEEE 802.3ah and IEEE 802.1ag) ITU-Y.1731 BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static route VRRP4, VRRP6
Extended slotNA
IPv6 featuresNeighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet 6to4 tunnel, ISATAP tunnel, and manually configur ed tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or pr otocol type MLD v1/v2 snooping
Input voltageAC: Rated voltage range: 100 V to 240 V A C, 50 Hz to 60 Hz Maximum voltage range: 90 V to 264 V A C, 47 Hz to 63 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V, DC
InteroperabilityVLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST Link-type Negotiation Protocol (LNP), similar to DTP VLAN Central Management Protocol (VCMP), similar to VTP
Front power inputS5720-52P-EI-AC: No
MAC address tableIEEE 802.1d 64K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
Operating environmentOperating temperature: 0-1800 m altitude: 0oC to 45oC 1800-5000 m altitude: The operating temperature reduces by 1oC every time the altitude increases by 220 m. Relative humidity: 5% to 95% (non-condensing)
Ethernet loop protectionRRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection BPDU tunnel
Typical power consumptionS5720-52P-EI-AC: 51.1W
Dimensions (W x D x H, mm)442×220×43.6
Management and MaintenanceiStack Virtual cable test SNMP v1/v2c/v3 RMON/RMON2 Web-based NMS System logs and alarms of different levels sFlow 802.3az Energy Efficient Ethernet (EEE)
Super Virtual Fabric (SVF)Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this S5720-52P-EI-AC, Huawei S5720 Switch, 48xGE RJ45/4xGE SFP/AC Power (S5720-52P-EI-AC) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This S5720-52P-EI-AC, Huawei S5720 Switch, 48xGE RJ45/4xGE SFP/AC Power includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the S5720-52P-EI-AC, Huawei S5720 Switch, 48xGE RJ45/4xGE SFP/AC Power compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S5720-52P-EI-AC.
