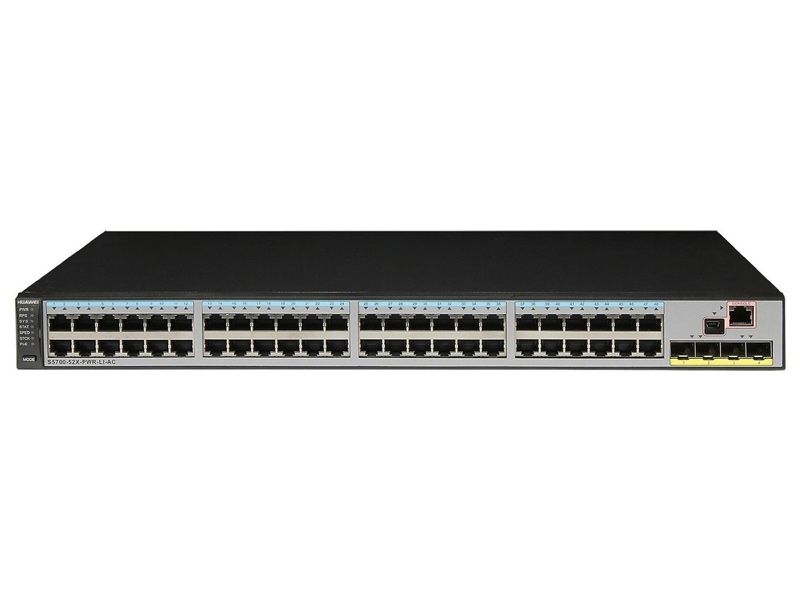

S5700-52X-LI-AC, Huawei S5700 Switch, 48xGE/4x10GE SFP+/AC Power
Brand: Huawei · SKU: S5700-52X-LI-AC · MPN: S5700-52X-LI-AC · Category: Networking
Request for Quote
In Stock • 10 units
48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V
Specifications
| Model | S5700-52X-LI-AC |
|---|---|
| Weight | 7.41 kg |
| Battery | One slot for lead-acid battery charger module |
| QoS/ACL | Rate limiting on packets sent and received by an interface Packet redirection Interface-based traffic policing and two-rate and three-color CAR Eight queues on each interface WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on interfaces |
| Security | Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface number, and VLAN ID Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH V2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Interface-based multicast traffic statistics |
| IP Routing | Static route, RIP, RIPng (S5700-10P-LI-AC/S5700-10P-PWR-LI-AC do not support RIPng) |
| Fixed Ports | 48 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports |
| Jumbo frame | 10K |
| Reliability | RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection BPDU tunnel |
| IPv6 Features | Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, and protocol type MLD v1/v2 snooping |
| Input Voltage | AC: Rated voltage range: 100V to 240V, 50 Hz/60 Hz, Maximum voltage range: 90V to 264V, 47 Hz/63 Hz |
| VLAN Features | 4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces 1:1 and N:1 VLAN mapping |
| Access Security | DHCP relay, DHCP server, DHCP snooping, and DHCP security |
| Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) Supports LNP (Similar to DTP) Supports VCMP (Similar to VTP) |
| MAC Address Table | 16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC learning limiting |
| Power Consumption | < 61W |
| Lightning Protection | Service interface: 6 kV |
| Operating Environment | Long-term operating temperature: 0掳C to 50掳C Relative humidity: 5% to 95% (non-condensing) |
| Power Socket Position | rear power sockets |
| Dimensions (W x D x H) | 442 mm聽x 310mm x 43.6mm |
| Management and Maintenance | iStack Virtual Cable Test (VCT) Remote configuration and maintenance using Telnet SNMP v1/v2c/v3 RMON eSight and web-based NMS HTTPS LLDP/LLDP-MED System logs and multi-level alarms 802.3az EEE Dying Gasp Device hibernation mode |
| Super Virtual Fabric (SVF) | Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations Supports independent running client |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this S5700-52X-LI-AC, Huawei S5700 Switch, 48xGE/4x10GE SFP+/AC Power (S5700-52X-LI-AC) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This S5700-52X-LI-AC, Huawei S5700 Switch, 48xGE/4x10GE SFP+/AC Power includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the S5700-52X-LI-AC, Huawei S5700 Switch, 48xGE/4x10GE SFP+/AC Power compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S5700-52X-LI-AC.
