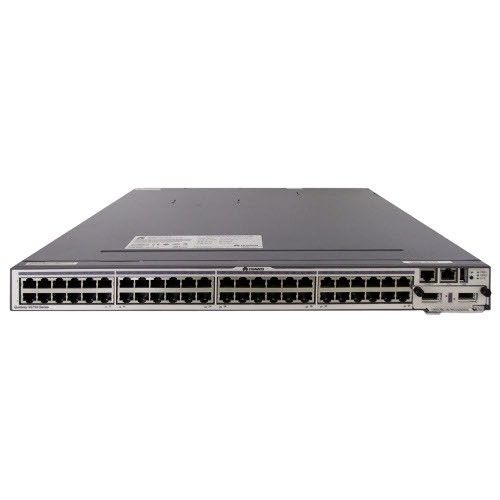

S5700-52C-SI, Huawei S5700 Switch, 48xGE ports/1 expansion slot
Brand: Huawei · SKU: S5700-52C-SI · MPN: S5700-52C-SI · Category: Networking
Request for Quote
In Stock • 10 units
48 Ethernet 10/100/1000 ports, with 1 interface slot
Specifications
| VLAN | 4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping |
|---|---|
| Model | S5700-52C-SI |
| Weight | 10.74 kg |
| QoS/ACL | Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports |
| Security | User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist 802.1x authentication, MAC address authentication, and combined authentication on a per port basis Portal authentication on a per VLANIF interface basis |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics |
| IP Routing | Static route, RIPv1, RIPv2, RIPng, and ECMP |
| Fixed Ports | 48 × 10/100/1,000 Base-T |
| Reliability | RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover SEP ERPS (G.8032) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection |
| IPv6 Features | Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping 6to4 tunnel, ISATAP tunnel, and manually configured tunnel |
| Input Voltage | AC: Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 50/60 Hz DC: Rated voltage range: –48V to –60V, Maximum voltage range: –36V to –72V Note: PoE-support switches do not use DC power supplies. |
| Extended Slots | two extended slots, one for an uplink subcard and the other for a stack card |
| Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) |
| MAC Address Table | IEEE 802.1d compliance 16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
| Power Consumption | < 78W |
| Switching Capacity | 256 Gbit/s |
| Operating Environment | Operating temperature: 0°C to 50°C Relative humidity: 5% to 95% (non-condensing) |
| Dimensions (W x D x H) | 442mm x 420mm x 43.6mm |
| Forwarding Performance | 132Mpps |
| Management and Maintenance | Stacking MAC Forced Forwarding (MFF) Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different levels |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this S5700-52C-SI, Huawei S5700 Switch, 48xGE ports/1 expansion slot (S5700-52C-SI) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This S5700-52C-SI, Huawei S5700 Switch, 48xGE ports/1 expansion slot includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the S5700-52C-SI, Huawei S5700 Switch, 48xGE ports/1 expansion slot compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S5700-52C-SI.
