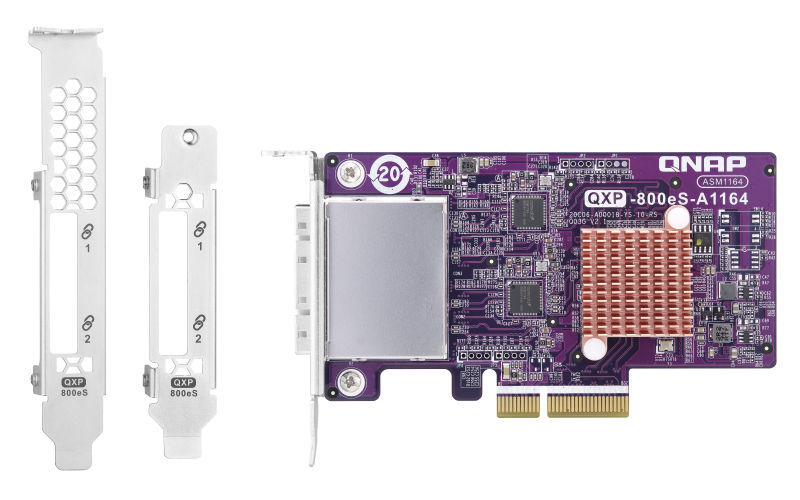

QNAP QXP-800ES-A1164 interface cards/adapter Internal Mini-SAS
Brand: QNAP · SKU: QXP-800eS-A1164 · MPN: QXP-800ES-A1164 · Category: Components
QNAP QXP-800ES-A1164, PCIe, Mini-SAS, Low-profile, PCIe 3.0, Blue, NAS / Storage server
Specifications
| Depth | 68.9 mm |
|---|---|
| Width | 119.7 mm |
| Height | 17.2 mm |
| Purpose | NAS / Storage server |
| Internal | Yes |
| Quantity | 1 |
| Cooling type | Passive |
| Host interface | PCIe |
| Product colour | Blue |
| Output interface | Mini-SAS |
| Expansion card standard | PCIe 3.0 |
| External mini-SAS ports | 2 |
| Data transfer rate (max) | 32 Gbit/s |
| Expansion card form factor | Low-profile |
| Harmonized System (HS) code | 84733020 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Warranty | 3-Year Warranty |
| Dimensions | 119.7 mm x 68.9 mm x 17.2 mm |
Product Description
The QXP SATA expansion cards are designed for QNAP’s TL series JBOD storage enclosures that support SATA drives. Expand storage capacity easily by installing a QXP SATA expansion card into the PCIe slot of a QNAP NAS or Windows/ Ubuntu (Linux) PC, and then connect the TL series JBOD storage enclosures using an SFF-8088 (or SFF-8644) cable. The low-profile card form-factor allows QXP SATA expansion cards to be compatible with a wide variety of NAS, computers, and servers. Supports QNAP NAS and Windows/Ubuntu PCs Each SFF-8088 or SFF-8644 (internal) connector on the QXP SATA expansion card supports up to four SATA drives. A suitable QXP card can be installed based on the number of drives you want to connect for storage expansion. For example, a NAS or PC can have two 4-port QXP-400eS cards installed, with one card connected to a 4-bay tower TL-D400S JBOD enclosure and the other card connected to a 4-bay rackmount TL-R400S. Alternatively, both cards can be connected to a single 8-bay tower TL-D800S JBOD enclosure. A NAS or PC with a single QXP-400eS card installed can also connect to an 8-bay TL JBOD storage enclosure that has only 1-4 drives installed. Hard to find SAS Expansion Cards? Try QXP SATA Expansion Cards! When connecting Windows and Ubuntu (Linux) hosts to SAS JBOD for expanding storage capacity, enterprises often choose SATA drives because there are few SAS expansion cards on the market. QXP SATA expansion cards not only support QNAP TL SATA JBOD and QNAP SAS JBOD (EJ series, REXP series) but also third-party SAS JBOD. You can easily expand the storage capacity of a server/host by installing a QXP SATA expansion card and connecting the SAS JBOD using an SFF-8088 (or SFF-8644) cable with Windows and Ubuntu (Linux) PCs software RAID configuration. QNAP JBOD Manager for Windows/Ubuntu users The QNAP JBOD Manager utility allows Windows and Ubuntu (Linux) PC users to monitor the status of fans, system temperature, and drive information of TL series JBOD storage enclosures.
Key Features
QNAP QXP-800ES-A1164. Host interface: PCIe, Output interface: Mini-SAS, Expansion card form factor: Low-profile. Product colour: Blue, Purpose: NAS / Storage server, Cooling type: Passive. Data transfer rate (max): 32 Gbit/s. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019. Width: 119.7 mm, Depth: 68.9 mm, Height: 17.2 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this QNAP QXP-800ES-A1164 interface cards/adapter Internal Mini-SAS (QXP-800eS-A1164) is 100% genuine QNAP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This QNAP QXP-800ES-A1164 interface cards/adapter Internal Mini-SAS includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the QNAP QXP-800ES-A1164 interface cards/adapter Internal Mini-SAS compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the QXP-800eS-A1164.
