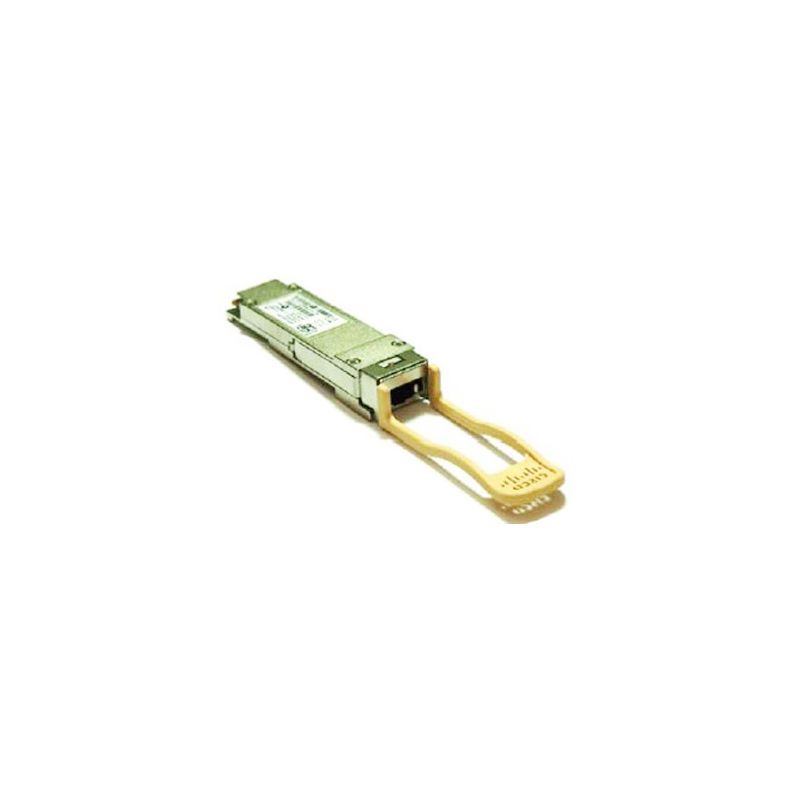

QSFP-40G-SR4, Cisco QSFP Module, 40Gbps/Multimode Fiber/Short Range
Brand: Cisco · SKU: QSFP-40G-SR4 · MPN: QSFP-40G-SR4 · Category: Networking
Cisco 40GBASE-SR4 QSFP Module for MMF
Specifications
| Type | 40GBASE-SR4, 4 lanes, 850 nm MMF |
|---|---|
| Model | QSFP-40G-SR4 |
| Safety | Cable jacket of QSFP copper modules is UL E116441 Compliant, QSFP copper cables are ELV Compliant |
| Standards | GR-20-CORE, GR-326-CORE, GR-1435-CORE, IEEE 802.3ba (-SR4, -LR4), IEEE 802.3ae (-CSR4), QSFP+ MSA SFF-8436, SFP+ MSA SFF-8431 and -8461, RoHS 6 |
| Cable Type | MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| Description | Cisco 40GBASE-SR4 QSFP Module for MMF |
| Product Type | 40GBASE-SR4, 4 lanes, 850 nm MMF |
| Cable Distance | 30 m, 100 m, 150 m |
| Pull Tab Color | Beige |
| Wavelength (nm) | 850 |
| Core Size (microns) | 50.0 |
| Receive Power (dBm) | Max: -2.4 per lane, Min: -9.5 per lane |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Transmit Power (dBm) | Max: -1.0 per lane, Min: -7.6 per lane |
| Power Consumption (W) | 1.5 |
| Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Modal Bandwidth (MHz-km) | 500 (OM2), 2000 (OM3), 4700 (OM4) |
| Transmit and Receive Wavelength (nm) | 840 to 860 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this QSFP-40G-SR4, Cisco QSFP Module, 40Gbps/Multimode Fiber/Short Range (QSFP-40G-SR4) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This QSFP-40G-SR4, Cisco QSFP Module, 40Gbps/Multimode Fiber/Short Range includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the QSFP-40G-SR4, Cisco QSFP Module, 40Gbps/Multimode Fiber/Short Range compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the QSFP-40G-SR4.
