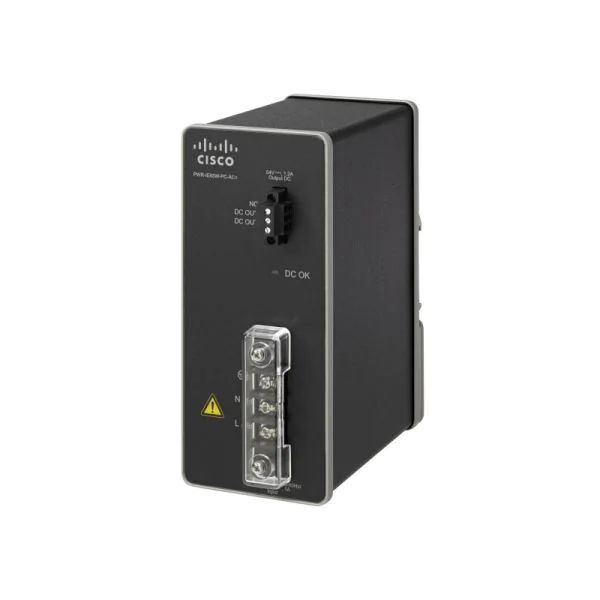

Cisco PWR-IE65W-PC-AC Industrial Ethernet 65W AC to DC Power Module
Brand: Cisco · SKU: PWR-IE65W-PC-AC · MPN: PWR-IE65W-PC-AC · Category: Components
This is an AC-DC Power Module designed for Cisco Industrial Ethernet (IE) switches, specifically compatible with the IE3000 and IE2000 series, providing 65 Watts of power to support PoE/PoE+ modules. It features high efficiency AC-DC conversion, stabilizing output voltage at 54V DC at 1.2A. The input voltage range is versatile, accepting 100–240V AC or 125–250V DC, with a supported range of 90–264V AC or 106–300V DC. The unit is designed for rugged industrial environments, featuring DIN-rail mountability, passive (fanless) cooling, and an extended operating temperature range of -40°C to +70°C. It includes built-in protection features such as overload, overvoltage, and short circuit protection, and boasts a high Mean Time Before Failure (MTBF) of 500,000 hours (or over 2.48 million hours according to one source). The dimensions are approximately 1.69 x 3.52 x 5.11 inches (H x W x D) or 43 x 89.5 x 130 mm, and it weighs about 1.24 kg.
Specifications
| Efficiency | Up to 85% |
|---|---|
| Form Factor | Compact, pluggable module |
| Cooling Type | Passive (fanless) |
| Product Type | Power Supply / AC-DC Power Module |
| Mounting Type | DIN-Rail mountable |
| Output Current | 1.2A |
| Output Voltage | 54V DC |
| Output Power Max | 65W |
| Input Voltage (AC) | 100–240V AC (Supports 90–264V AC) |
| Input Voltage (DC) | 125–250V DC (Supports 106–300V DC) |
| Protection Features | Overload, Overvoltage, Short Circuit Protection, Over-temperature Protection |
| Operating Temperature | -40°C to +70°C |
| Warranty | 1 Year (based on one retailer listing) |
| Weight | 1.24 kg |
| Dimensions | Approx. 1.69 x 3.52 x 5.11 in (43 x 89.5 x 130 mm) (HxWxD) |
Key Features
The Cisco PWR-IE65W-PC-AC is a 65-watt AC-DC power supply module engineered for Cisco Industrial Ethernet (IE) switches (like IE3000/2000 series) to provide stable 54V DC power for PoE/PoE+ capabilities. It supports flexible AC and DC input ranges and is built for harsh industrial environments with DIN-rail mounting and an extensive temperature rating.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco PWR-IE65W-PC-AC Industrial Ethernet 65W AC to DC Power Module (PWR-IE65W-PC-AC) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco PWR-IE65W-PC-AC Industrial Ethernet 65W AC to DC Power Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco PWR-IE65W-PC-AC Industrial Ethernet 65W AC to DC Power Module compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PWR-IE65W-PC-AC.
