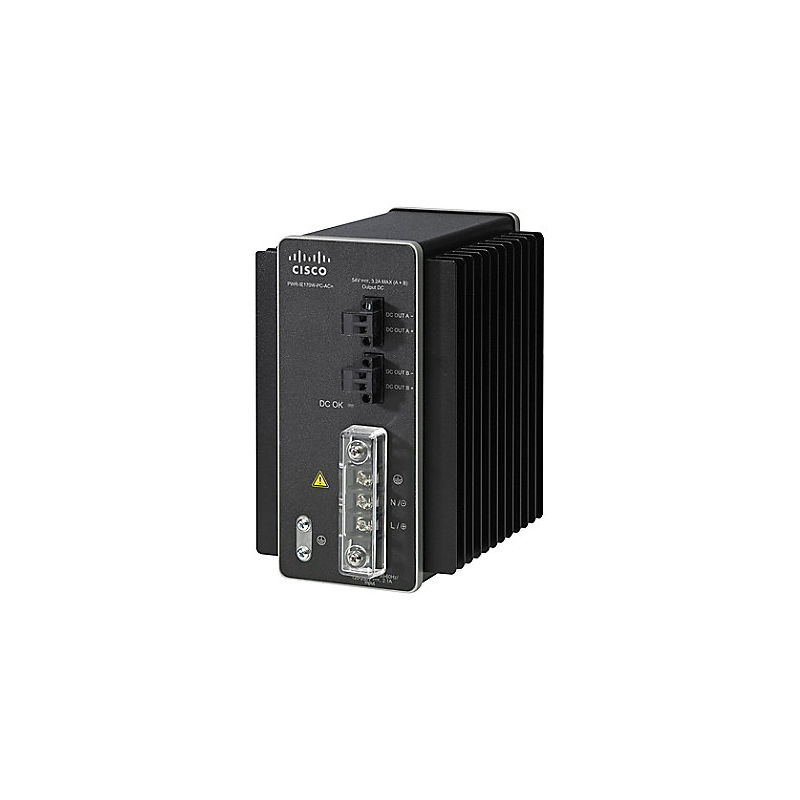

PWR-IE480W-PCAC-L, Cisco Power Supply, 480W/AC Input/Lite
Brand: Cisco · SKU: PWR-IE480W-PCAC-L · MPN: PWR-IE480W-PCAC-L · Category: Components
Specifications
| EMC | EN 55024, EN 61000-6-1/6-2 |
|---|---|
| MTBF | 1,058,750 hours (Telcordia SR-332) |
| Model | PWR-IE480W-PCAC-L |
| Cooling | Forced air |
| Humidity | 5–95% RH (non-condensing) |
| Mounting | DIN rail |
| Dimensions | 144 × 121 × 118.6 mm (5.66 × 4.76 × 4.66 in) |
| Efficiency | 92% (typical) |
| Protections | Overvoltage, Overcurrent, Overtemperature, Short Circuit |
| Rated Power | 480W |
| Hold-up Time | 20ms (100% load) |
| Input Current | Max 6A |
| Derating 50°C | Reduce power by 2.5%/°C |
| Derating 70°C | Reduce power by 5%/°C |
| Inrush Current | <35A (115V/230V AC) |
| Output Current | 8.9A |
| Output Voltage | 54V DC (Adjustable: 48–56V DC) |
| Ripple & Noise | 120mV |
| Input Frequency | 47–63 Hz |
| Input Voltage Range | 90–264V AC |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | -40°C to +75°C |
| Safety Certifications | UL 60950-1, CSA C22.2 No. 60950-1, EN 61000-3-2/3-3, CISPR 32, FCC Part 15B, CB Scheme (IEC 60950-1) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this PWR-IE480W-PCAC-L, Cisco Power Supply, 480W/AC Input/Lite (PWR-IE480W-PCAC-L) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This PWR-IE480W-PCAC-L, Cisco Power Supply, 480W/AC Input/Lite includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the PWR-IE480W-PCAC-L, Cisco Power Supply, 480W/AC Input/Lite compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PWR-IE480W-PCAC-L.
