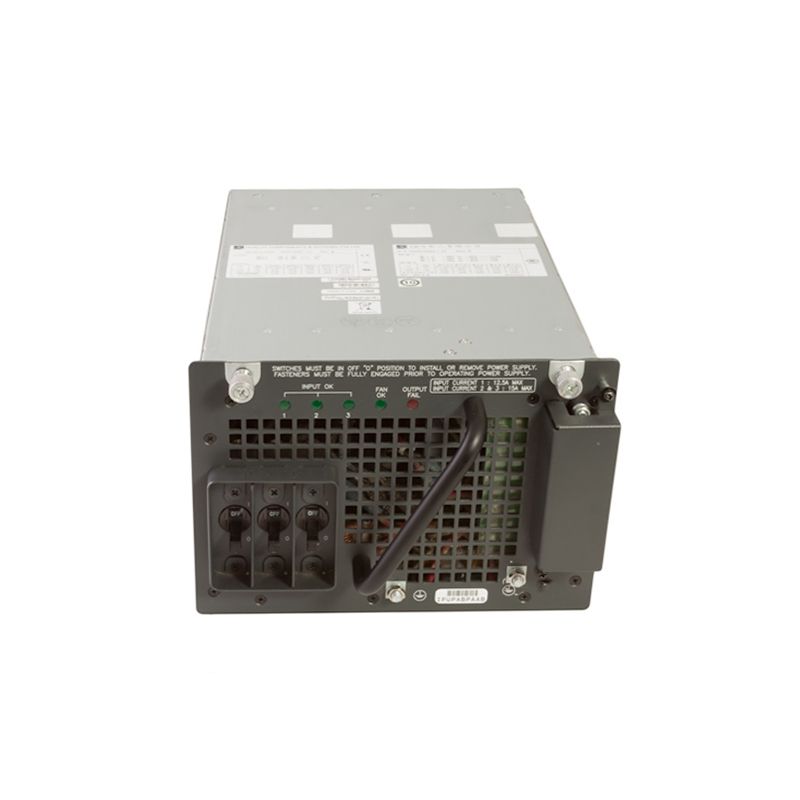

PWR-C45-1400DC/2, Cisco Catalyst 4500 Power Supply, 1400W DC, Triple Input, Data Only
Brand: Cisco · SKU: PWR-C45-1400DC/2 · MPN: PWR-C45-1400DC/2 · Category: Components
Cisco Catalyst 4500 Power Supply PWR-C45-1400DC/2 C4500 1400W DC Triple Input SP Power Supply-data only
Specifications
| Model | PWR-C45-1400DC/2 |
|---|---|
| Weight | kg |
| Holdup Time | 8 ms |
| EMC Standards | FCC Part 15 (CFR 47) Class A; ICES-003 Class A; EN 55022 Class A; CISPR 22 Class A; AS/NZS 3548 Class A; VCCI Class A; EN 55022; EN 55024; EN 61000-6-1; EN 50082-1; EN 61000-3-2; EN 61000-3-3; ETS 300 386 |
| Input Voltage | -48.5 to -72 VDC |
| Integrated PoE | No (data only) |
| ROHS Compliance | ROHS5 |
| Heat Dissipation | 1048 BTU/hr |
| Safety Standards | UL 60950; CAN/CSA-C22.2 No. 60950; EN 60950; IEC 60950; TS 001; AS/NZS 3260 |
| Relative Humidity | 10% to 90% noncondensing |
| Operating Altitude | 60 to 3000 m |
| Rated MTBF (Hours) | 316,454 |
| Storage Temperature | -40 to 167 °F (-40 to 75 °C) |
| Output Current (PoE) | - |
| Input Current (Rated) | Two -48 VDC at 15 A; One -48 VDC at 12.5 A |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Output Current (Data) | Two -48 VDC at 15 A; One -48 VDC at 12.5 A |
| IEEE 802.3af Compliant | No |
| Output Power Combined Mode (PoE) | - |
| Output Power Combined Mode (Data) | 2473 W |
| Output Power Redundant Mode (PoE) | - |
| Output Power Redundant Mode (Data) | 1368 W + 40 W |
| Power-Supply Indicators and Interfaces | Fan OK LED (per input): Green; Input OK LED (per input): Green; Output Fail LED (per unit): Red; Support for Simple Network Management Protocol (SNMP) MIB |
| Minimum Cisco IOS Software Release Required | 12.1(12c)EW |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this PWR-C45-1400DC/2, Cisco Catalyst 4500 Power Supply, 1400W DC, Triple Input, Data Only (PWR-C45-1400DC/2) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This PWR-C45-1400DC/2, Cisco Catalyst 4500 Power Supply, 1400W DC, Triple Input, Data Only includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the PWR-C45-1400DC/2, Cisco Catalyst 4500 Power Supply, 1400W DC, Triple Input, Data Only compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PWR-C45-1400DC/2.
