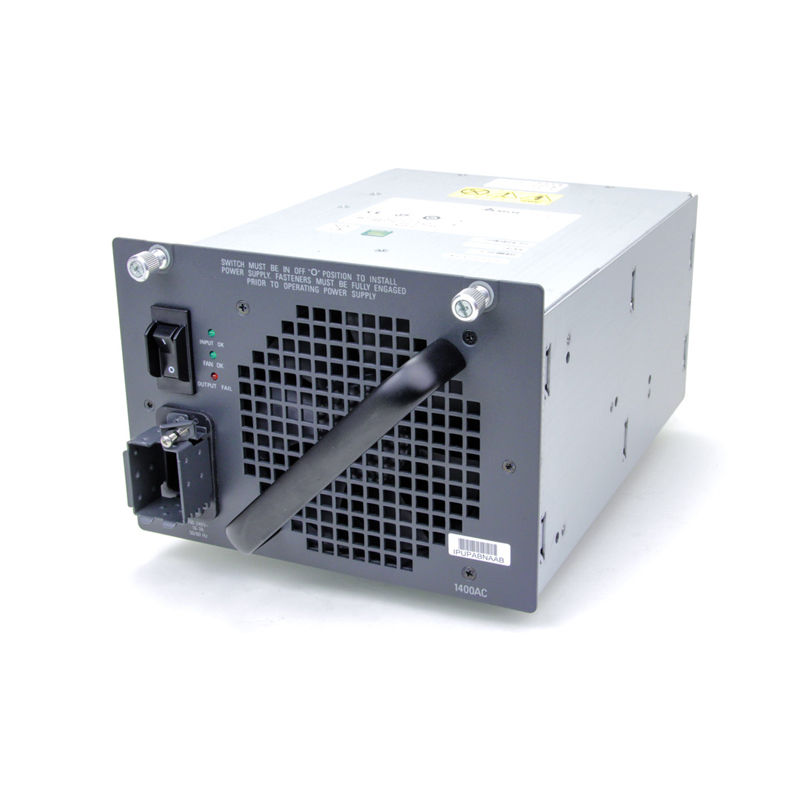

PWR-C45-1400AC, Cisco Catalyst 4500 Power Supply, 1400W AC/Data Only/Catalyst 4500
Brand: Cisco · SKU: PWR-C45-1400AC · MPN: PWR-C45-1400AC · Category: Components
Cisco Catalyst 4500 Power Supply PWR-C45-1400AC Catalyst 4500 1400W AC Power Supply (Data Only)
Specifications
| LED | OUTPUT FAIL: Red: problem with one or more of the DC-output voltages of the power supply is detected. Off: DC-output voltage is within acceptable margins. For proper operation of the OUTPUT FAIL LED, systems with single power supplies must be configured with a minimum of one fan tray assembly and one supervisor engine. Systems with dual power supplies must have a minimum configuration of one fan tray assembly, one supervisor engine, and one additional module. Failure to meet these minimum configuration requirements can cause a false power supply output fail signal. |
|---|---|
| Model | PWR-C45-1400AC |
| Weight | kg |
| AC-input type | Autoranging input with power factor corrector. Power factor correction (PFC) is a standard feature on all Catalyst 4500 E-series AC-input power supplies. PFC reduces the reactive component in the source AC current, allowing higher power factors (typically 99% or better) and lower harmonic current components. |
| AC-input current | 16 A @ 120 VAC; 7 A @ 240 VAC |
| AC-input voltage | Low-line (120 VAC nominal): 85 VAC (min) to 132 VAC (max); High-line (230 VAC nominal): 170 VAC (min) to 264 VAC (max) |
| AC-input frequency | 50/60 Hz (nominal), ±3 Hz for full range |
| Maximum kVA rating | 1.76 kVA |
| Output holdup time | 20 ms minimum |
| Max heat dissipation | 1048 BTU/hr |
| Power over Ethernet (PoE) | Not supported |
| Branch circuit requirement | Each chassis power supply should have its own dedicated, fused-branch circuit. For North America: 15 A or 20 A. For International: circuits sized to local and national codes. All Catalyst 4500 E-series AC-input power supplies require single-phase source AC. All AC power supply inputs are fully isolated. Source AC can be out of phase between multiple power supplies in the same chassis (for example, PS1 on phase A and PS2 on phase B). For high-line operation, the power supply operates with the hot conductor wired to a source AC phase and the neutral conductor wired either to ground or to another source AC phase as long as the net input voltage is 170 to 264 VAC. Source AC can also be out of phase between AC inputs on power supplies with multiple AC inputs (for example, power cord 1 on phase A and power cord 2 on phase B). |
| Minimum software requirement | Cisco IOS Release 12.2(18)EW |
| Power supply output (maximum) | 2473 W maximum; 1360 W + 40 W in redundant mode (data) |
| Power supply output (AC supply) | 113.4 A @ +12 V; 12.2 A @ +3.3 V (data) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this PWR-C45-1400AC, Cisco Catalyst 4500 Power Supply, 1400W AC/Data Only/Catalyst 4500 (PWR-C45-1400AC) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This PWR-C45-1400AC, Cisco Catalyst 4500 Power Supply, 1400W AC/Data Only/Catalyst 4500 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the PWR-C45-1400AC, Cisco Catalyst 4500 Power Supply, 1400W AC/Data Only/Catalyst 4500 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PWR-C45-1400AC.
