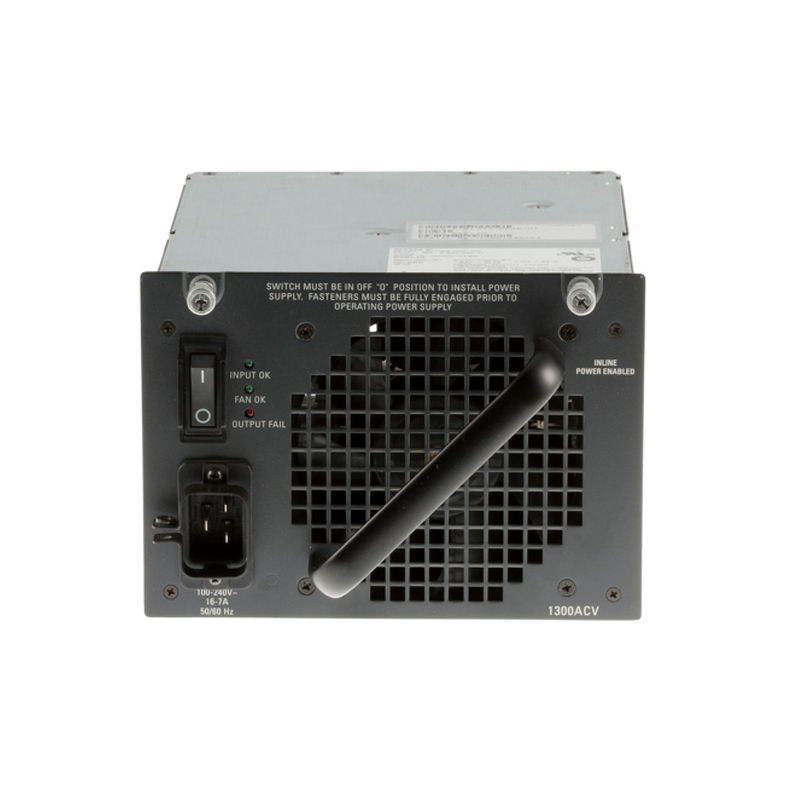

Cisco Catalyst 4500 1300W AC Power Supply Data & PoE – PWR-C45-1300ACV
Brand: Cisco · SKU: PWR-C45-1300ACV · MPN: PWR-C45-1300ACV · Category: Components
Cisco PWR-C45-1300ACV is a 1300W AC power supply for Catalyst 4500 switches, supporting data and PoE with 100-240VAC autoranging input.
Specifications
| Model | PWR-C45-1300ACV |
|---|---|
| Weight | kg |
| AC-input type | Autoranging input with power factor corrector. Power factor correction is a standard feature on all Catalyst 4500 E-series AC-input power supplies. PFC reduces the reactive component in the source AC current, allowing higher power factors (typically 99% or better) and lower harmonic current components. |
| AC-input current | 16 A @ 100 VAC; 7 A @ 240 VAC |
| AC-input voltage | Low-line (120 VAC nominal): 85 VAC (min) to 132 VAC (max); High-line (230 VAC nominal): 170 VAC (min) to 264 VAC (max) |
| FAN OK LED status | Green: power supply fan is operating properly. Off: power supply fan failure is detected. |
| Power supply LEDs | INPUT OK, FAN OK, OUTPUT FAIL |
| AC-input frequency | 50/60 Hz (nominal), ±3 Hz for full range |
| Maximum kVA rating | 1.76 kVA |
| Output holdup time | 20 ms minimum |
| INPUT OK LED status | Green: source AC voltage is OK (input voltage is 85 VAC or greater). Off: source AC voltage falls below 70 VAC, is not present, or the power supply is turned off. |
| Max heat dissipation | 1568 BTU/hr |
| OUTPUT FAIL LED status | Red: problem with one or more of the DC-output voltages of the power supply is detected. Off: DC-output voltage within acceptable margins. |
| Source AC phase support | Source AC can be out of phase between multiple power supplies in the same chassis (for example, PS1 on phase A and PS2 on phase B). For high-line operation, the hot conductor is wired to a source AC phase and the neutral conductor is wired either to ground or to another source AC phase as long as the net input voltage is 170 to 264 VAC. Source AC can be out of phase between AC inputs on power supplies with multiple AC inputs (for example, power cord 1 on phase A and power cord 2 on phase B). |
| Power over Ethernet (PoE) | Supported, up to 800 W (up to 211 Cisco phones in combined mode) |
| Power supply output (PoE) | 16.7 A @ -50 V (PoE) |
| Branch circuit requirement | Each chassis power supply should have its own dedicated, fused-branch circuit. For North America: 15 A or 20 A. For International: circuits sized to local and national codes. All Catalyst 4500 E-series AC-input power supplies require single-phase source AC. All AC power supply inputs are fully isolated. |
| Power supply output (data) | 84.7 A @ 12 V (data); 12.5 A @ 3.3 V (data) |
| Minimum software requirement | Cisco IOS Release 12.1(12c)EW |
| OUTPUT FAIL LED operation note | For proper operation of the OUTPUT FAIL LED, systems with single power supplies must have at least one fan tray assembly and one supervisor engine. Systems with dual power supplies must have at least one fan tray assembly, one supervisor engine, and one additional module. If these minimum configuration requirements are not met, a false power supply output fail signal can occur. |
| Power supply output capacity (PoE) | 800 W maximum each in redundant mode (PoE); 1333 W maximum in combined mode (PoE) |
| Power supply output capacity (data) | 1300 W maximum; 1050 W + 40 W in redundant mode (data); 1667 W maximum in combined mode (data) |
| Warranty | 3-Year Warranty |
Key Features
The Cisco Catalyst 4500 PWR-C45-1300ACV is a 1300W AC power supply designed to provide both data and Power over Ethernet (PoE) power for compatible Catalyst 4500 Series switches. It uses an autoranging 100–240VAC input with power-factor correction and supports up to 800W of PoE . The power supply provides 1300W maximum output in the specified operating configuration and supports Catalyst 4500 E-Series chassis including the 4503-E, 4506-E, 4507R-E and 4507R+E, with power management required for certain 4510R-E/R+E configurations.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco Catalyst 4500 1300W AC Power Supply Data & PoE – PWR-C45-1300ACV (PWR-C45-1300ACV) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco Catalyst 4500 1300W AC Power Supply Data & PoE – PWR-C45-1300ACV includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco Catalyst 4500 1300W AC Power Supply Data & PoE – PWR-C45-1300ACV compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PWR-C45-1300ACV.
