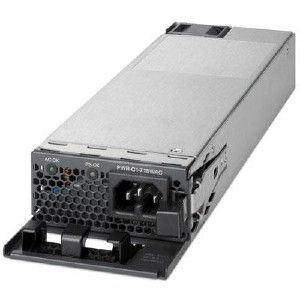

Cisco Catalyst 3850 715W AC Config 1 Secondary Power Supply PWR-C1-715WAC/2
Brand: Cisco · SKU: PWR-C1-715WAC/2 · MPN: PWR-C1-715WAC/2 · Category: Components
Cisco PWR-C1-715WAC/2 is a 715W AC Config 1 secondary power supply for Catalyst 3850 switches, providing reliable redundant power with 100–240VAC input.
Specifications
| MTBF | Calculated MTBF > 300,000 hours (Telcordia SR-332, Method 1, Case 3); demonstrated MTBF 500,000 hours (90% confidence level) |
|---|---|
| Model | PWR-C1-715WAC/2 |
| Weight | kg |
| Altitude | Up to 10,000 ft (3000 m), up to 45 °C |
| Input current | 10–5 A |
| LED indicators | "AC OK": input power to the power supply is OK; "PS OK": output power from the power supply is OK |
| Output ratings | -56 V at 12.8 A |
| Total output BTU | 2465 BTU/hr (715 W, Note: 1000 BTU/hr = 293 W) |
| Power cord rating | 13 A |
| Safety compliance | UL 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1; IEC 60950-1; CCC; CE Marking |
| Output holdup time | 16.7 ms minimum at 100 VAC |
| Storage temperature | -40 to 158 °F (-40 to 70 °C) |
| Operating temperature | 23 to 113 °F (-5 to 45 °C) |
| EMI and EMC compliance | FCC Part 15 (CFR 47) Class A; ICES-003 Class A; EN 55022 Class A; CISPR 22 Class A; AS/NZS 3548 Class A; BSMI Class A (AC input models only); VCCI Class A; EN 55024; EN 300386; EN 50082-1; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-6-1 |
| Power supply rated maximum | 715 W |
| Power-supply input receptacles | IEC 320-C16 (IEC 60320-C16) |
| Physical dimensions (H x W x D) | 1.58 x 3.25 x 12.20 in |
| Input-voltage range and frequency | 100–240 VAC, 50–60 Hz |
| Relative humidity (operating and nonoperating) | 5% to 90% noncondensing |
| Warranty | 3-Year Warranty |
Key Features
The Cisco PWR-C1-715WAC/2 is a 715W AC power supply designed specifically for compatible Cisco Catalyst 3850 Series switches. This Config 1 Secondary power supply is an ideal solution for network environments that require dependable power delivery, improved availability, and power redundancy. With a maximum rated output of 715W, it provides sufficient power for supported Catalyst 3850 configurations and helps maintain stable switch operation under demanding network workloads. The PWR-C1-715WAC/2 supports an autoranging input voltage of 100–240VAC and operates at 50–60Hz, making it suitable for a variety of electrical environments. Its modular plug-in design allows the power supply to be installed or replaced efficiently without requiring a complete switch replacement. When used as a secondary power module, it can provide power redundancy and help reduce the risk of network interruptions caused by a single power supply failure. Designed for compatible Cisco Catalyst 3850 models, the Cisco PWR-C1-715WAC/2 is suitable for enterprise networks, data centers, business infrastructure, and other professional networking deployments. It can be used as a replacement f
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco Catalyst 3850 715W AC Config 1 Secondary Power Supply PWR-C1-715WAC/2 (PWR-C1-715WAC/2) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco Catalyst 3850 715W AC Config 1 Secondary Power Supply PWR-C1-715WAC/2 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco Catalyst 3850 715W AC Config 1 Secondary Power Supply PWR-C1-715WAC/2 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PWR-C1-715WAC/2.
