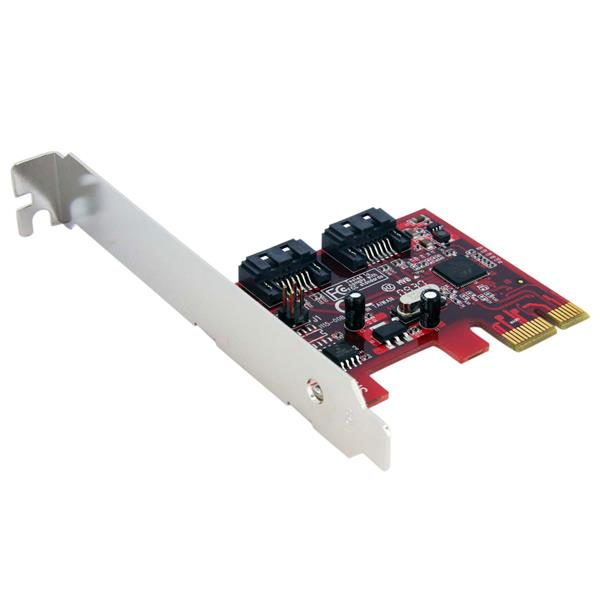

StarTech.com 2 Port SATA 6 Gbps PCI Express SATA Controller Card
Brand: StarTech.com · SKU: PEXSAT32 · MPN: PEXSAT32 · Category: Components
StarTech.com 2 Port SATA 6 Gbps PCI Express SATA Controller Card, PCIe, SATA, PCIe 2.0, Red, Silver, CE, FCC, Microsoft WHQL Certified, Marvell - 88SE9128. StarTech.com 2 Port SATA 6 Gbps PCI Express SATA Controller Card (part number PEXSAT32) is an enterprise components product available from Server Tech Central. Key specifications include depth 67.7 mm, width 64.5 mm, height 21.3 mm, weight 35 g, chipset Marvell - 88SE9128, internal Yes, raid levels 0, 1, certification CE, FCC, Microsoft WHQL Certified. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 67.7 mm |
|---|---|
| Width | 64.5 mm |
| Height | 21.3 mm |
| Weight | 35 g |
| Chipset | Marvell - 88SE9128 |
| Internal | Yes |
| RAID levels | 0, 1 |
| Certification | CE, FCC, Microsoft WHQL Certified |
| Package depth | 175 mm |
| Package width | 145 mm |
| Host interface | PCIe |
| Package height | 32 mm |
| Package weight | 126 g |
| Product colour | Red, Silver |
| Port multiplier | Yes |
| Drivers included | Yes |
| Output interface | SATA |
| Compliance certificates | RoHS |
| Expansion card standard | PCIe 2.0 |
| Data transfer rate (max) | 6 Gbit/s |
| Quick installation guide | Yes |
| Storage temperature (T-T) | -25 - 70 °C |
| Mounting brackets included | Yes |
| Harmonized System (HS) code | 84733020 |
| Warranty | 3-Year Warranty |
| Weight | 35 g |
| Dimensions | 64.5 mm x 67.7 mm x 21.3 mm |
Product Description
The PEXSAT32 2-Port PCI Express SATA 6 Gbps (SATA 3.0) Controller Card offers simple connectivity between a host computer and SATA 3.0 devices - a cost-effective solution for connecting high-speed storage, such as High RPM Hard Drives and Solid State Drives (SSD), which in turn allows for easier data backups and archiving. With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gbps, the adapter card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for external SATA 600 MB/s storage needs. The controller card is backward compatible with SATA 2.0 devices, providing the versatility to use older storage, and features support for RAID 0 and 1 modes as well as port multiplier capability with command-based and FIS-based switching for connecting multiple external hard drives to a host PC through a single SATA connection. A dual profile solution, the SATA 3.0 controller card includes a low profile/half-height bracket for installation in slimline or small form factor computer cases. The StarTech.com Advantage - Twice the speed of SATA II (3Gbps) - Ships with a full profile bracket install, low profile included
Key Features
StarTech.com 2 Port SATA 6 Gbps PCI Express SATA Controller Card. Host interface: PCIe, Output interface: SATA, Expansion card standard: PCIe 2.0. Product colour: Red, Silver, Certification: CE, FCC, Microsoft WHQL Certified. Chipset: Marvell - 88SE9128, Data transfer rate (max): 6 Gbit/s, RAID levels: 0, 1. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 64.5 mm, Depth: 67.7 mm, Height: 21.3 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2 Port SATA 6 Gbps PCI Express SATA Controller Card (PEXSAT32) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2 Port SATA 6 Gbps PCI Express SATA Controller Card includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2 Port SATA 6 Gbps PCI Express SATA Controller Card compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PEXSAT32.
